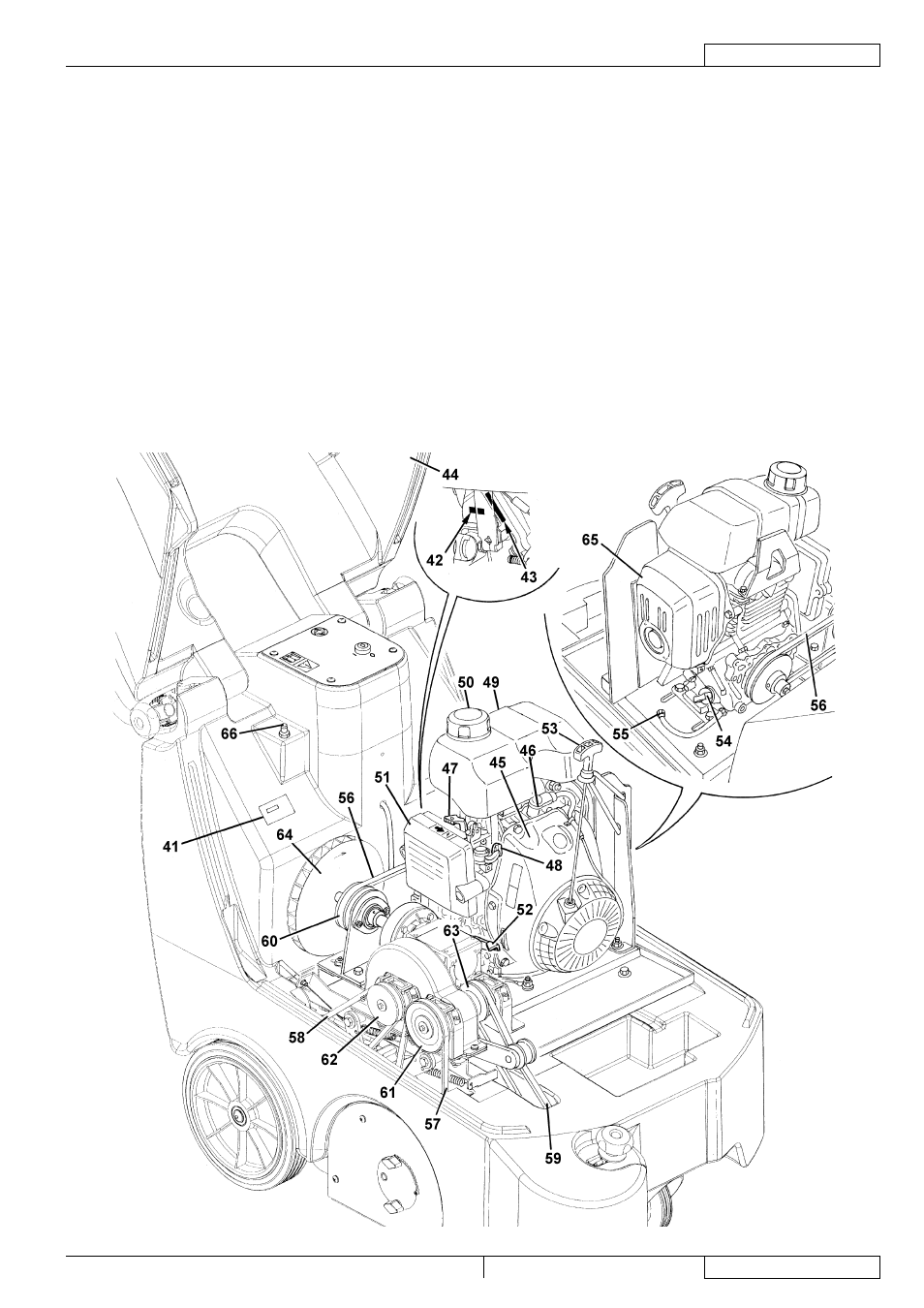

MACHINE STRUCTURE (Continues)
Serial number plate/technical data/conformity certifi cation
Engine model
Engine serial number
Hood (open)
Petrol engine
Spark plug
Choke lever
Fuel tap
Fuel tank
Fuel tank cap
Air fi lter
Throttle lever (adjusted by the Manufacturer: do not tamper
with it nor use it to change the engine speed!)
Engine pull-start cord handle
Engine oil fi ller/level check plug
Engine oil drain plug
Engine belt 41.
42.
43.
44.
45.
46.
47.
48.
49.
50.
51.
52.
53.
54.
55.
56.
Main broom belt
Driving belt
Side broom belt
Petrol engine drive pulley
Main broom drive pulley
Drive system drive pulley
Side broom drive pulley
Vacuum fan
Engine silencer
Hood safety switch 57.
