MACHINE DESCRIPTION

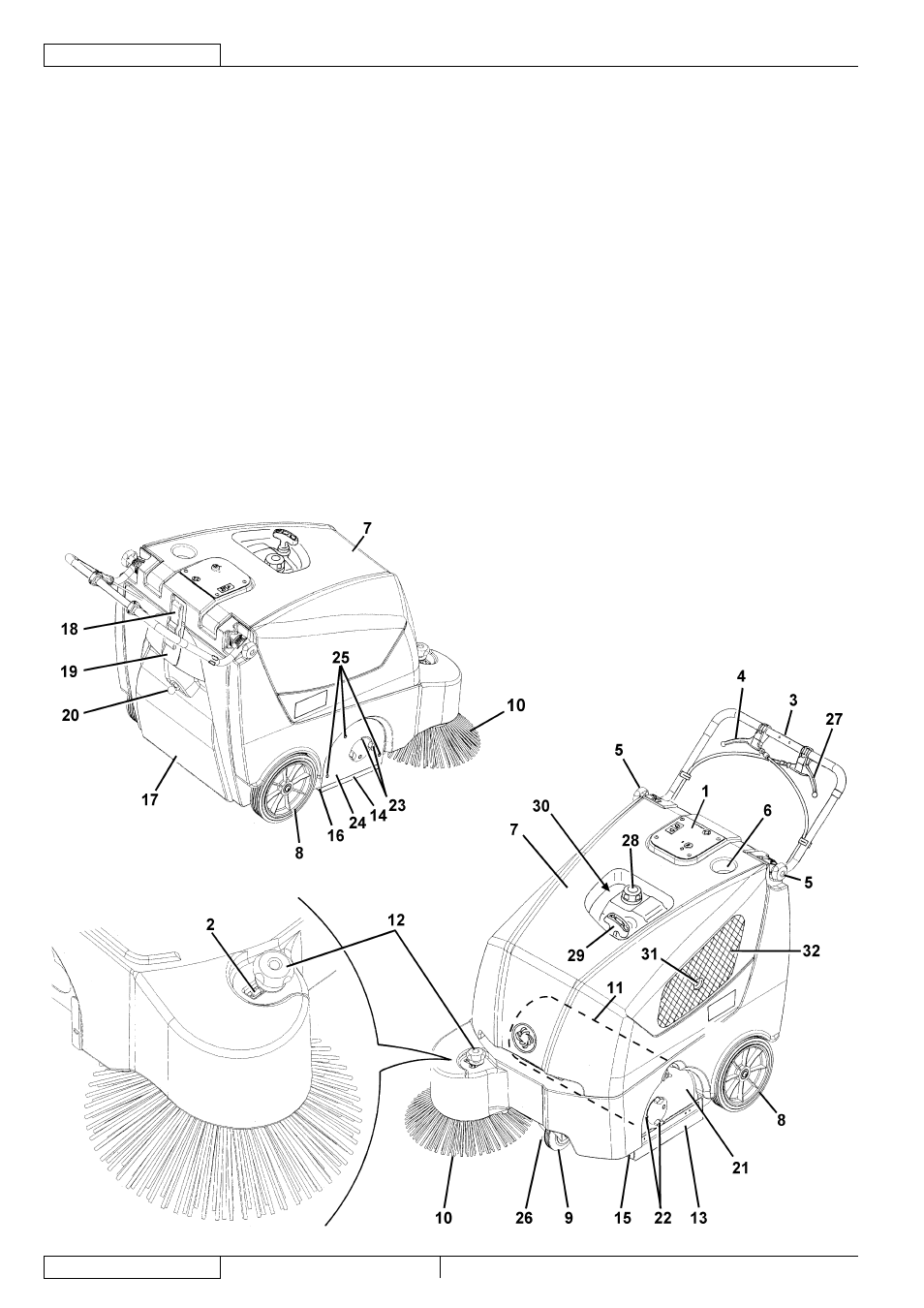

MACHINE STRUCTURE
Control panel
Lifted side broom fastener
Handlebar
Drive lever
Handlebar adjusting knobs
Can holder
Hood
Rear driving wheels on fi xed axle
Front steering wheel
Side broom
Main broom
Side broom lifting and height adjusting knob
Left side skirt
Right side skirt
Front skirt
Rear skirt
Debris container
Debris container hook
Debris container handle 1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19. Manual fi lter shaker handle
Main broom movable lid
Main broom height left adjuster
Main broom height right adjuster
Main broom right lid
Main broom right lid mounting screws
Pedal brake on front wheel (optional)
Front skirt lifting lever
Fuel tank cap
Engine pull-start cord handle
Fuel tap and engine choke lever compartment
Engine exhaust pipe
Engine ventilation grid 20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
