Introducing the Motherboard

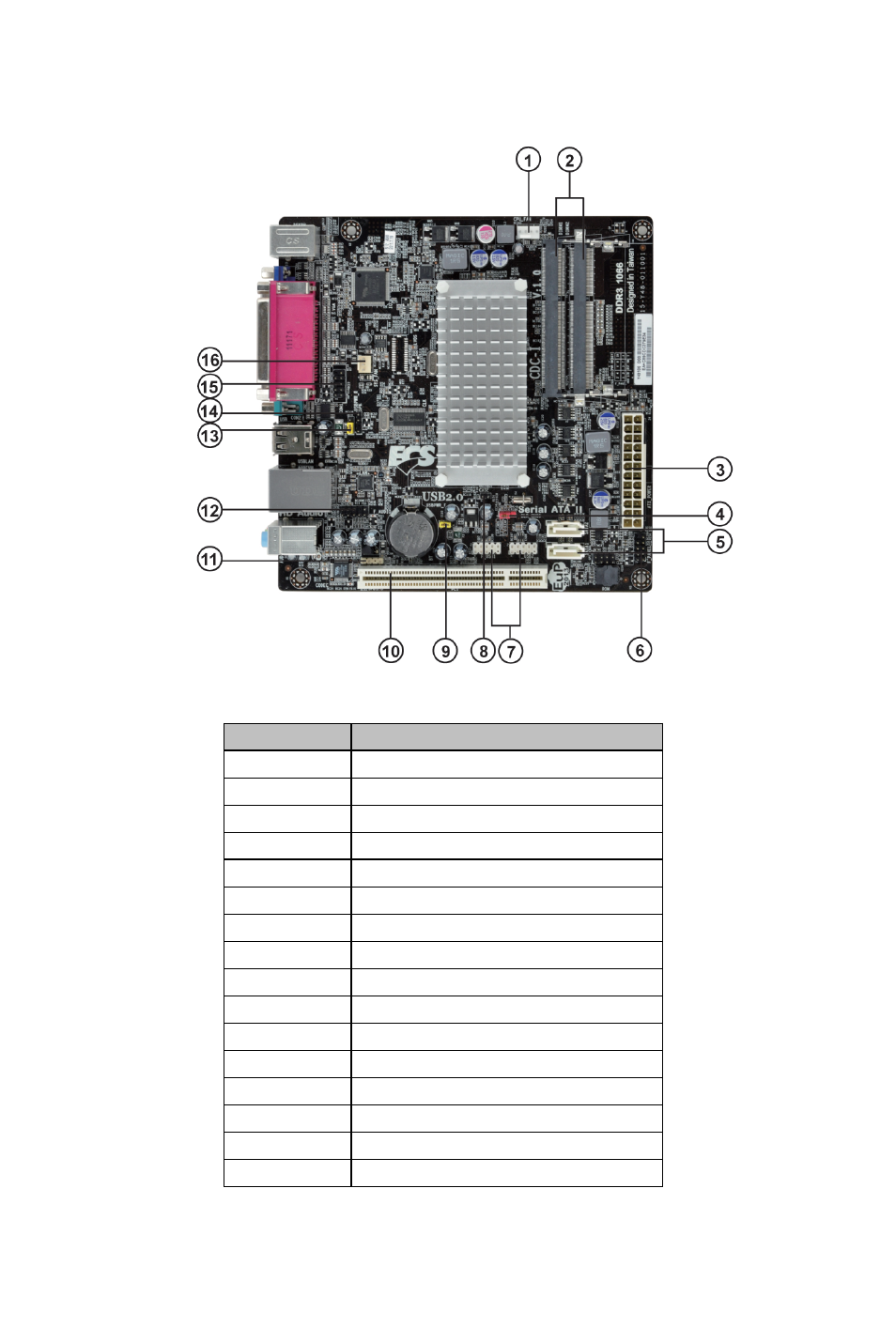

Motherboard Components
Table of Motherboard Components
This concludes Chapter 1. The next chapter explains how to install the motherboard.
LABEL COMPONENTS
1. CPU_FAN CPU cooling fan connector
2. DIMM_1~2 204-pin DDR3 SDRAM slots
3. ATX_POWER Standard 24-pin ATX power connector
4. CLR_CMOS Clear CMOS jumper
5. SATA1~2 Serial ATA connectors
6. F_PANEL Front panel switch/LED header
7. F_USB1~2 Front Panel USB headers
8. CASE Chassis detect jumper
9. USBPWR_F Front panel USB power select jumper
10. PCI 32-bit add-on card slots
11.SPDIFO SPDIF out header
12. F_AUDIO Front panel audio header
13. USBPWR_R Rear USB/PS2 power select jumper
14. SPK Speaker header
15. COM2 Onboard serial header
16. SYS_FAN System cooling fan connector
