700-701-100-02 System Configuration
UTU-701 and ETU-751 List 1 August 9, 2002 33
Configure Terminal Settings
1Type at the Config drop-down menu to display the Config Terminal Settings menu ( Figure 17 ).

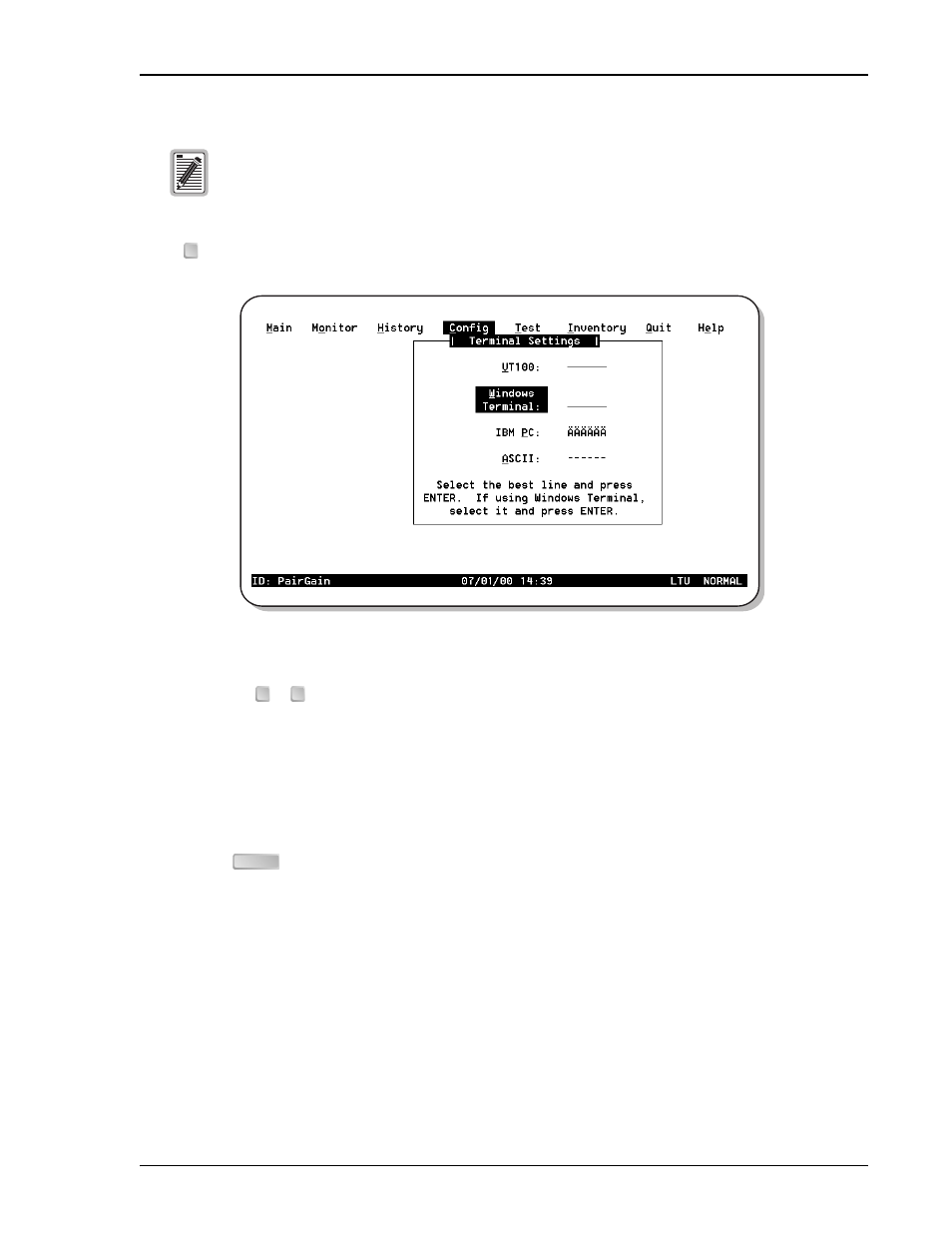

Figure 17. Config Terminal Settings Menu
2 Press the or key to highlight the selection that matches the terminal configuration (which should also
be the selection most clearly displayed on the monitor). The choices are:
• VT100
• Windows Terminal
• IBM PC
• ASCII
3 Press to confirm the selection.
The console screens use line drawing characters to enclose menu selections and dialog boxes.
Because not all maintenance terminals and terminal emulation programs adhere consistently to
the VT100 standard, the HDSL card allows you to adjust the display for best results on a given
terminal.
T
↑ ↓
ENTER
