700-701-100-02 Viewing Status
UTU-701 and ETU-751 List 1 August 9, 2002 55

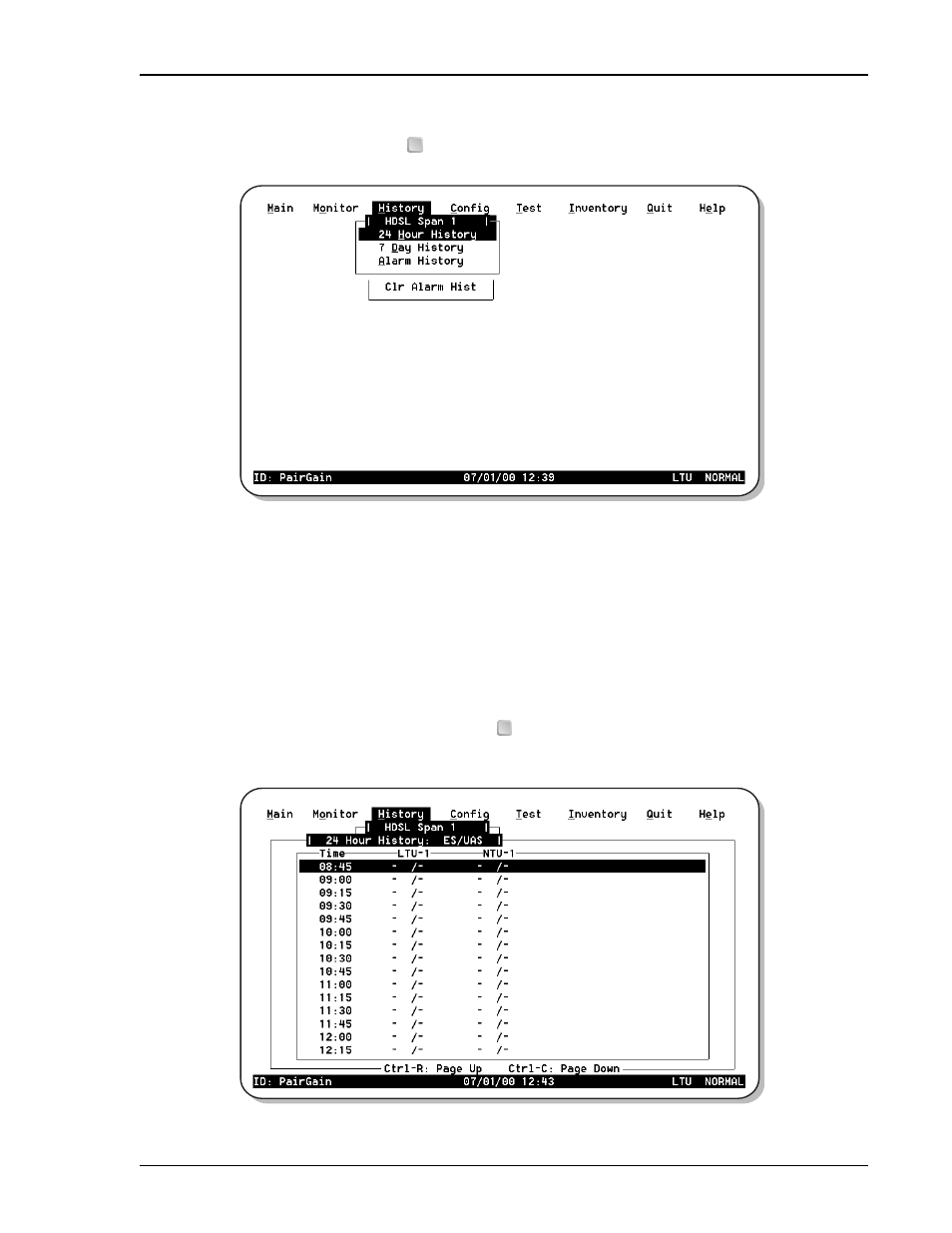

HDSL Span Performance History Screens
At the History menu ( Figure 34 ), type to select the History HDSL Span 1 menu ( Figure 38 ).
Figure 38. History HDSL Span 1 Menu
The History HDSL Span 1 menu contains three viewing options:
• 24 Hour History
• 7 Day History
• Alarm History
HDSL Span 1 24 Hour History Screen
At the History HDSL Span 1 menu ( Figure 38 ), type to select the 24 Hour History screen for HDSL
Span 1 ( Figure 39 ).
Figure 39. 24 Hour History Screen for HDSL Span 1
1
H
