OPERATION
AXTREME 03/09 Operation Section 3-51
©2009 Alamo Group Inc.
OPERA
T
ION

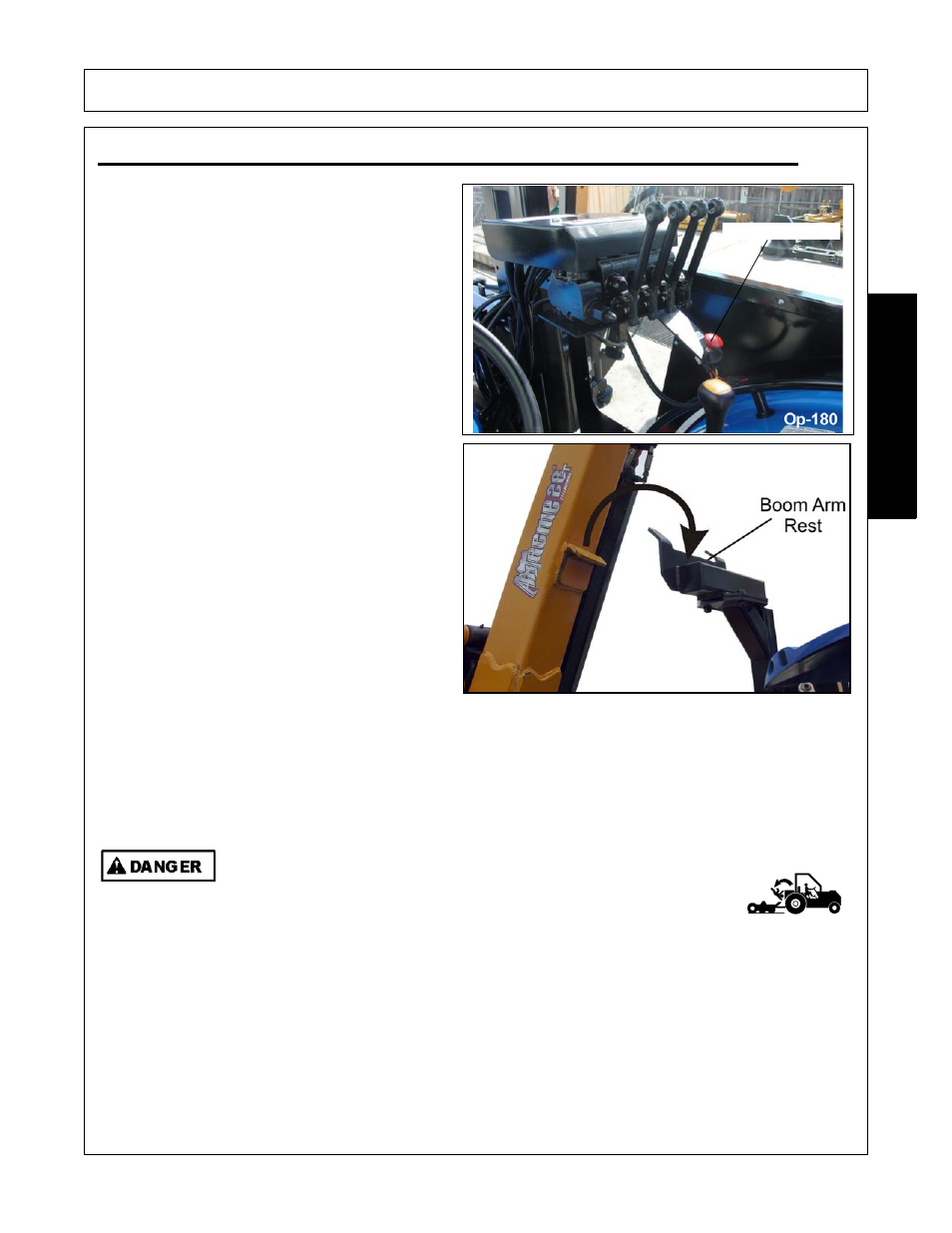

13.Placing Boom Arm on Boom Arm Rest - For Standard Equipment
Before transporting tractor between locations, idle
the tractor engine, disengage the attached head,
and wait for all head motion to come to a complete
stop. Place the boom in its storage cradle rest
support and then turn the joystick master switch to
the OFF position.
• Placing Boom Articulating Arm on Boom Arm
Rest
• Extend the dipper section approximately half
way out.
• Bring the Lift to its full height and carefully
swing the boom back until it is just positioned
over the Boom Rest. NOTE: There is a formed
“V” plate on the boom arm that fits onto the
boom arm rest.
• Lower the boom arm until this “V” rest on the
Boom Rest.
• Place the Master Switch in to the OFF position.
The boom is now in the transport position. To
remove the boom from the Boom Rest, pull the Lift
back and raise the boom about 6 inches. Then
Swing the boom around to the desired position.
OPS-B- 0013_D
ON-OFF Switch
Never allow children or other persons to ride on the Tractor or Implement.
Falling off can result in serious injury or death.
(SG-10)
