OPERATION
AXTREME 03/09 Operation Section 3-8
©2009 Alamo Group Inc.
OPERA
T
ION
Never run the Tractor engine in a closed building or without adequate ventilation. The
exhaust fumes can be hazardous to your health.
(SG-23)
Start tractor only when properly seated in the Tractor seat. Starting a
tractor in gear can result in injury or death. Read the Tractor operators
manual for proper starting instructions.
(SG-13)

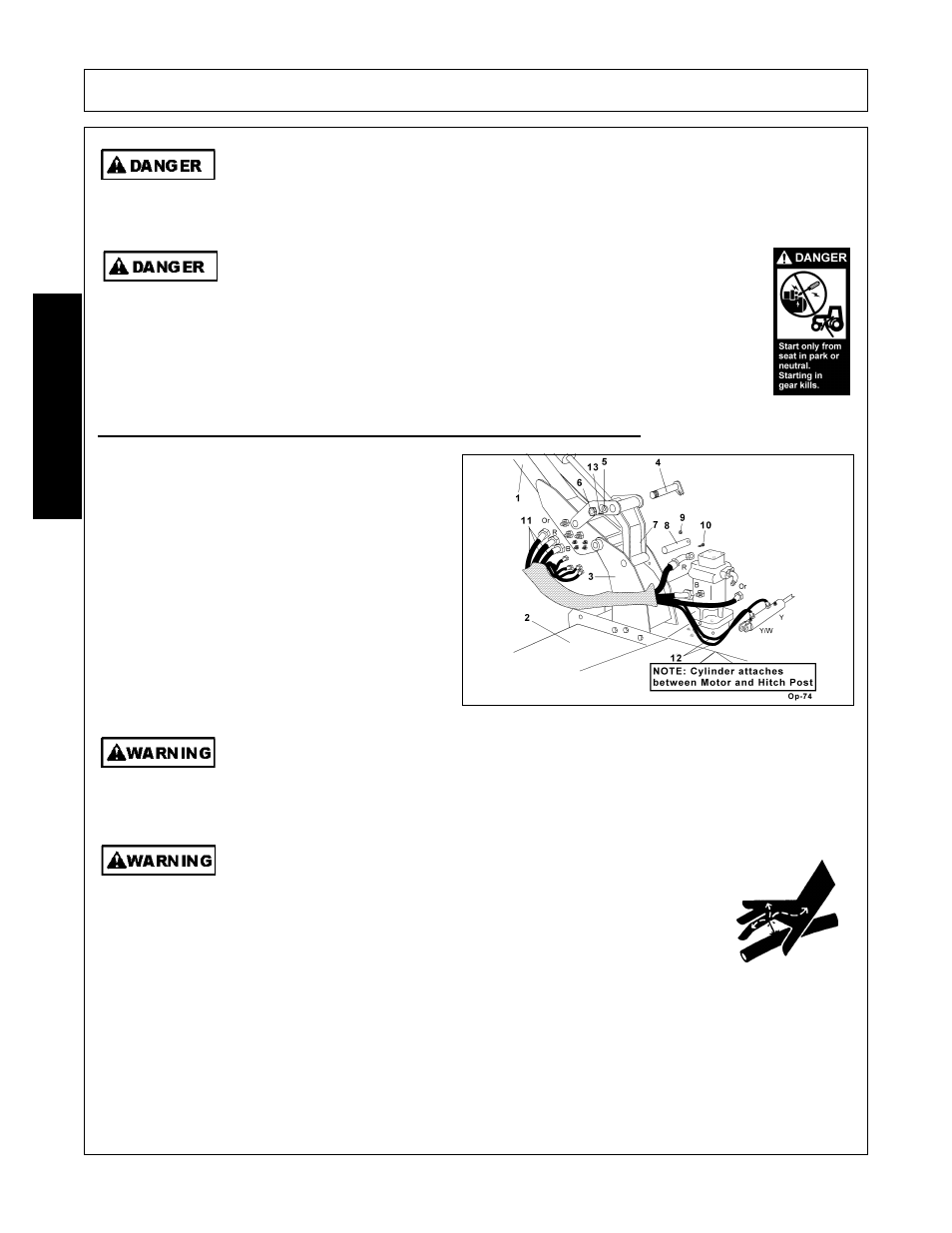

4.CONNECTING ATTACHING HEADS TO THE BOOM
1. Start by using a hoist to lower the boom(1) down
to the head(2). Align the Boom with the Head Hitch
Post(3), insert the upper hitch pin(4) through the
Dipper end of the boom and the Head Upper Hitch
Post. Attach with washer(5), nut(6) , and cotter
pin(13).
2. Then align the lower linkage(7) of the Boom and
insert the lower hitch pin(8) throught hitch post.
Attach with nut(9) and bolt(10).
3. Finally make sure all bolts, nuts, and pins are
tightened to recommended torque. OPS-B- 0004_C
Avoid contact with hot surfaces including hydraulic oil tanks, pumps, motors, valves and
hose connections. Relieve hydraulic pressure before performing maintenance or repairs.
Use gloves and eye protection when servicing hot components. Contact with a hot surface
or fluid can cause serious injury from burns or scalding.
(SG-34)
Do not operate this Equipment with hydraulic oil or fuel leaking. Oil
and fuel are explosive and their presence could present a hazard. Do
not check for leaks with your hand! High-pressure oil streams from
breaks in the line could penetrate the skin and cause tissue damage
including gangrene. To check for a hose leak, SHUT the unit ENGINE
OFF and remove all hydraulic pressure. Wear oil impenetrable gloves,
safety glasses and use Cardboard to check for evidence of oil leaks. If
you suspect a leak, REMOVE the HOSE and have it tested at a Dealer.
If oil does penetrate the skin, have the injury treated immediately by a
physician knowledgeable and skilled in this procedure.
(SG-15)
