For IDE Drive
Note: Configure your IDE hard
drive as Master device
Connect the 4-Pin Molex cable to
the power connector on the IDE
hard drive. Carefully place the IDE
hard drive with the label facing up
into the Diamond enclosure. Push
the hard drive toward the back
end to secure the drive connectors
onto the Diamond enclosure’s IDE
connector.

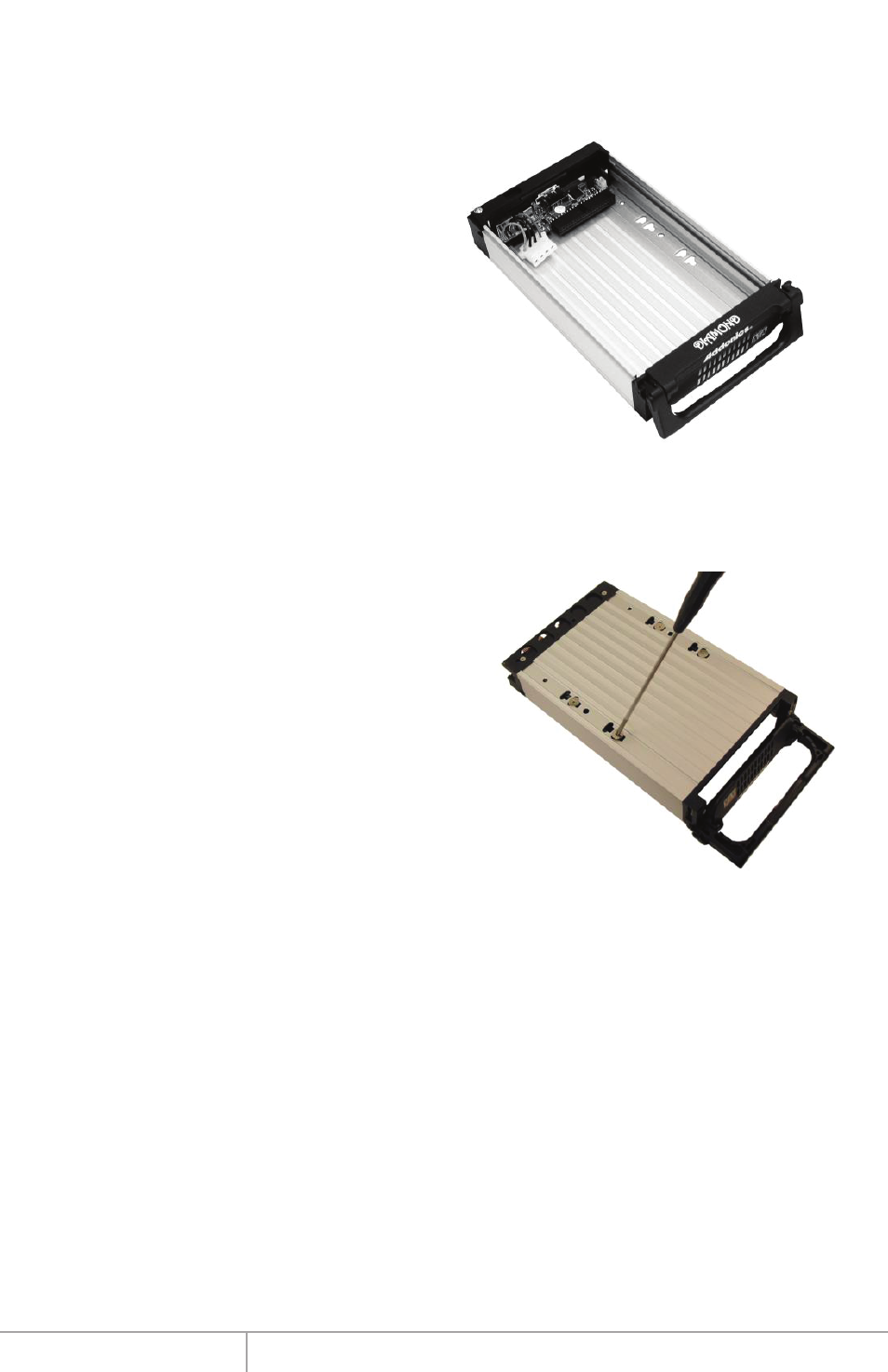

Step 4
Turn the Diamond enclosure over
with the hard drive mounting holes
facing up. Use the included flat
head screws to secure the hard
drive onto the bottom of the enclo-
sure and turn in the screw to the
“LOCK” position.
Step 5
Insert the enclosure into a cradle in
the duplicator and secure it in place
with the handle and turn the cradle's
lock to the LOCK position. Note: the
drive will not power up until the
cradle's lock is in the LOCK posi-
tion.
