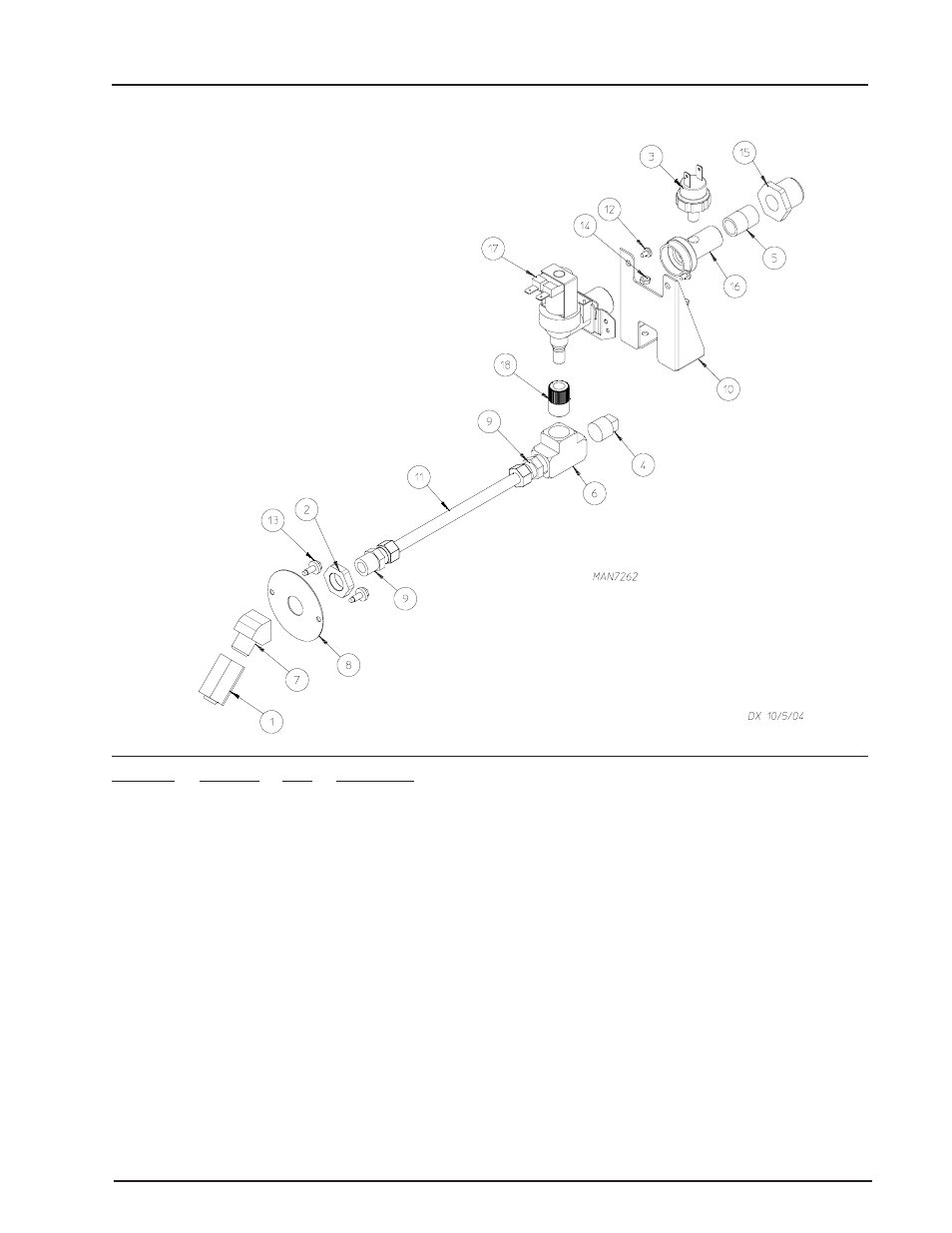

F.S.S. Solenoid Assembly

For Models Mfd. as of September 23, 2004

Illus. No.

Part No.

Qty.

Description

1

143581

1

3 GPM 3/8” F.P.T. Spray Nozzle

2

143303

1

3/8” N.P.T. Brass Locknut

3

136987

1

Pressure Switch

4

143251

1

3/8” M.P.T. Brass Plug

5

182579

1

3/8” Hex Nipple

6

143220

1

3/8” F.P.T. Brass Tee

7

143301

1

3/8” Brass 45° Elbow

8

311588

1

Sprinkler Head Mounting Plate

9

143208

2

3/8” Comp x 3/8” M.P.T. Brass Connector

10

311587

1

Valve Bracket

11

143108

1

20” Long Stainless Steel Flexible Tubing

12

154338

2

Machine Screw

13

150309

2

#10-16 x 1/2” Hex Head TEK Crimptite Screw

14

152001

2

#8-32 x 3/8” OD Hex Nut

15

142887

1

Bushing

16

143182

1

3/4” x 1/8” x 3/8” N.P.T. Brass Tee

17

165119

1

Water Inlet Valve

18

143183

1

7/16-20 x 3/8” N.P.T. Brass Adaptor
