American Dryer Corp. ML-122 - Manual (Page 23)

450570-4 Telephone: (508) 678-9000 / www.amdry.com 21
Illus. No. Part No. Qty. Description
1 132004 1 Transformer
2 131358 1 T.S.P.T. 120-amp - 24 VAC Relay
3 120706 1 Power Distribution Block
4 150521 2 1/4-20 x 2” Carriage Bolt
5 150309 8 #10-16 x 1/2” Hex Head TEK Crimptite Screw
6 150301 5 #8-18 x 7/16” Phillips Pan Head TEK Screw
7 152014 2 1/4-20 Free Spin Washer Nut
8 121010 2 L-170 Terminal Lug
9 310669 1 Box Cover
10 120768 3” 35 x 15mm Din Rail
11 120765 2 Din Rail End Stop
12 135499 1 25-amp/3 Pole Circuit Breaker
-- 842552 * Oven Relay Box Miscellaneous Wiring
* Not illustrated.

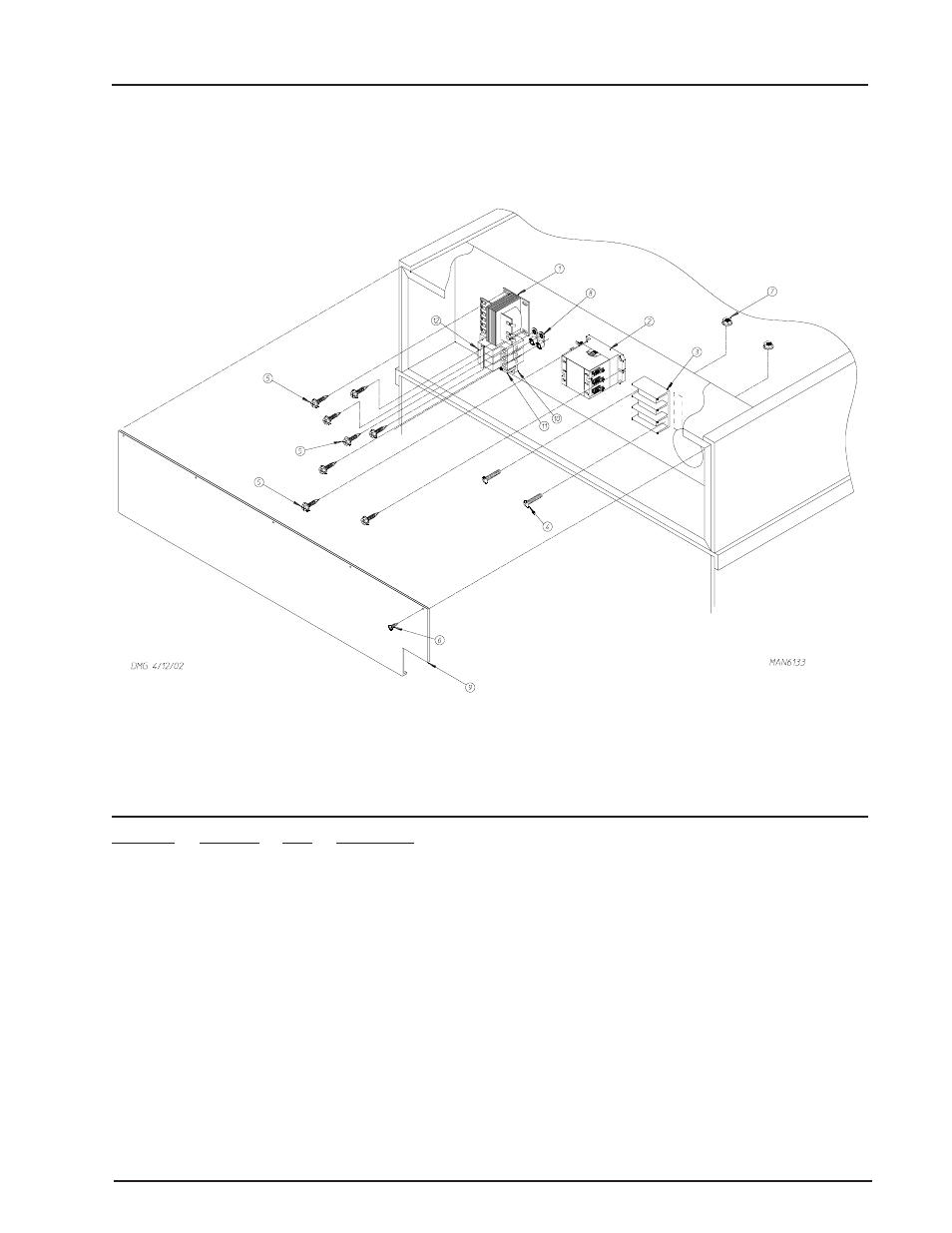

Oven Relay Box Assembly
