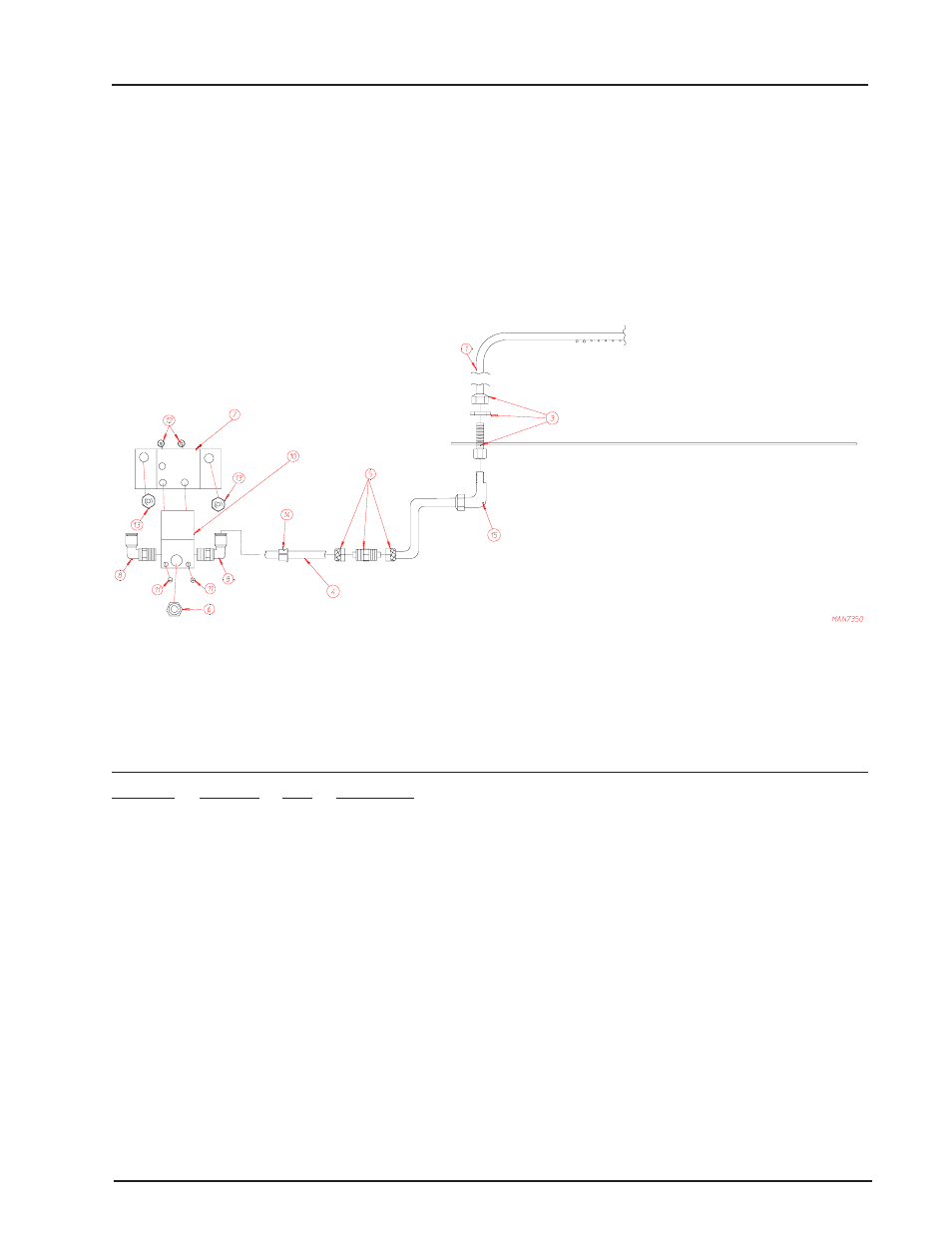

Air Jet Assembly

For Models Mfd. as of April, 9, 2004

Illus. No.

Part No.

Qty.

Description

1

859401

1

Air Jet Tubing II

2*
3

143259

1

Bulkhead Fitting, 1/4” Tube x 1/8” FPT

4

143115

1

1/4” Diameter Poly-Flo Tubing

5

143154

1

1/4” Poly Union

6

143250

1

1/8” M.P.T. Brass Plug

7

330987

1

Bracket

8

143149

2

1/4” Poly x 1/8” M.P.T. 90 Elbow°

9*
10

822734

1

Airjet Solenoid

11

150002

2

6-32 x 1Phillips RH-MS-PLTD

12

151000

2

6-32 Pal Nut Plated

13

152014

2

1/4-20 W/ 3/4 Frespin Washnut

14

121300

1

Open/Closed Bushing

15

143277

1

1/4” x 1/8” M.P.T. Elbow

* Not Shown
