Flush Mount Rack Kit Installation Procedure
9 of 10
53-1002127-04
Attaching rear brackets to the switch
Complete the following steps to attach the rear brackets to the switch.
1. Align the right rear bracket to the right rear of the switch and using two 8-32 x 5/16-in. screws, attach the
bracket to the switch as shown in
Figure 5
.
2. Align the left rear bracket to the left rear of the switch and using two 8-32 x 5/16-in. screws, attach the bracket
to the switch.
3. Tighten all the 8-32 x 5/16-in. screws to a torque of 15 in-lbs. (17 cm-kgs).

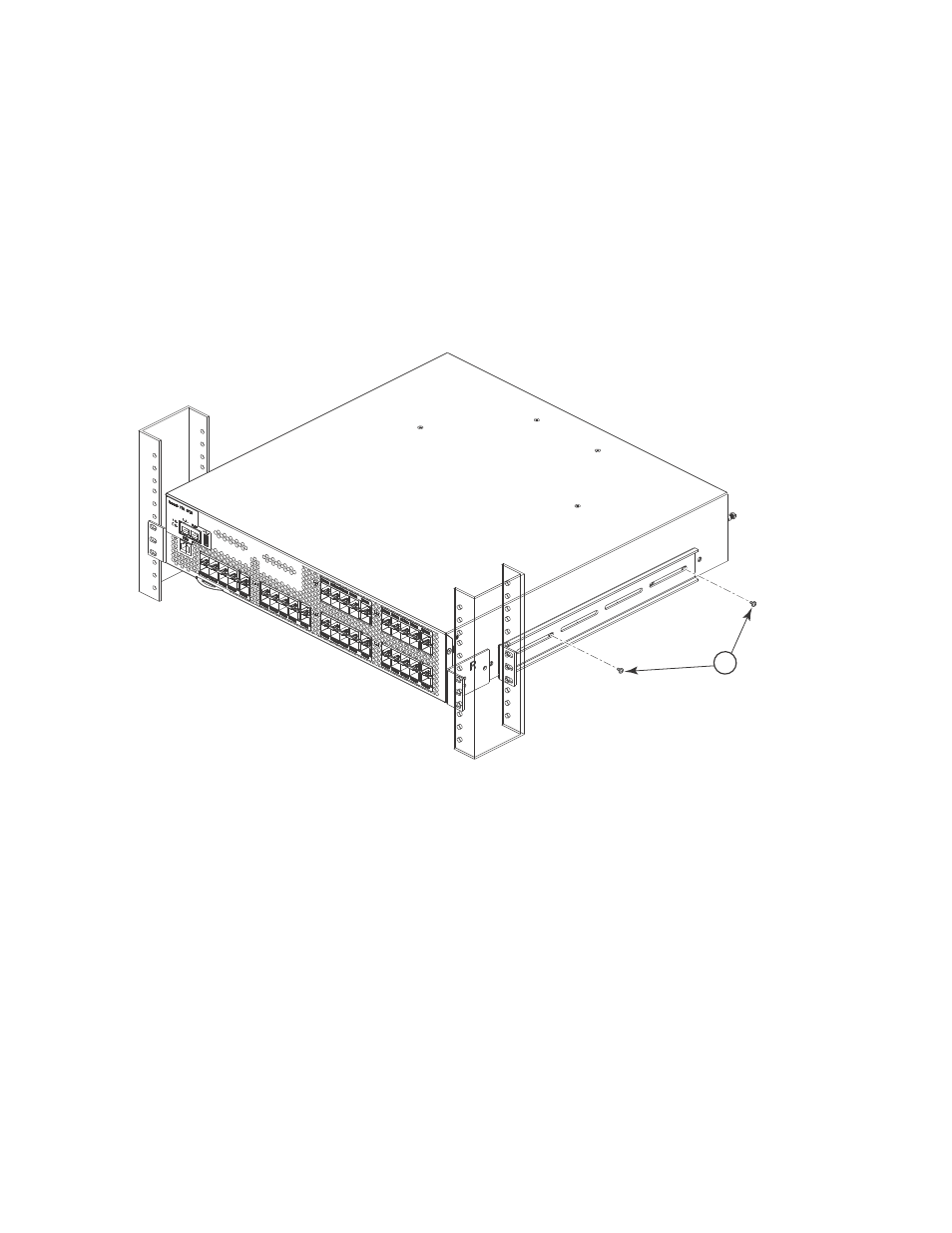

FIGURE 5
Attaching the rear bracket to the switch
3
Screws, 8-32 x 5/16-in., panhead Phillips
3
