-2-
Contact Rating (Resistive) Specifications
- 30VDC, 1A - Standby Power: 12VDC, 10mA
- 125VAC, 0.5A - Max Operating: 12VDC, 16mA

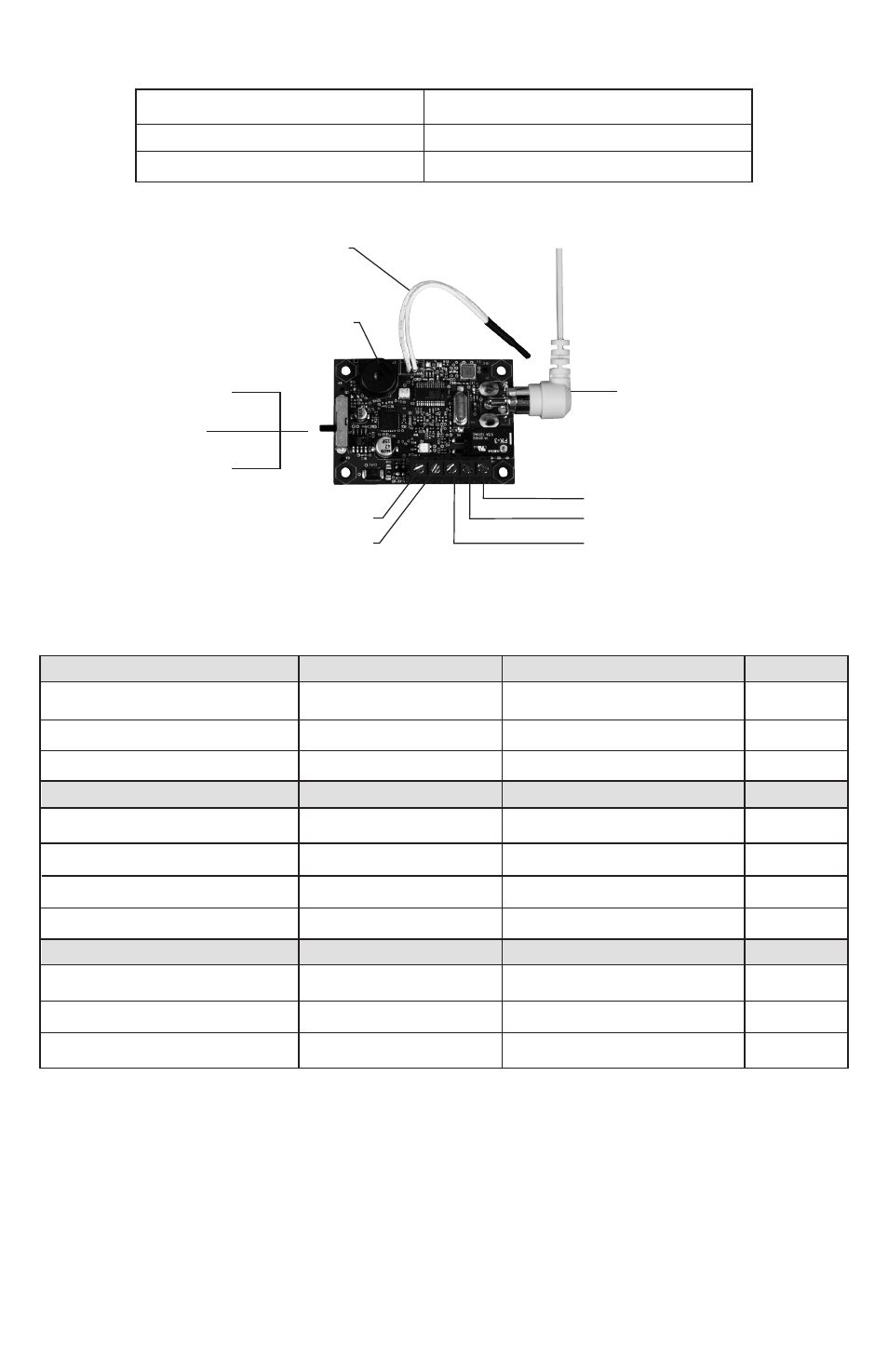

MODE
SWITCH POSITIONS
Program
Latching
Auto Restore
Antenna
Sounder
Yellow Reset
Leads
+
_
NC
COM
NO
PROGRAM SOUNDER LED RELAY
Power ON in program Start-Up tone will sound Alernating RED and GREEN Normal
Activate transmitter Will double beep Alternating RED and GREEN Normal
LATCHING SOUNDER LED RELAY
Power ON in latching (normal) Start-up tone will sound Flash GREEN every 2-3 seconds Normal
Activate transmitter Will double beep Solid RED Switched
Transmitters restores No sound Flashing RED Switched
AUTO RESTORE SOUNDER LED RELAY
Power ON in auto restore (normal) Start-Up tone will sound Flash GREEN every 2-3 seconds Normal
Activate transmitter Will double beep Solid RED Switched
Transmitter restores No sound Flash GREEN every 2-3 seconds Normal
Modes of Operation
{
12-24VDC
