STI 9702 User Manual
Installation of sti-9702 bay light damage stopper
Safety Technology International, Inc.
2306 Airport Road • Waterford, Michigan 48327-1209
Phone: 248-673-9898 • Fax: 248-673-1246
Toll Free: 800-888-4784 • E-mail: [email protected]
Web: www.sti-usa.com
Safety Technology International (Europe) Ltd.
Unit 49G Pipers Road • Park Farm Industrial Estate • Redditch
Worcestershire • B98 0HU • England • Tel: 44 (0) 1527 520 999
Fax: 44 (0) 1527 501 999 • Freephone: 0800 085 1678 (UK only)
E-mail: [email protected] • Web: www.sti-europe.com
SCREW
(4) PROVIDED
NUT
(4) PROVIDED
STI-9702 WIRE GUARD FITS REFLECTORS
NOS. WA-22, WD-22 AND BL-WA22
ALSO FITS REFLECTOR MOUNTING LEG KIT FULLY EXTENDED
NOTES: REFLECTOR ASSEMBLY NOT
SHOWN IN ANY VIEW. IF BULB REPLACEMENT
IS NECESSARY, GUARD DOES NOT HAVE TO BE REMOVED.
INSTALLATION INSTRUCTIONS
1. To simplify installation, hang 1/2 of guard on existing
die cast bosses on ballast housing as shown.
2. Insert the 1/4 - 20 screw and hand tight the two lower
brackets together.
3. Insert the two top bracket screws and tighten securely.
4. Tighten any remaining screws to complete installation.

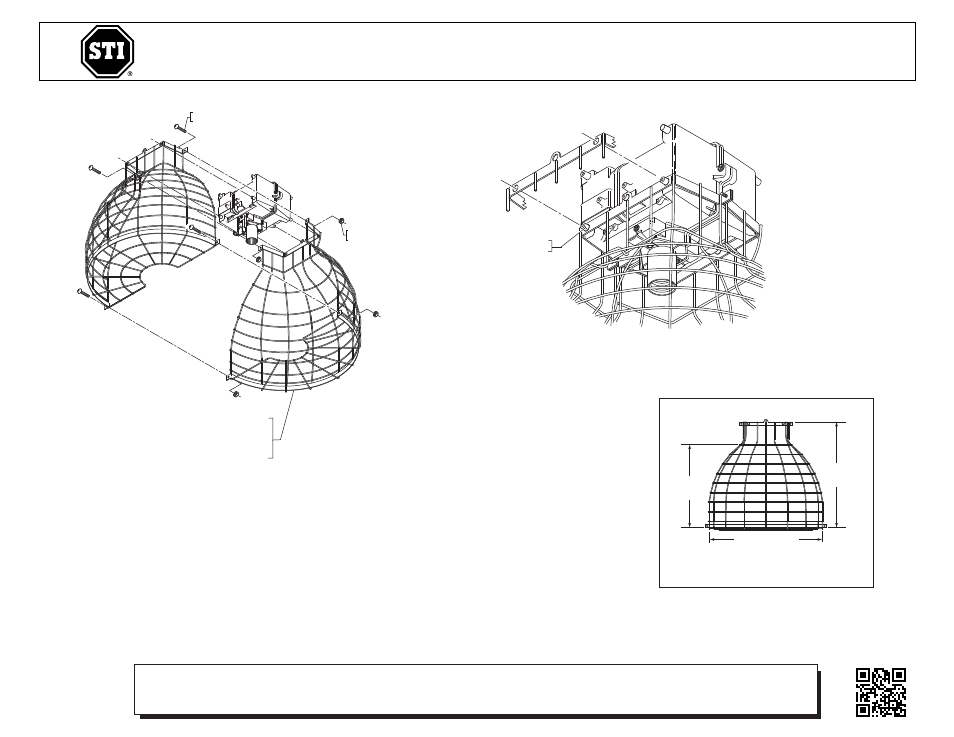

INSTALLATION OF STI-9702 BAY LIGHT DAMAGE STOPPER
®
All specifications and information shown were current as of publication, and are subject to change without notice.
9702IS JULY 2007
21.43 in.
(544mm)
16.87 in.
(428mm)
22.50 in. (571mm)
PRODUCT DIMENSIONS
S
EXISTING DIECAST BOSSES
ON BALLAST HOUSING
VIEW SHOWING INSTALLATION OF LOWER BRACKET
TO BALLAST HOUSING
S
R
NOTES:
REFLECTOR ASSEMBLY NOT
SHOWN IN ANY VIEW.
IF BULB REPLACEMENT IS NECESSARY,
GUARD DOES NOT HAVE TO BE REMOVED.
Electronic warranty form at www.sti-usa.com/wc14
