STI 9665 - Manual

Safety Technology International, Inc.
2306 Airport Road • Waterford, Michigan 48327-1209
Phone: 248-673-9898 • Fax: 248-673-1246
Toll Free: 800-888-4784 • E-mail: [email protected]
Web: www.sti-usa.com
Safety Technology International (Europe) Ltd.
Unit 49G Pipers Road • Park Farm Industrial Estate • Redditch
Worcestershire • B98 0HU • England • Tel: 44 (0) 1527 520 999
Fax: 44 (0) 1527 501 999 • Freephone: 0800 085 1678 (UK only)
E-mail: [email protected] • Web: www.sti-europe.com
INSTALLATION OF BEACON & SOUNDER CAGES
All specifications and information shown were current as of publication, and are subject to change without notice.
9614IS APRIL 2011

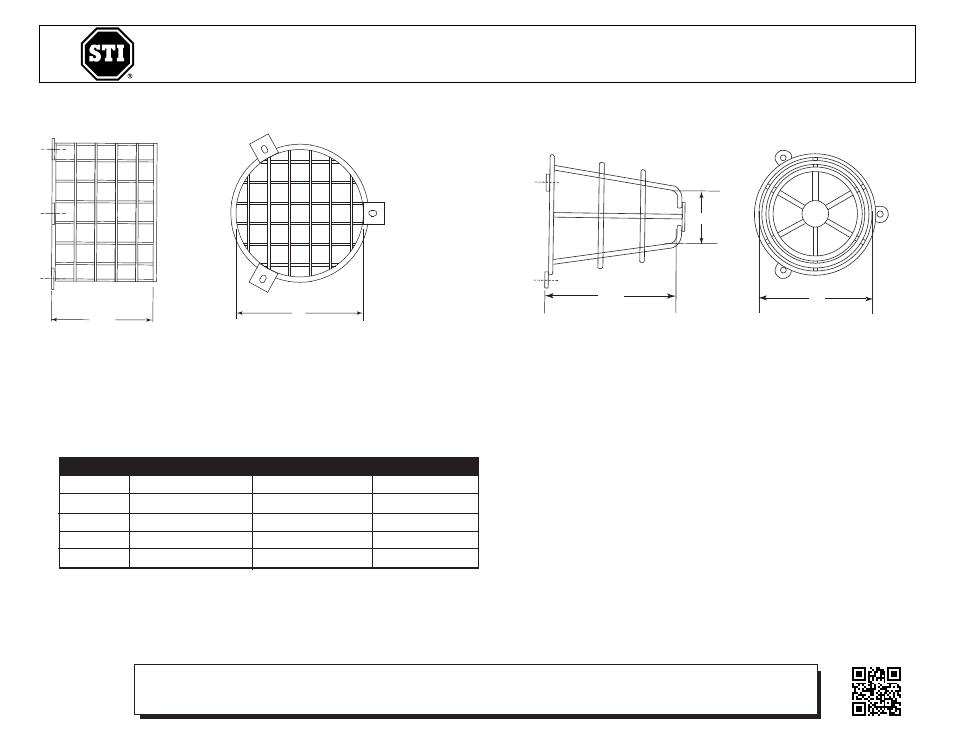

TOP VIEW SIDE VIEW
D
STI-9664
STI-9665
DEPTH
1
D2
FRONT VIEW
DEPTH
STI-9614
STI-9615
STI-9617
1 D 1
BOTTOM VIEW
STI-9614 6 in. (152mm) 7.8 in. (198mm) N/A
STI-9615 3.5 in. (88mm) 3.75 in. (95mm) N/A
STI-9617 5.0 in. (127mm) 5.9 in. (149mm) N/A
STI-9664 6.8 in. (173mm) 5.1 in. (130mm) 3.0 (76mm)
STI-9665 8.5 in. (214mm) 6.6 in. (167mm) 5.3 (134mm)
Model Depth D
1
D
2
INSTALLATION INSTRUCTIONS
1. Center the wire guard over existing appliance.
2. Mark and drill mounting holes.
3. Insert screws through clamps and tighten.
NOTE: Anchors and screws provided are for wall mounting. Other
fasteners may be required for mounting to metal enclosure or cabinet.
Electronic warranty form at www.sti-usa.com/wc14
