4. Remove back panel and check overflow hose and

drain hose for leaks.

5. Unlock the hinged lid and check the supply

dispenser hoses and hose connections.

6. Clean inlet hose filter screens:

a. Turn water off and allow valve to cool, if

necessary.

b. Unscrew inlet hose and remove filter screen.

c. Clean with soapy water and reinstall. Replace

if worn or damaged.

7. Tighten motor mounting bolt locknuts and

bearing bolt locknuts, if necessary.

8. Use compressed air to clean lint from motor.

9. Use compressed air to ensure that all electrical

components are free of moisture and dust.

10. Verify that the insulation is intact on all external

wires and that all connections are secure. If bare
wire is evident, call a service technician.

Quarterly

NOTE: Disconnect power to the machine at its
source before performing the quarterly
maintenance procedures.

1. Tighten door hinges and fasteners, if necessary.

2. Using a Teflon-based spray lube, lubricate the

door lock by applying the spray to the door lock
pin while turning the door handle.

3. Verify that the drain motor shield is in place and

secure, if so equipped.

4. Check all painted surfaces for exposed metal.

(Matching paint is available from the
manufacturer.)

If bare metal is showing, paint with primer or
with a solvent-based paint.

If rust appears, remove it with sandpaper or by
chemical means and then paint the affected
area with primer or with a solvent-based paint.

5. Clean supplied steam filter, where applicable.

Refer to Figure 12.

a. Turn off steam supply and allow time for the

valve to cool.

b. Unscrew Cap.

c. Remove Element and clean.

d. Replace Element and Cap.

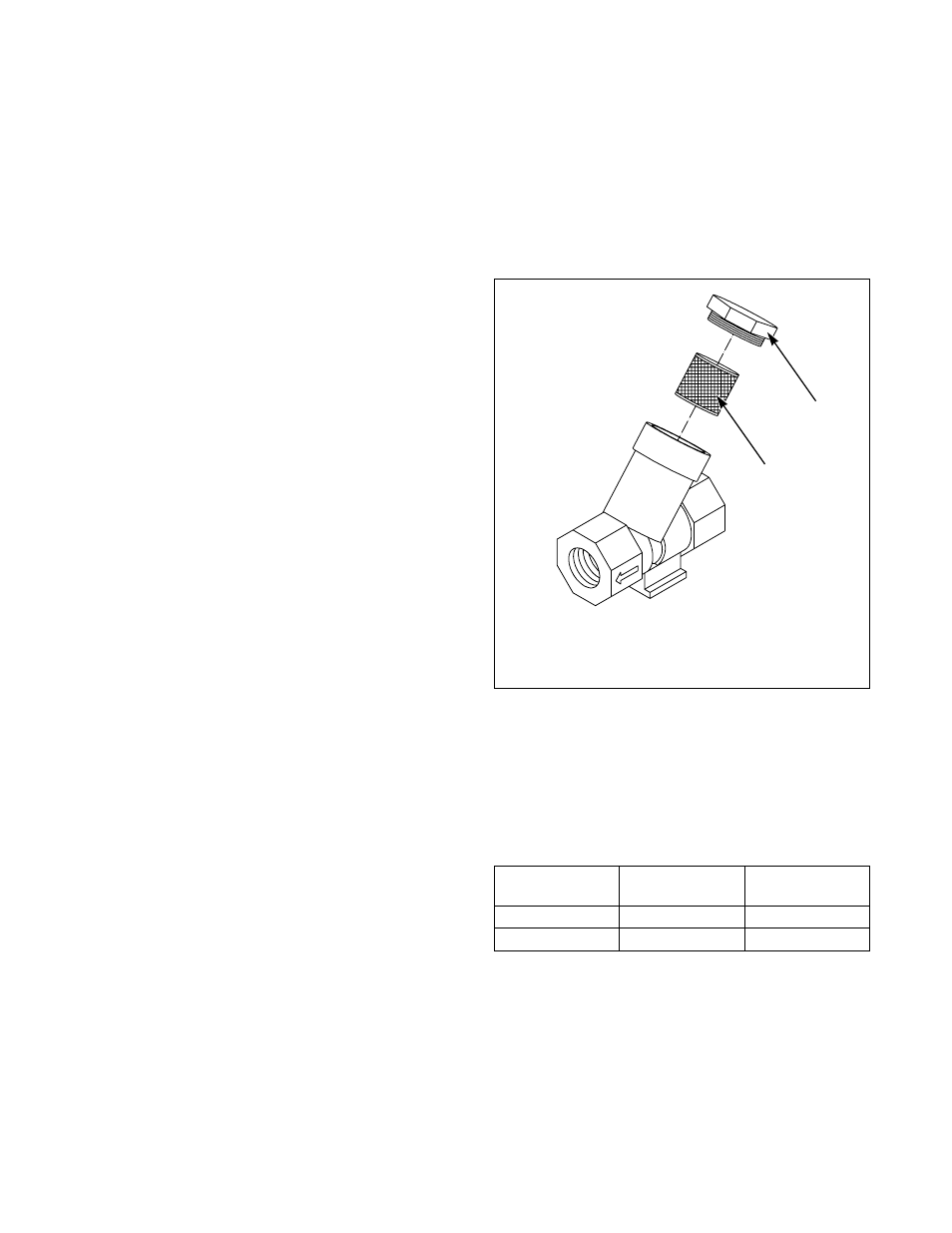

Figure 12

6. Measure the out-of-balance switch gap setting

and adjust it as needed. Refer to the Installation
Manual
, which is supplied with the machine.

7. Check the bearing mounting bolts to make sure

they are torqued properly. Refer to Table 3 for
specifications.

Table 3

H042I

1

Cap

2

Filter Element

Machine

Capacity

Bearing

Torque

125

Front

500 ft.-lbs.

125

Rear

140 ft.-lbs.

H042I

1

2
