Operation
Control Panel

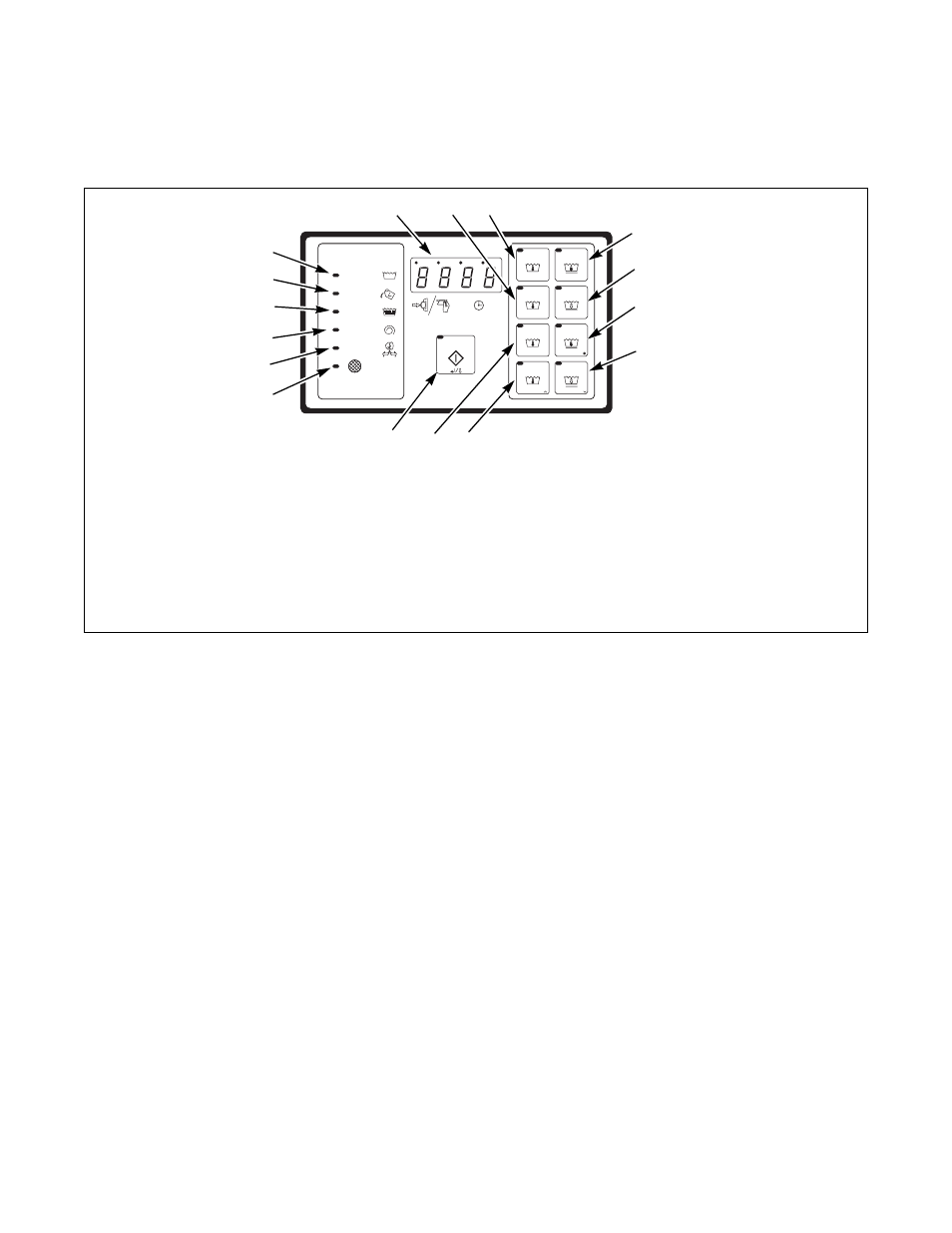

Figure 3 shows the control panel.
Figure 3
CHM482R
1 Cycle 1 9 START Keypad
2 Cycle 2 10 “Clean Filter” Indicator LED
3 Cycle 3 11 Door Open LED
4 Cycle 4/Up Edit 12 Spin Cycle LED
5 Cycle 5 13 Rinse Cycle LED
6 Cycle 6 14 Add Bleach LED
7 Cycle 7 15 Wash Cycle LED
8 Cycle 8/Down Edit 16 Main LED Display
CHM482R
