Maintenance
F232215
16
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
c. Verify that V-belts are properly tensioned by
applying a set force to the belt and measuring
the deflection to determine the belt tension.
Refer to Table 2 for the acceptable belt
tension ranges. Belt tension measurements
should be taken as close to the center of the
belt span as possible. Refer to Figure 10.

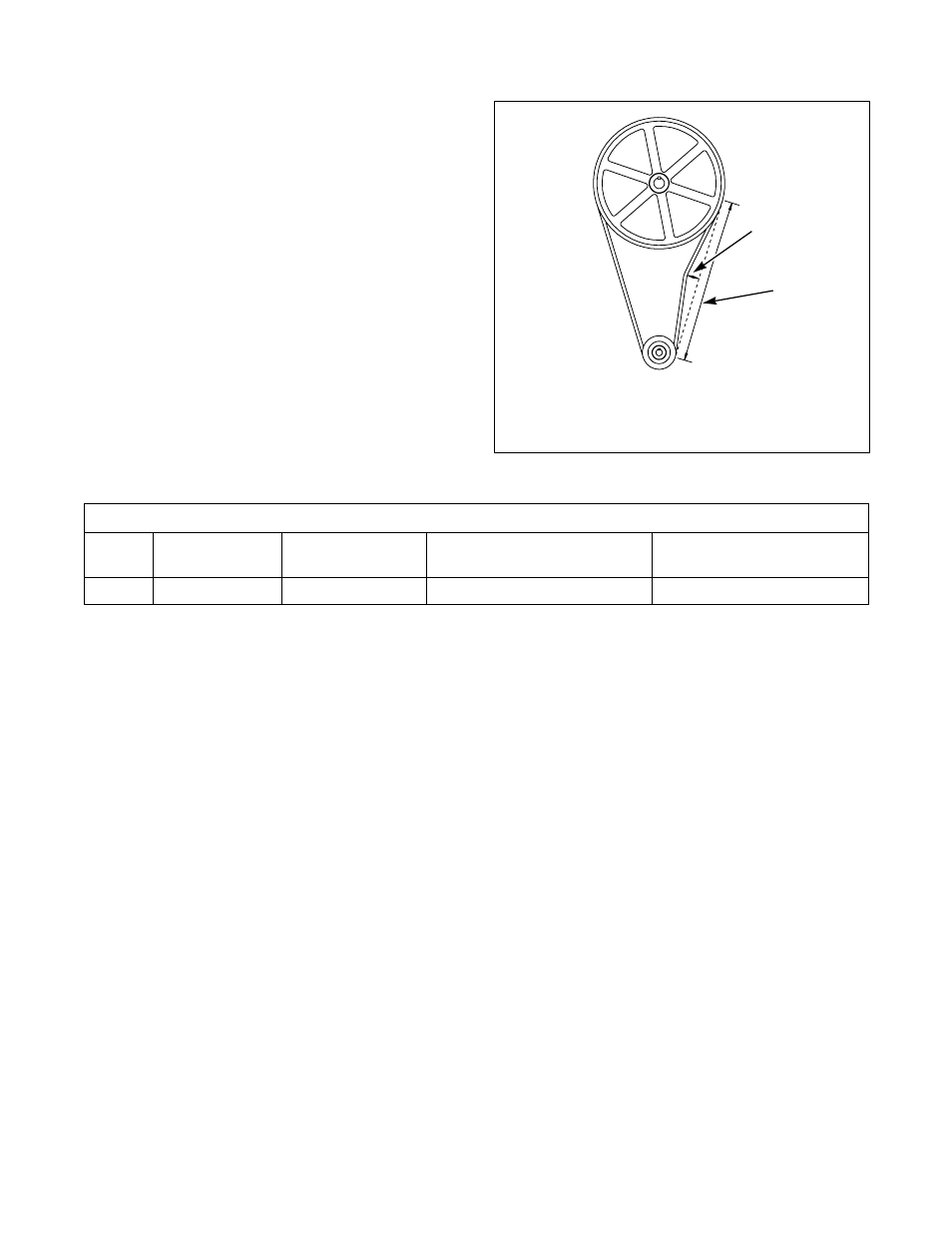

Figure 10
NOTE: Hoses and other natural rubber parts
deteriorate after extended use. Hoses may develop
cracks, blisters or material wear from the
temperature and constant high pressure they are
subjected to.
2. Check all hoses for any visible signs of
deterioration. Any hoses showing signs of
deterioration listed above should be replaced
immediately.
NOTE: All hoses should be replaced every five
years.
H039I
1
Deflection
2
Span Length
1
2
Belt Tension Testing
Model
Belt
Belt Span
Deflection Range
Force
Min – Max
125
Motor-Basket
50 in. (1270 mm)
.78 in. (20 mm)
5 – 7 lbs. (22 – 31 N)
Table 2
