- 3 -
Cont ...

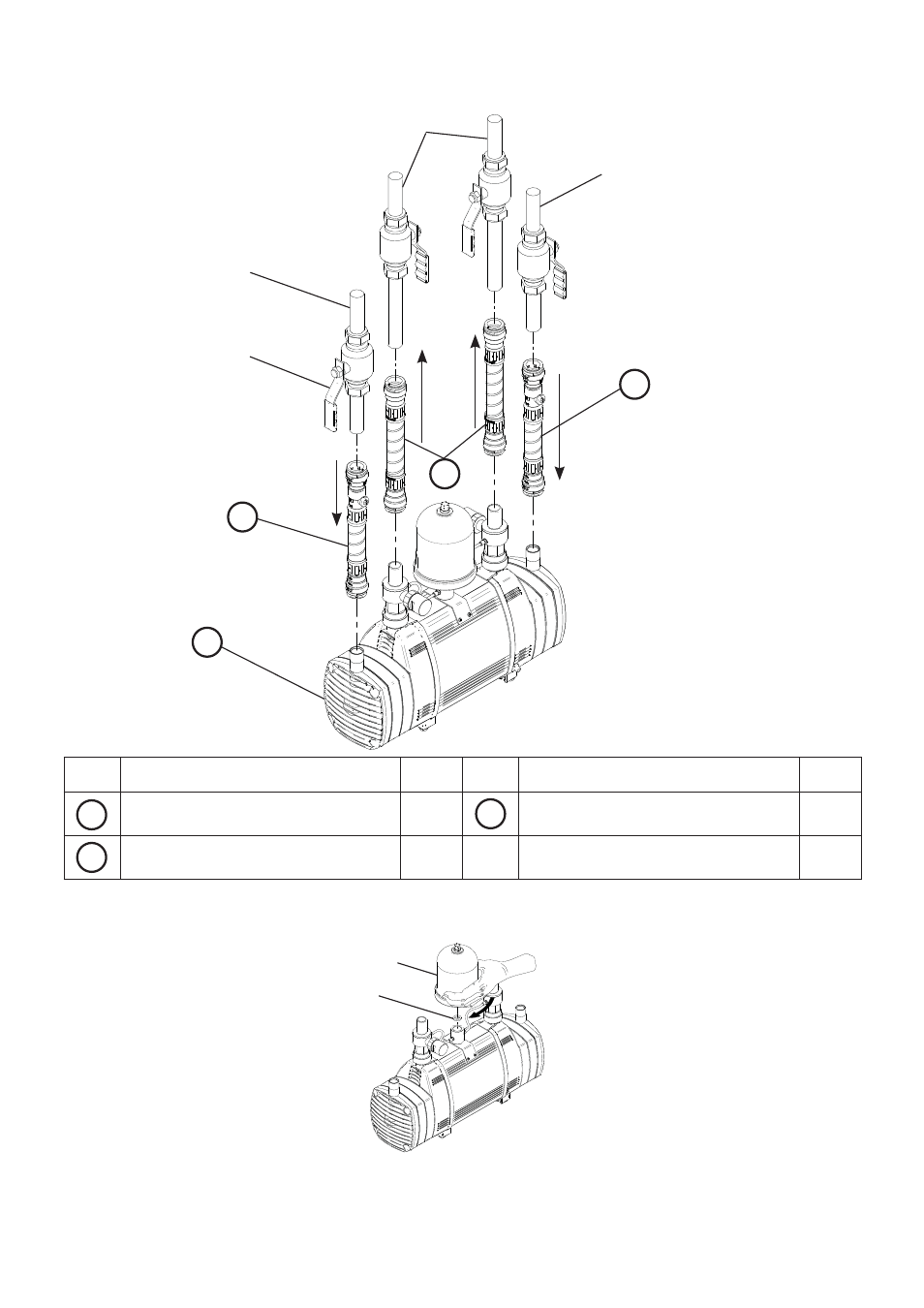

CHECKLIST
Item Description Qty Item Description Qty
Pump 1 Outlet hose only 2 (1)
Inlet hose with isolating valve 2 (1)
A
B
C
Your product may vary slightly from the picture above.
PRE-INSTALLATION CHECK
The pressure vessel (Fig. 2) is supplied in the box and should be fitted to the pump
complete with sealing washer on receipt to the pump assembly, hand tight only.
Note: Do not overtighten pressure vessel.
Fig. 2
Pressure vessel
Sealing Washer
Fig. 1
(Twin pump shown)
22 mm isolation valve
(non restrictive) (not
supplied).
To allow easy service
of pump
22 mm inlet pipework
22 mm inlet pipework
22 mm outlet pipework
A
B
B
C
IMPORTANT: With the
pump removed from its
packaging check for any
damage prior to installation.
If any damage is found
contact Techflow Products
immediately.
