- 4 -

Jet 40

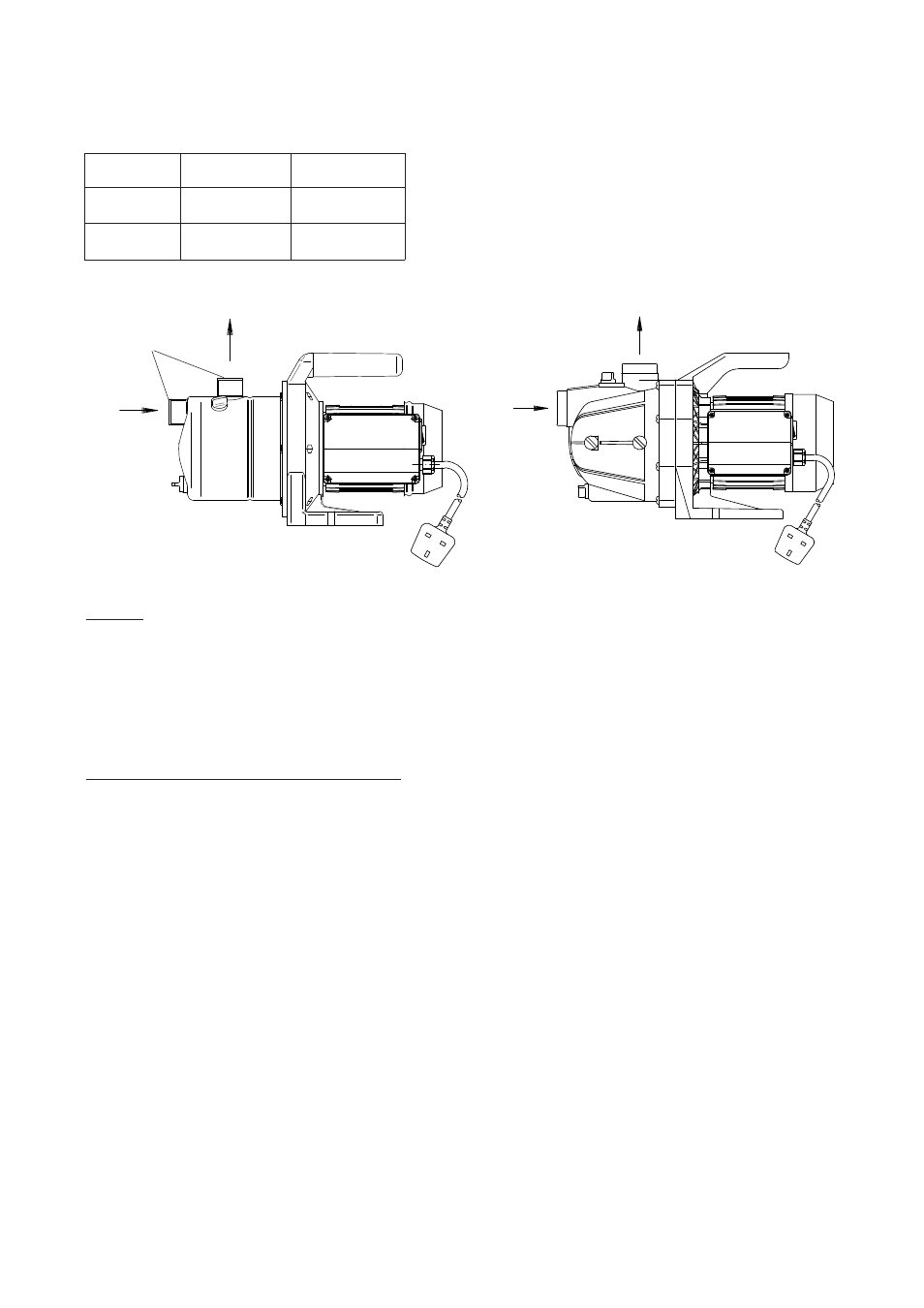

The inlet and outlet ports of this pump range are supplied with factory fitted port sealing

washers (Fig. 1).

This provides the option of sealing the connecting fittings on the end of the pump

threads with the aid of a flat sealing washer (not provided).

The other sealing option is via the thread by applying thread sealant tape or adhesive.

Optional Extra Pump Connections

A discharge hose elbow fitting and suction hose fitting, complete with hose and

footvalve and strainer are available as optional extras. The part numbers are as follows:

G1 discharge hose elbow assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26881
Suction hose assembly, 7 metres including footvalve/strainer . . . . . . . . . . . . 26880
It is important that the optional suction hose assembly is always used on suction lift

installations. For details and assembly order of these fittings see Figs. 3 & 4.

PUMP CONNECTIONS

Cont....

Model

Inlet

Outlet

Jet 40

G1 Male

G1 Male

Jet 90

G1 Female G1 Female

Outlet

Outlet

Inlet

Port
Sealing
Washer

Jet 40
Fig. 1

Inlet

Jet 90
Fig. 2
