- 7 -
Cont ...
Earthing
This appliance must be earthed via the supply cord, which must be correctly connected
to the earth point located in the terminal box.
Metallic pipework must have supplementary earth bonding where the continuity has
been broken by flexible hoses or plastic components. Adjacent suction and delivery pipes
should be fitted with earthing clamps to BS 951 and connected with earthing wire size
4 mm² (Fig. 2).
Certain installations may require additional earthing arrangements such as equipotential
bonding. Reference should be made to the relevant regulations concerning this subject to
ensure compliance.
Wiring of connection unit:
WARNING: This appliance must be earthed.
The wires in the mains lead are coloured in accordance with the following code:
Green and Yellow: Earth Blue: Neutral Brown: Live
As the colours of the wires in the mains lead of this appliance may not correspond
with the coloured markings identifying the terminals in your connection unit
proceed as follows:
The wire which is coloured green and yellow must be connected to the terminal in the
connection unit which is marked with the letter E or by the earth symbol: or coloured
green or green and yellow.
The wire which is coloured blue must be connected to the terminal which is marked with
the letter N or coloured black.
The wire which is coloured brown must be connected to the terminal which is marked
with the letter L or coloured red.
Fuses
The following fuse size should be used with the appropriate pump:
Model Fuse Size (AMPS)
All models 5

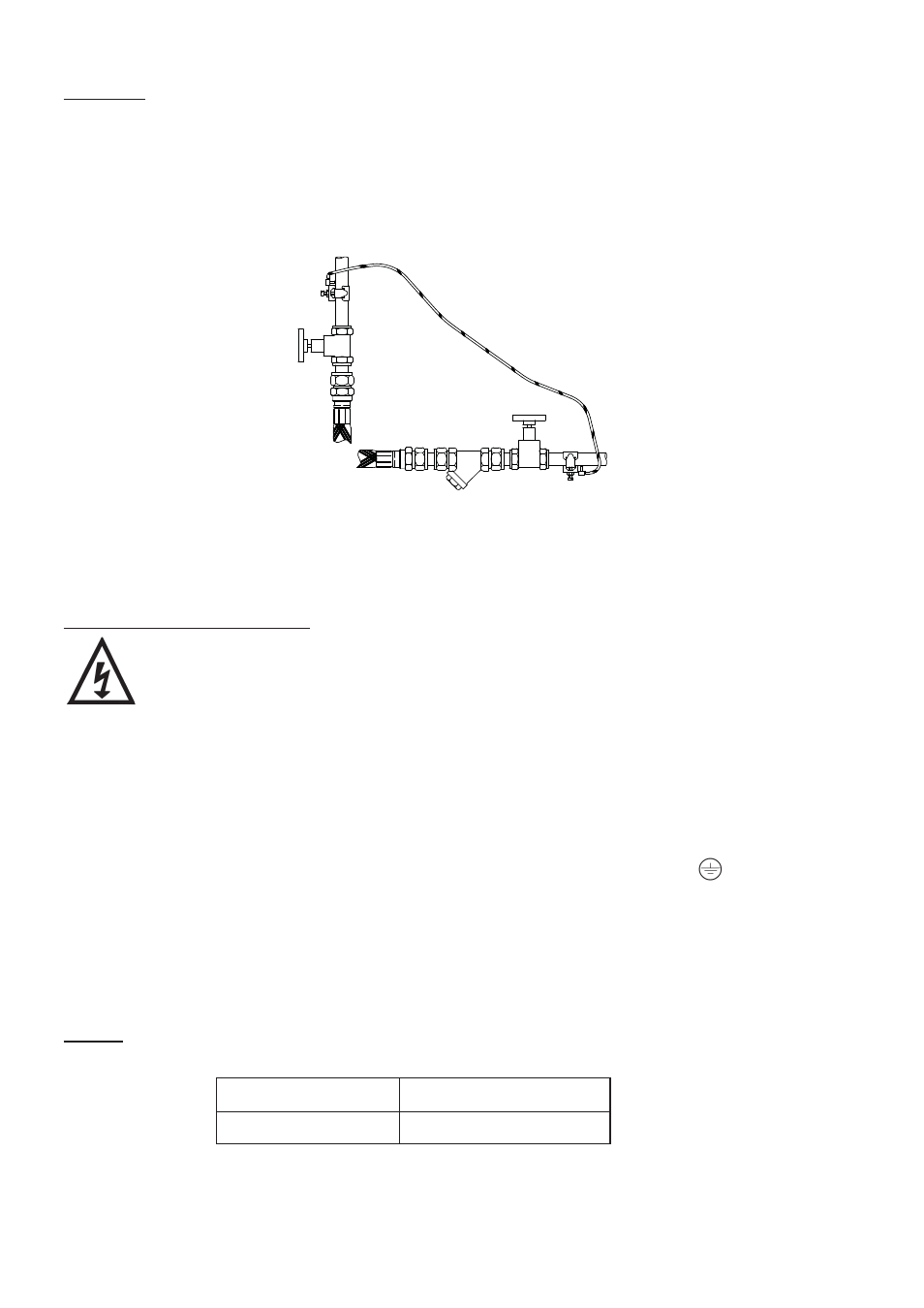

Fig. 2
Diagram of earth
continuity connection.
