Filter Replacement Kit
355-80025-00
(Includes Filters for Item 12, 14 and 15)
N
2
Caps (Qty=200) for Valve Stem
355-80026-00
VACUUM
STANDBY
FILL TIRE
STANDBY
FILL TIRE
TIRE
VACUUM TIRE
PRESSURE
AIR PRESSURE
TEST PORT
PURITY N2 N2
NTF-15
7
1
3
BALL VALVE
4
CONNECTED TO
5
8
9
10
6
11
2
16 17
12
15
14
13

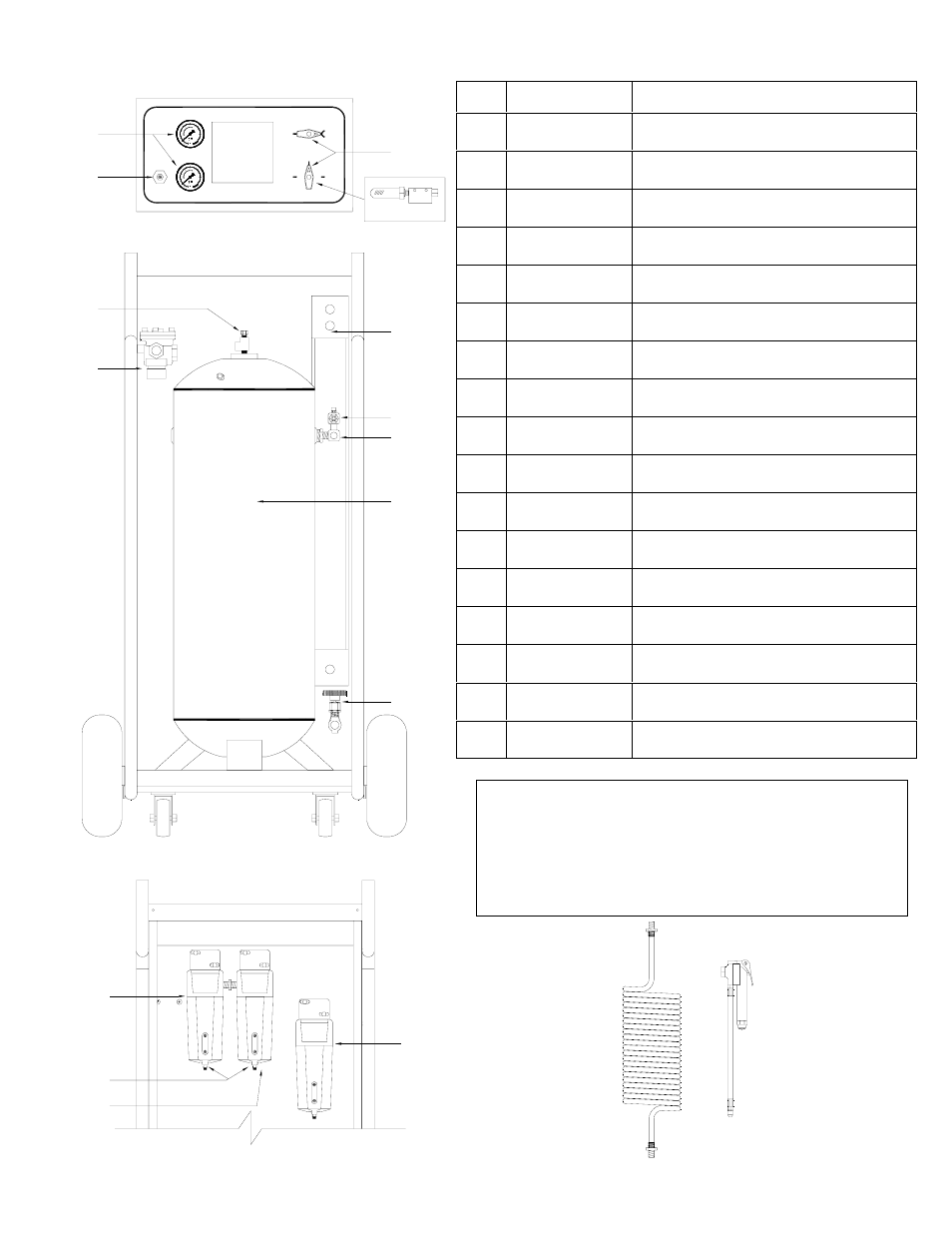

Parts Identification
Part Number Description
1 026-80379-00 2" Gauge 0-160 psig/bar 1/4MPT
2 023-80364-00 FTG Test Port 1/4 MPT X valve stem
3 022-80028-00 3-way ball valve 1/4 FPT (BHD)
4 026-80330-00 pneumatic vacuum pump
5 022-80005-00 relief valve 300 psi
6 026-80380-00 nitrogen membrane (small)
7 022-80130-00 pneumatic pilot valve
8 022-80131-00 adjustable pneumatic pressure switch
9 022-80128-00 check valve 3/8 FPT
10 026-80377-00 15 gal vertical air tank
11 022-80129-00 needle valve 3/8 FPT
12 026-80381-00 water filter w/auto drain
13 026-80386-00 auto drain float
14 026-80382-00 oil filter w/auto drain
15 026-80383-00 moisture filter
16 028-80362-00 coiled green hose
17 023-80362-00 air chuck
