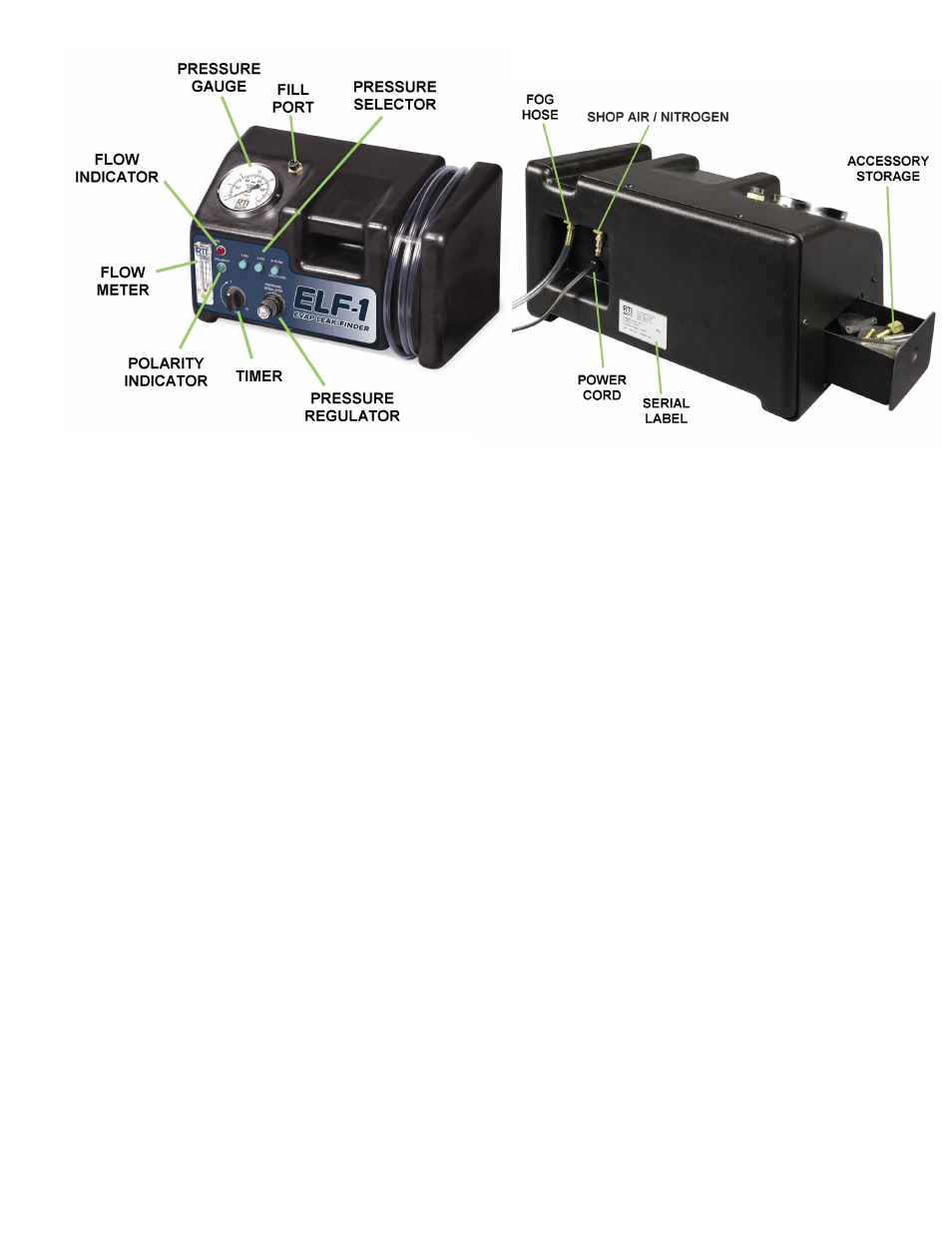

CONTROL DEVICES
Pressure Regulator: Regulates air pressure. Pull control knob away from cabinet and rotate in
desired direction. It locks in position when the control knob is released.
Timer: Power is turned on when the knob is turned clockwise to set a time period
up to ten minutes. It can be turned counterclockwise to turn off power.
Polarity Indicator: Illuminates when power cable is correctly connected to a 12 VDC battery.
Always ensure the red clamp is attached to the positive battery post and
the black clamp is attached to the negative battery post.
Flow Meter: A small floating ball indicates when air is flowing. The ball indicates a
positive air flow if there is a leak internally to ELF-1 during initial setup or
in the external system during a leak test.
Flow Indicator: Illuminates as the system under test is being pressurized when in the 1 or
3 PSI mode. Turns off when 1 or 3 PSI is attained. It will illuminate
continuously when in the 4-15 PSI mode.
Pressure Gauge: Indicates pressure of the air or fog.
Fill Port: Unscrew cap to fill ELF-1 with Fog Chemical.
Pressure Selector: Three selectors - 1, 3 or 4-15 PSI. Any one of the buttons can be pressed
to select the pressure of the fog during a leak test.
