Page 10
MAKE SURE THE ENGINE IS OFF
Fill Radiator
Fill Radiator
1. Turn all panel valves to the Home position.

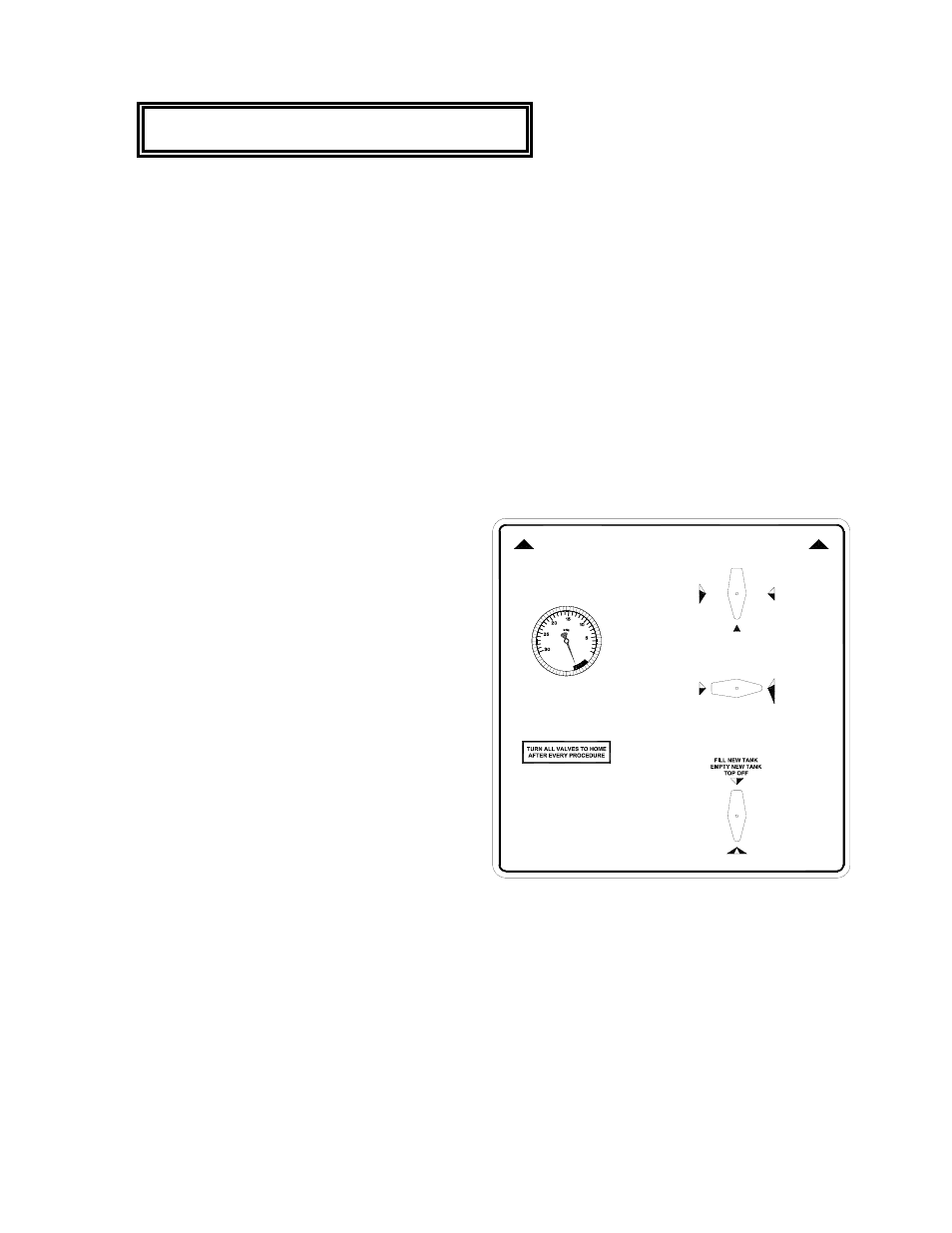

2. Turn all panel valves to the Fill Radiator position shown in the illustration below, this orientation
can also be obtained by positioning the panel valves toward the magenta highlights closest to
each valve. Verify that the Cone Adapter Valve is open.
3. New coolant is automatically pulled out of the VCX New Coolant Tank and into the vehicle
radiator through the clear hose.
NOTE: IF THE CONE ADAPTER BECOMES DISLODGED BEFORE YOU CAN BEGIN THIS
PROCESS YOU MUST RERUN THE EMPTY RADIATOR FUNCTION, WITHOUT
STARTING THE VEHICLE, TO REGAIN THE VACUUM NEEDED TO FILL THE VEHICLE
COOLANT SYSTEM.
4. Once the coolant stops moving through the clear hose turn all of the panel valves back to the
Home position and remove the Cone Adapter from the radiator.
5. Turn all valves to the Home position.
6. Close the Cone Adapter Valve.
VCX-1
HOME
NEW COOLANT
TOP OFF
HOME
EMPTY WASTE TANK
EMPTY RADIATOR
HOME
(PRESSURE)
EMPTY WASTE TANK
EMPTY NEW TANK
WASTE COOLANT
FILL RADIATOR
TOP OFF
EMPTY NEW TANK
FILL NEW TANK
(VACUUM)
EMPTY RADIATOR
FILL NEW TANK
