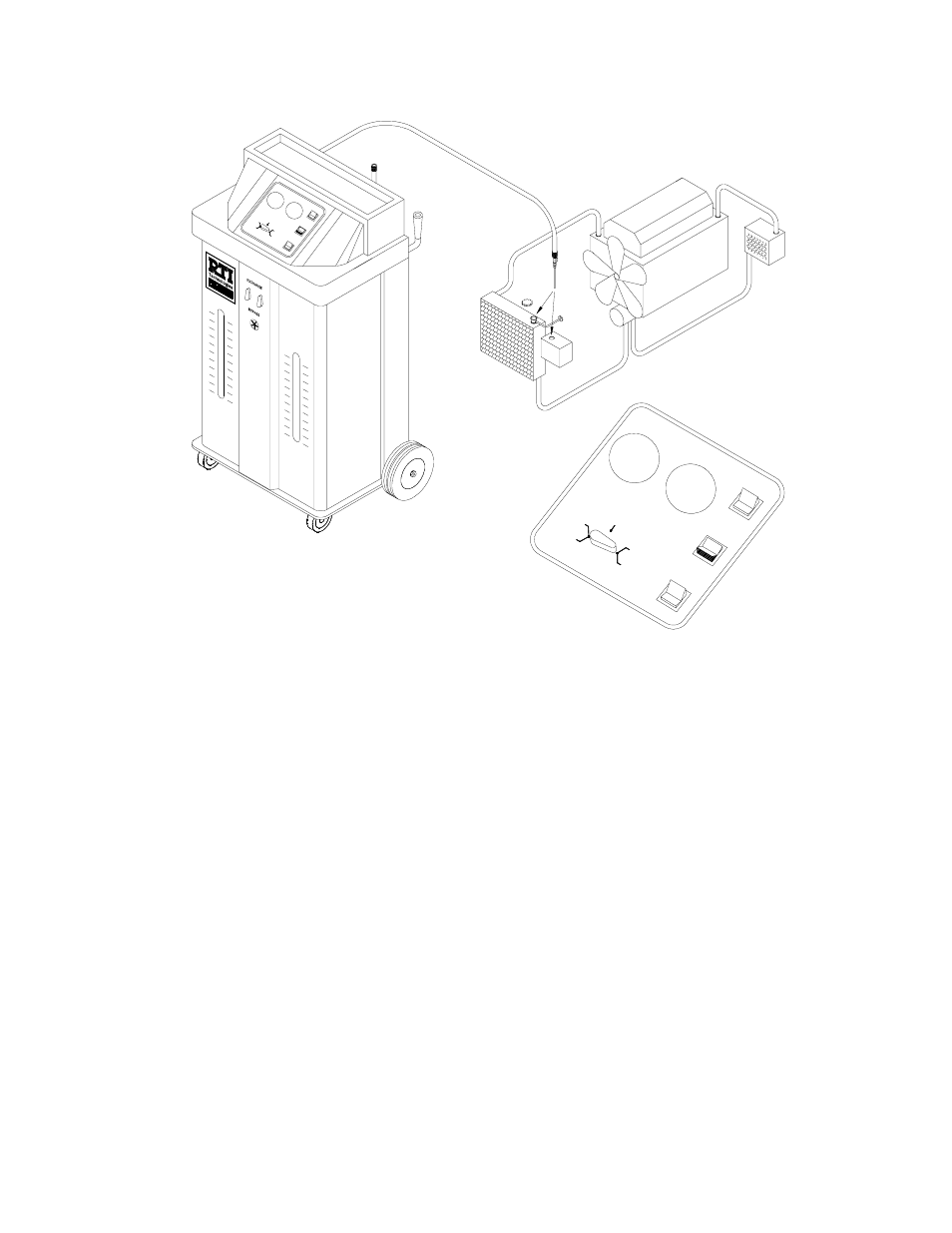

COMPLETING THE JOB
9.
Remove the Step Adapters from the radiator hose and the Adapter Hose.
10.
Remove the Adapter Hose and reattach the radiator hose.
11.
Remove the overflow container cap.
12.
Install the Wand on the green hose. Close the valve.
13.
Turn control valve to FILL RADIATOR & OVERFLOW.
14.
Press the top of EXCHANGE COOLANT OR FILL RADIATOR & OVERFLOW
selector switch to turn on the pump.
15.
Open the valve on the Wand to fill the radiator and overflow container to the
recommended levels.
16.
Replace the radiator cap and overflow container cap.
17.
Press the bottom of the EXCHANGE COOLANT OR FILL RADIATOR &
OVERFLOW selector switch and disconnect power cord.
