Component description – MAHLE RTI MCX-2 (Rev G) User Manual
Page 3
Page 2
Wand
New Coolant
Tank
Waste Tank
Small Adapter Hose
Large Adapter Hose
Small Hose Clamps
Large Hose Clamps
Green Hose
Black Hose
1-1/4
1-1/2
Large Step Adapters
Small Step Adapters
1-3/4
1-1/4
1-3/8
(Qty=3)
2
Extra Large Step Adapters
2-1/4
2-1/2
1-3/8
1-1/2
1-3/4
2-1/4
2-1/2
Extra Large Adapter Hose
Level Magnets
Impeller & Gasket
Extra Large Hose Clamps
COMPONENT DESCRIPTION

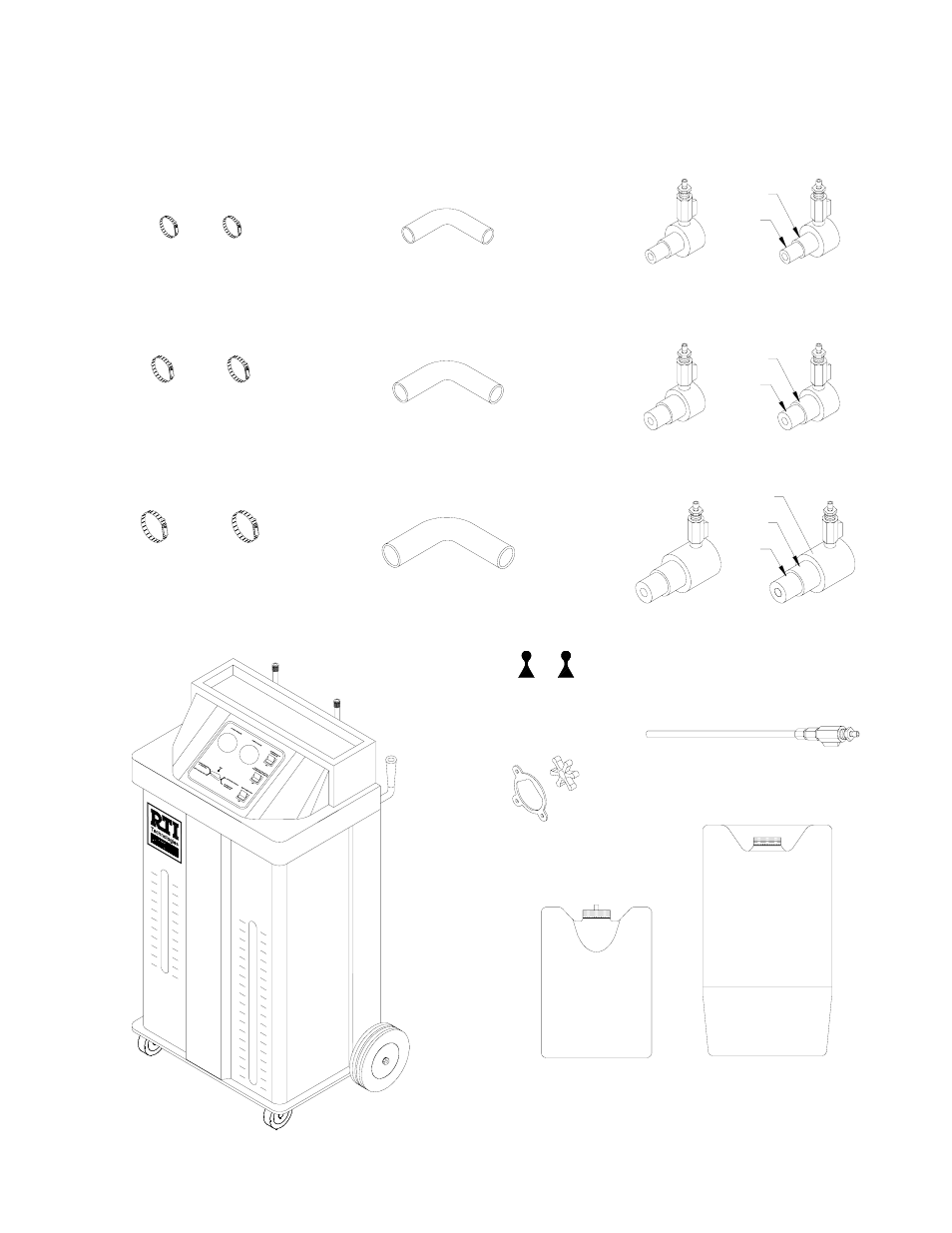

Unpack all components and verify quantities per this illustration.
Contact RTI if any items are missing or damaged.
