Waste pump impeller replacement – MAHLE RTI MCX-2 (Rev G) User Manual
Page 19
Page 18

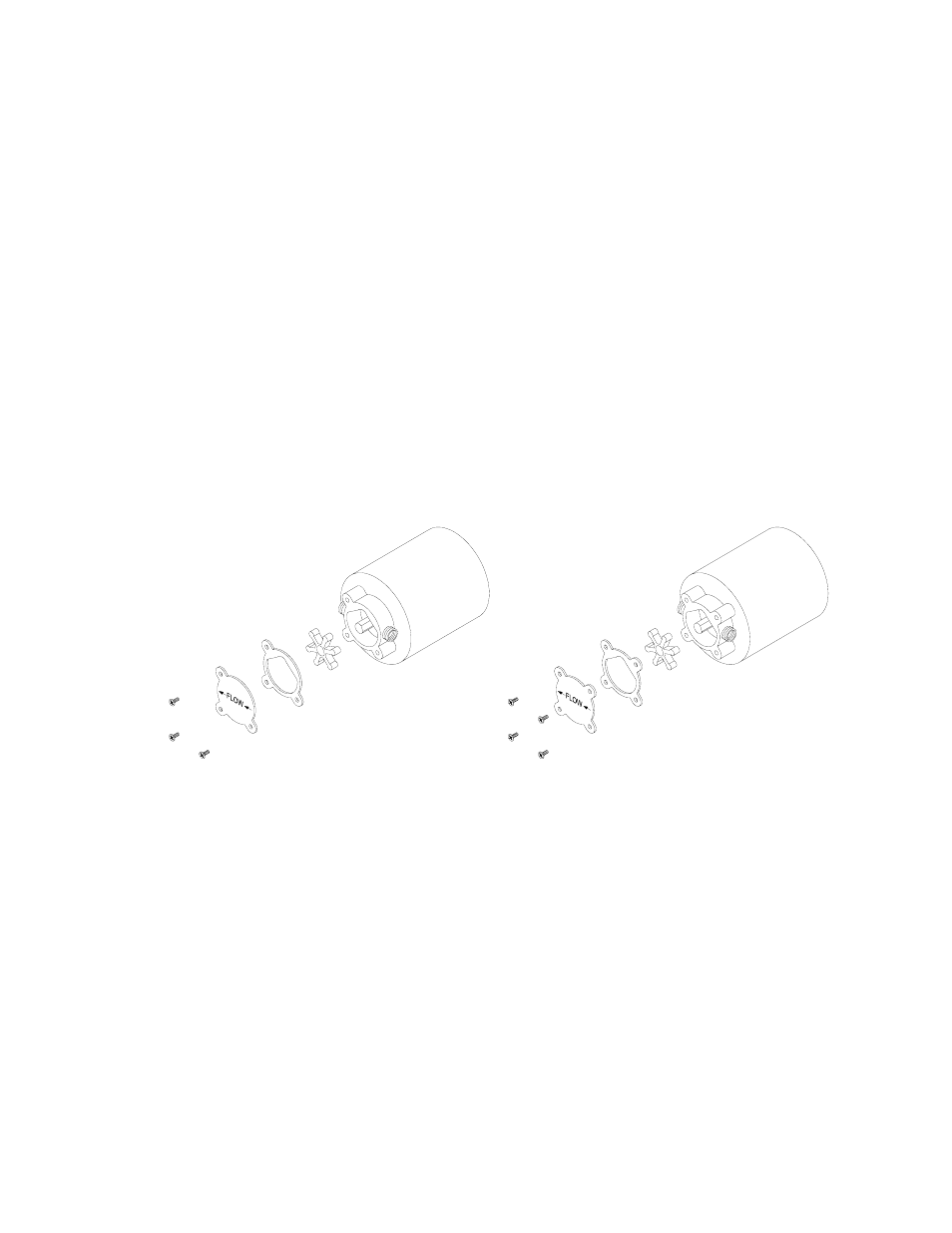

Cover Plate
Screw
Impeller
Gasket
Pump
Housing
Cover Plate
Screw
Impeller
Gasket
Pump
Housing
WASTE PUMP IMPELLER REPLACEMENT
The waste pump impeller may require periodic replacement. The concentration of
impurities in recovered waste coolant affects the life of the pump impeller. Changing
the impeller is quick and easy as follows:
1.
The Waste Pump is accessible through a hole in the Hose Holder on the rear
of the MCX-2S.
2.
Remove screws.
3.
Remove cover plate, gasket and worn impeller.
4.
Coat new impeller with Vaseline
®
petroleum jelly.
5.
Align flats and press impeller onto shaft.
6.
Attach new gasket and cover plate.
3-Bolt Style
4-Bolt Style
Impeller & Gasket
Impeller & Gasket
Part Number: 62116
Part Number: 62297
