CAUTION

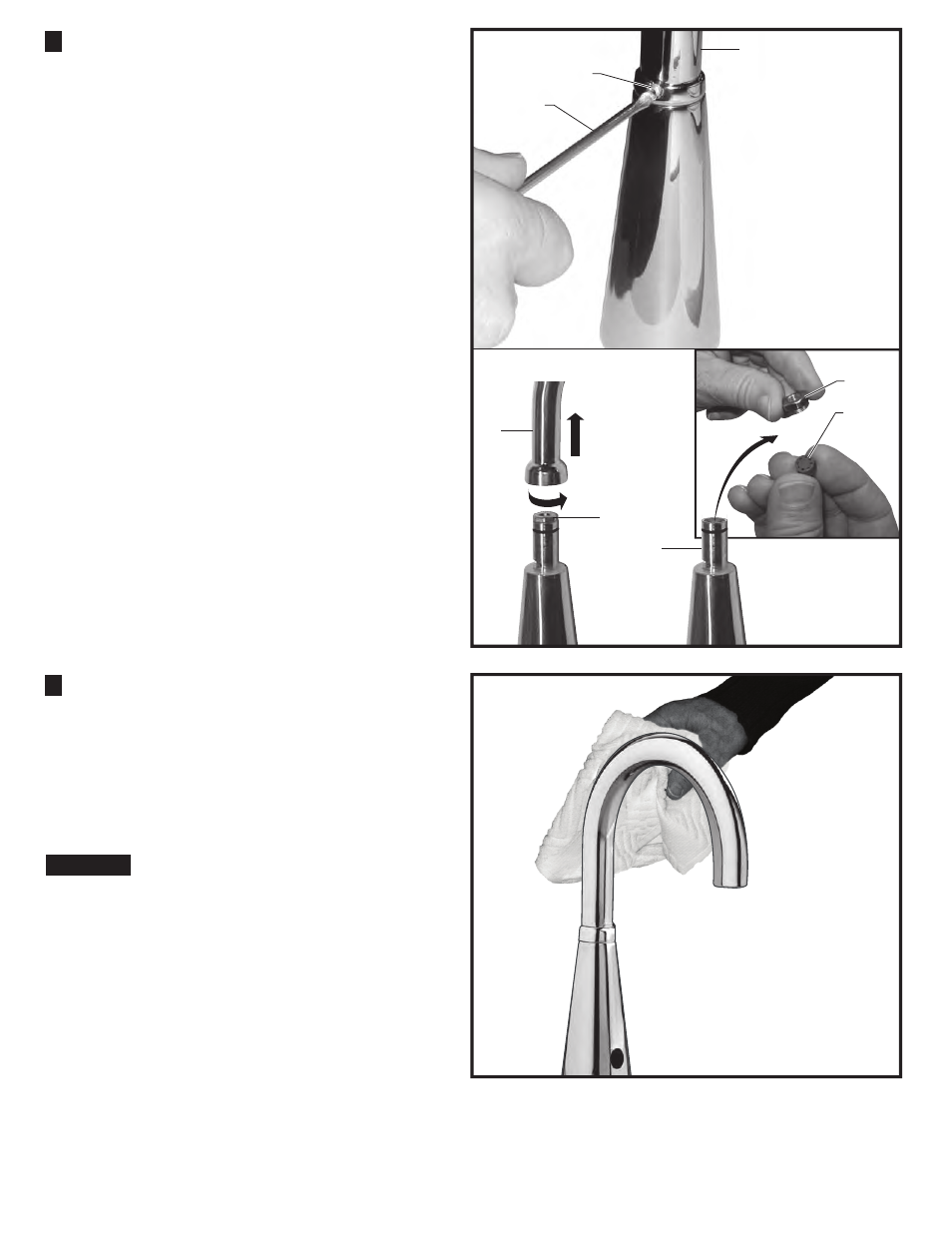

GENERAL CLEANING; Fig. 5
1. For general cleaning use a damp, soft cloth to clean
the spout and the sensor.
2. For cleaning dirt use a soft cloth with diluted dish
washing detergent. Wipe the area using a wet cloth
and dry using a soft cloth.
Do not scratch the sensor when cleaning.
Avoid using anything that may scratch the spout
surface. Never use polishing power, detergent or a
nylon scrub brush. They will damage the surface of the
spout or Sensor.
5
Fig.5
7
1. Remove SET SCREW (1) with FLAT BLADE
SCREWDRIVER (2). Pull off SPOUT (3) from faucet
base. Fig. 4 & 4a.
2. Remove HOUSING (4) and remove FLOW
RESTRICTOR
(5). Fig. 4b.
3. Rinse clean FLOW RESTRICTOR (5). Reassemble
and install into SPOUT BASE (6). Reassemble SPOUT
(3) onto SPOUT BASE (6) and tighten SET SCREW (1).
Fig. 4.
HOW TO CLEAN AND REMOVE
THE FLOW RESTRICTOR; Fig. 4
4
1
2
3
4
Fig.4
Fig.4a Fig.4b
REMOVE SET SCREW (1)
PULL UP TO
REMOVE SPOUT
3
6
4
5
