Components – MAHLE RTI RHS900 User Manual
Page 6
- 3.1 -

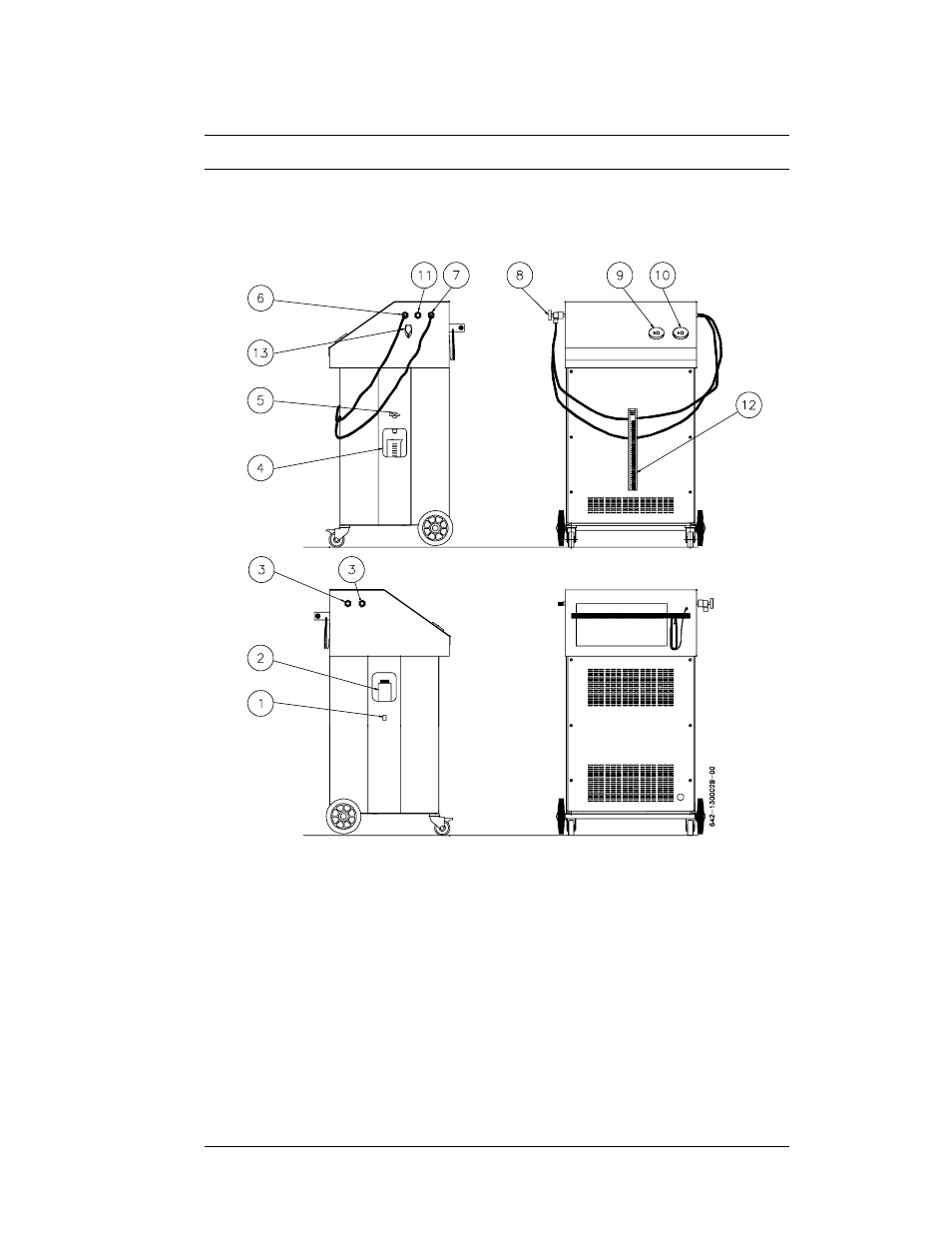

Components
C:\RHS Computer Files\Instructions\RHS\GB\642-40\0012B-01.doc 1997.09.11
RHS 900
1)
Oil charging: Oil charging switch.
2)
Oil tank
3)
Parking sockets: The high and low-pressure valves can be parked here.
4) Measuring beaker: For drained oil.
5)
Oil draining valve: For draining oil received from the A/C unit.
6) Connection: Low-pressure, hose connection for the low-pressure side of the
A/C unit.
