Components – MAHLE RTI RHS700 User Manual
Page 7
- 3.2 -

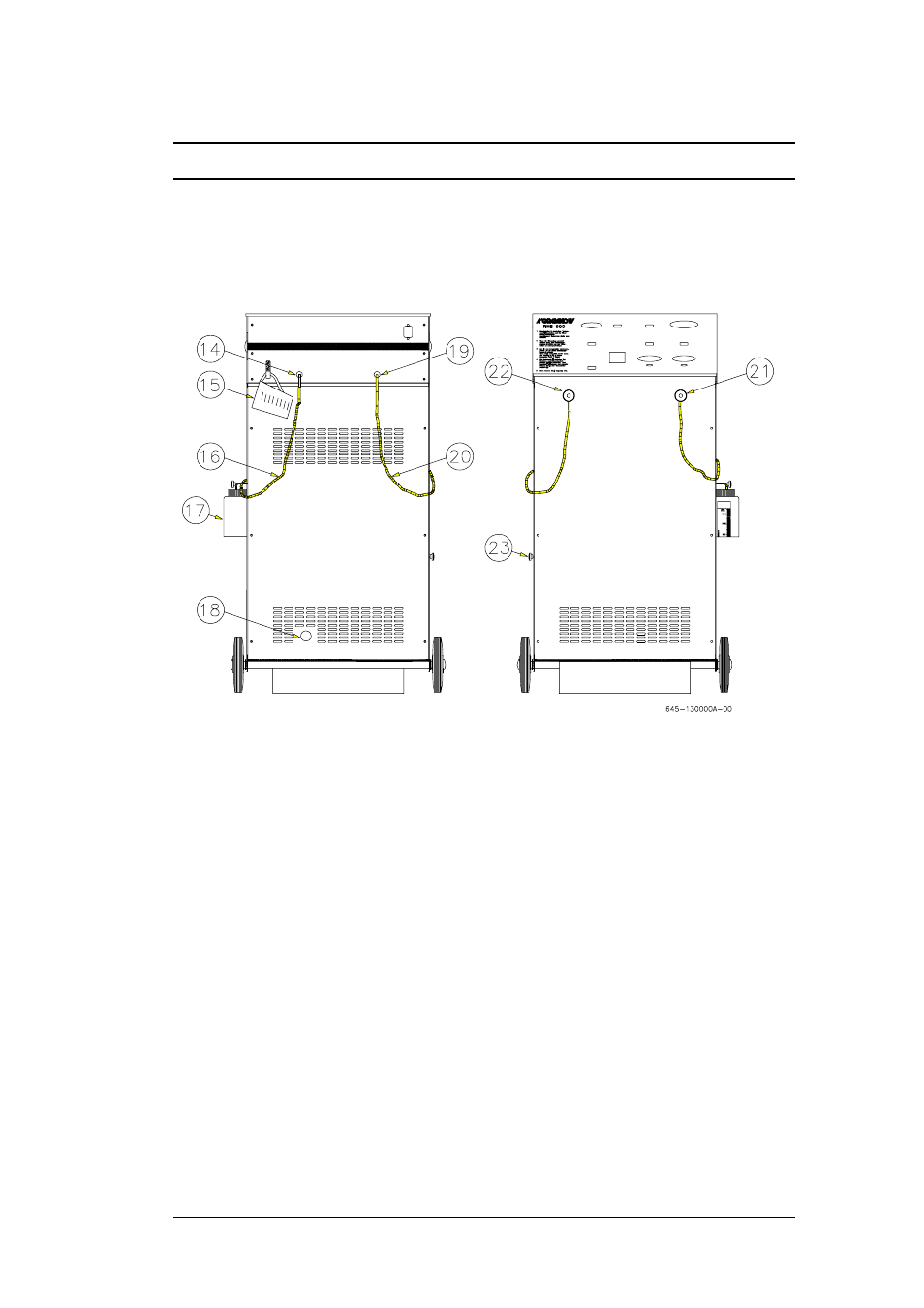

Components
C:\RHS Computer Files\Instructions\RHS\GB\645-40\0009A-01.doc 1997.03.26
RHS 700
14. High-pressure
side
15. Oil beaker - 250 ml
16. High-pressure hose - red
17. Oil
charging
18. Sightglass
19. Low-pressure
side
20. Low-pressure hose - blue
21. Service coupling - high pressure
22. Service coupling - low pressure
23. Oil drain valve
