Components – MAHLE RTI RHS700 User Manual
Page 6
- 3.1 -

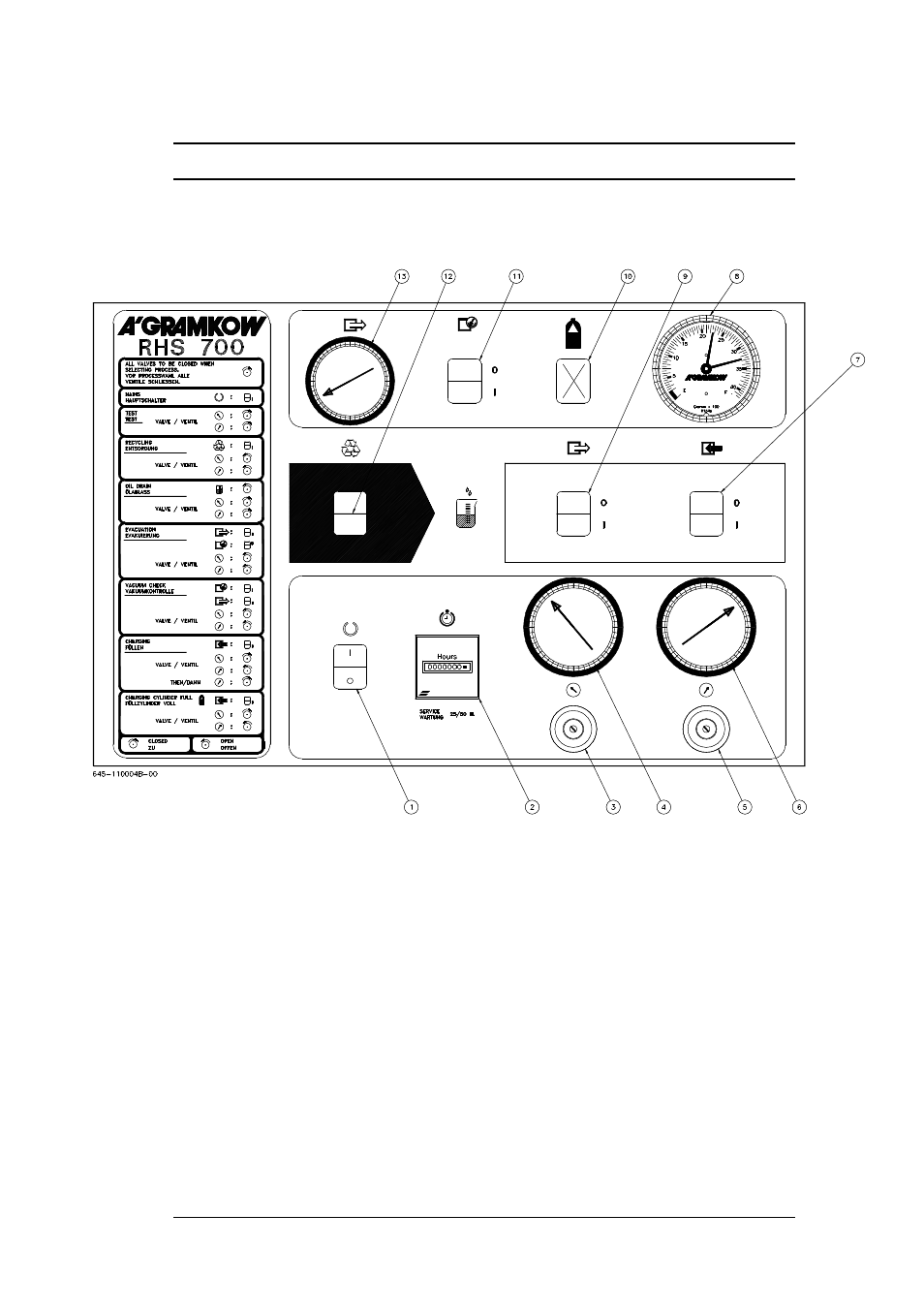

Components
C:\RHS Computer Files\Instructions\RHS\GB\645-40\0009A-01.doc 1997.03.26
RHS 700
1. Main
switch
2.
Operation time indicator
3. Low-pressure
valve
4.
Pressure gauge - low pressure
5. High-pressure
valve
6.
Pressure gauge - high pressure
7. Charging
switch
8.
Charging quantity indicator
9. Evacuation
switch
10. Cylinder full - lamp
11. Vacuum
check
12. Recovery/recycling
switch
13. Vacuum
gauge
