2.2-1 Program control display
When the “program” is selected in figure 6 (2), a program selection screen is displayed (figure 7).

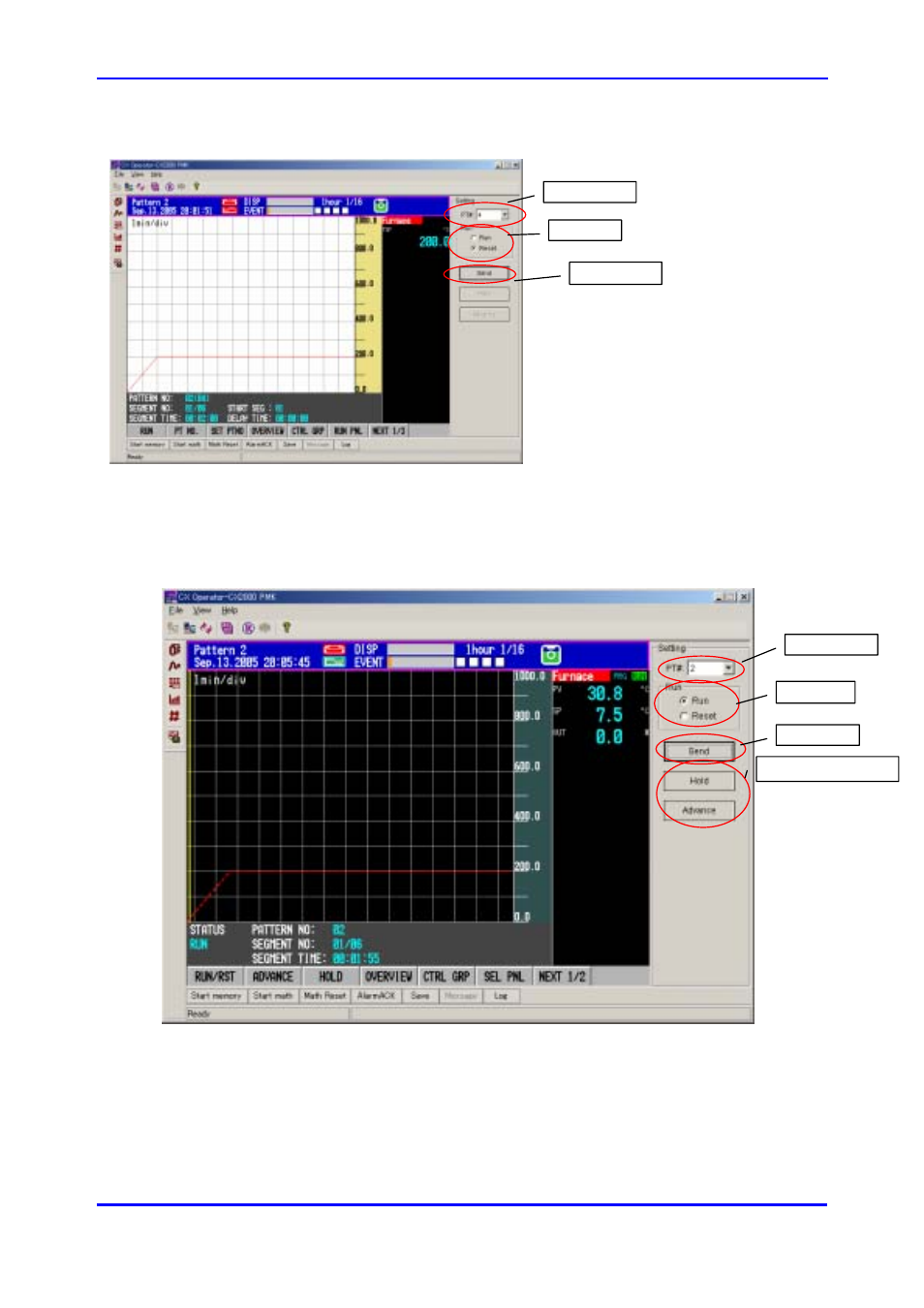

Figure 7 Program selection screen
Figure 8 Program operation screen 1
(4) (PT#): Pattern no. is selected.
(5) (RUN): RUN/Reset for the selected pattern no. in (4) is set.
RUN/Reset status is automatically updated when it is changed at CX.
(6) (Send): The RUN/Reset for the selected pattern no. in (4) can be executed.
(7) (Hold) or (Advance): Hold or Advance for the selected pattern no. in (4) can be executed.
(1) (PT#): Program pattern no. can be specified.
(2) (RUN): RUN/Reset for the selected pattern no. in (1) is set.
(3) (Send): The RUN/Reset for the selected pattern no. in (1) can be executed.
Then, the display screen is switched to program operation screen (see figure 8)
(1) PT#
(2) Run
(4) PT#
(5) Run
(6) Send
(7) Hold/Advance
(3) Send
