<1. Specifications>
1-2
IM 11M12A01-21E
1.2 Model ZR202A Heater Assembly
l Model and Codes
Model Suffix code Option code Description
ZR202A - - - - - - - - - - - - - - - - - - - - Heater Assembly for ZR202G
Length (*1) -040
-070
-100
-150
-200
-250
-300
- - - - - - - - - - -
- - - - - - - - - - -
- - - - - - - - - - -
- - - - - - - - - - -
- - - - - - - - - - -
- - - - - - - - - - -
- - - - - - - - - - -
0.4 m
0.7 m
1 m
1.5 m
2 m
2.5 m
3 m
Jig for change -A
-N
- - - - - - - - - - -
- - - - - - - - - - -
With Jig (*2)
None
- -A - - - - - - - - - - - Always -A
*1 Suffix code of length should be selected as same as ZR202G installed.
*2 Jig part no. is K9470BX to order as a parts after purchase.
(Note) The heater is made of ceramic, do not drop or subject it to pressure stress.
l External Dimensions
K9470BX
ZR202A-040
ZR202A-070
ZR202A-100
ZR202A-150
ZR202A-200
ZR202A-250
ZR202A-300 552
852
1152
1652
2152
2652
3152
Approx. 0.8
Approx. 1.2
Approx. 1.6
Approx. 2.2
Approx. 2.8
Approx. 3.4
Approx. 4.0
Jig for change
L±12
(K9470BX)
Ø 21.7
30
Unit : mm
Ø 45
L: length
L Weight (kg) Model & Codes
F1-2-1.EPS

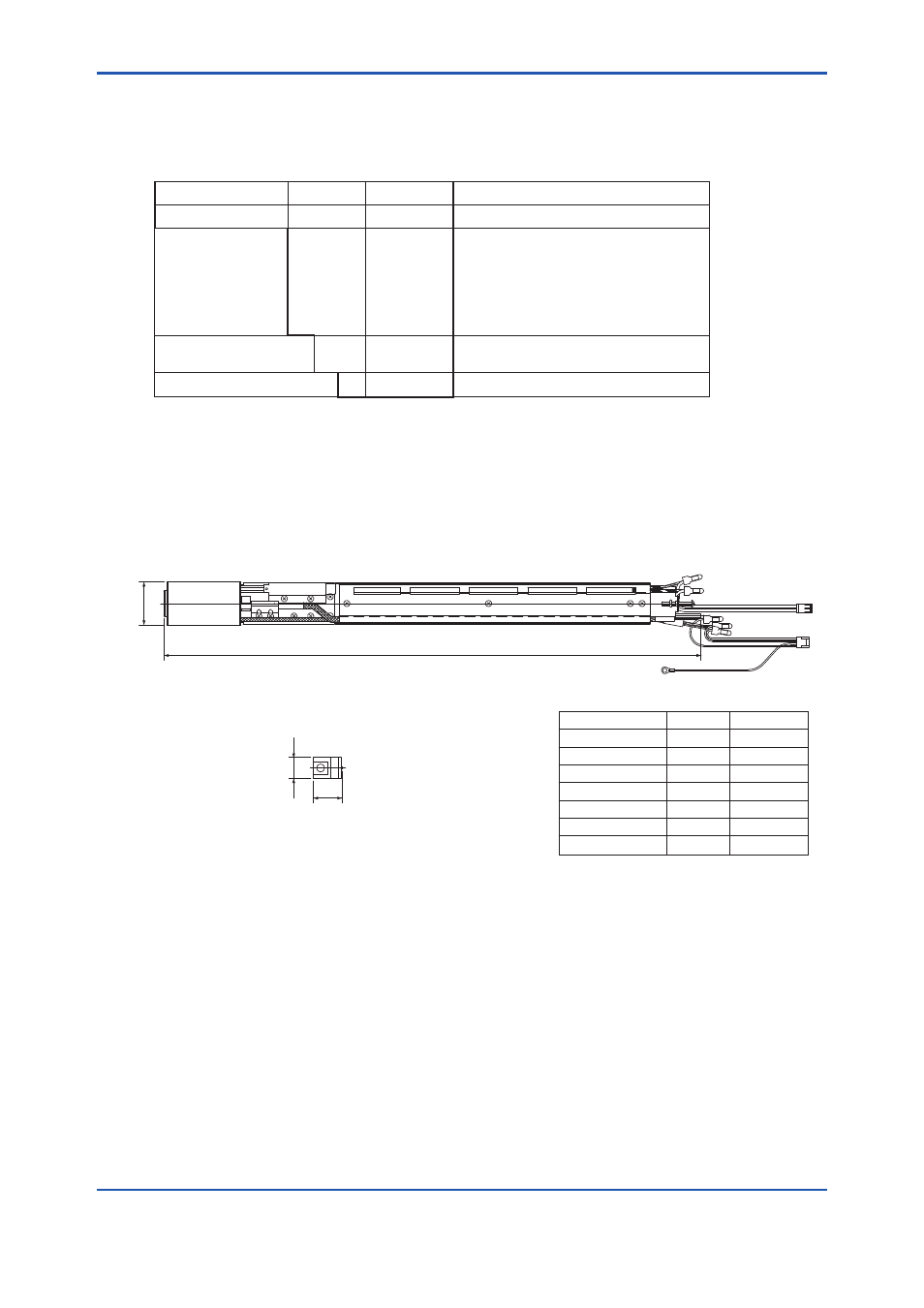

Figure 1.2 External Dimensions of ZR202A
