<2. Instruction for Replacement of the Heater Unit>
2-8
IM 11M12A01-21E
F2.4E.ai
Bolt
Washer
U-shaped
pipe support U-shaped
pipe
Metal O-ring
Contact
Filter
Sensor (Cell)
Turn to
remove
screw
Index jig with
notches
in screw
Grip jig
in Spanner
and turn to
unscrew
A
A
View A-A
⑭
⑳
⑲
⑰
⑱
⑬
①
⑧
⑬
⑮
⑱
⑭
⑩
⑪
⑫

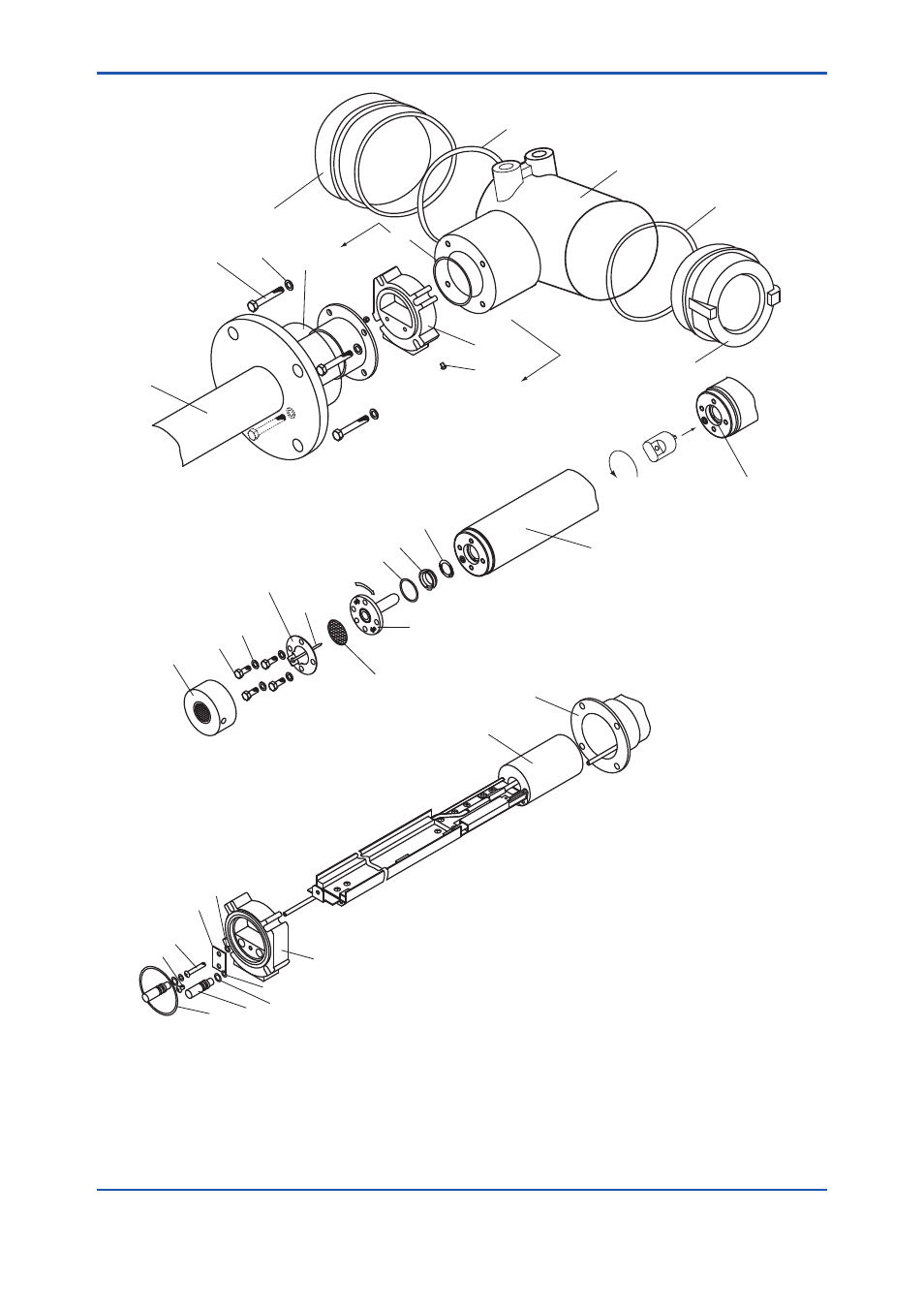

Figure 2.5 Installation of Model ZR202A HEATER UNIT
