<9. General Specifications>
9-28
IM 01C25B01-01E

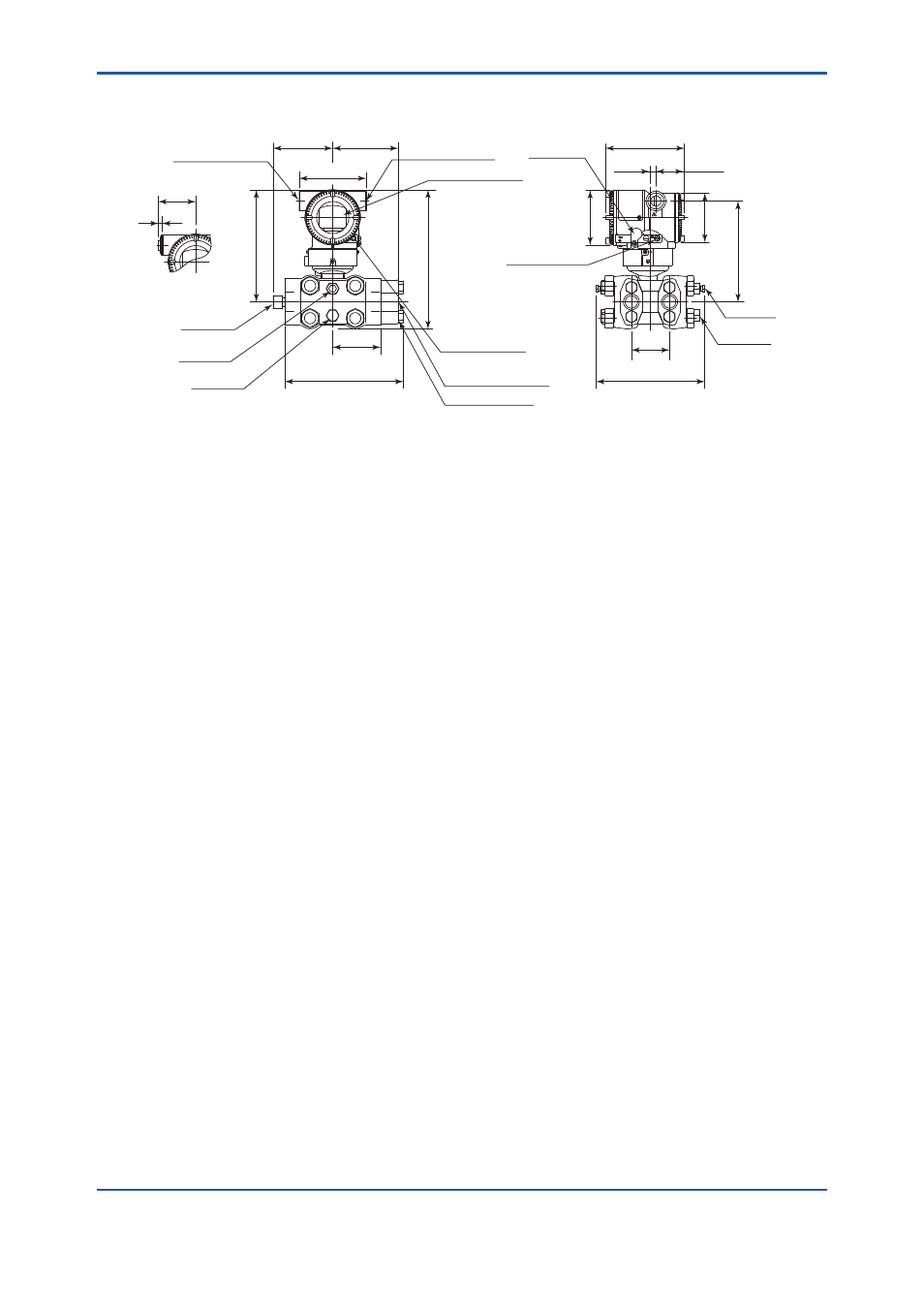

Unit: mm (approx. inch)
54
(2.13)
6
(0.24)
ш78(3.07)
ш70 (2.76)
Integral indicator
(optional)
Ground terminal
Zero
adjustment
External indicator
Conduit connection
(optional)
Vent plug
Process connection
Process connector
(optional)
Conduit connection
Shrouding bolt* 2
● Universal Flange (Installation code -U)
Low
pressure
side
High
pressure
side
Electrical connection
for code 5, 9, A, and D.
Drain plug
Drain plug
Drain plug
Vent plug
54
(2.13)
110(4.33)
9
(0.35)
39
(1.54)
197(7.76)
143(5
.63)
159(6.26)
*1: When Option code K1, K2, K5, or K6 is selected, add 30 mm(1.18 inch) to the value.
*2: Available only when specifying the option code including ATEX, IECEx or TIIS flameproof type.
85(3.35) 93(3.66)
68
(2.68)
169(6.65)
95(3.74)
154(6.06)* 1
F0911.ai
