24

WARNING

Assembly

hole

Threaded

Removal

holes

Assembly

hole

Tightening will

separate the hub

from the pulley

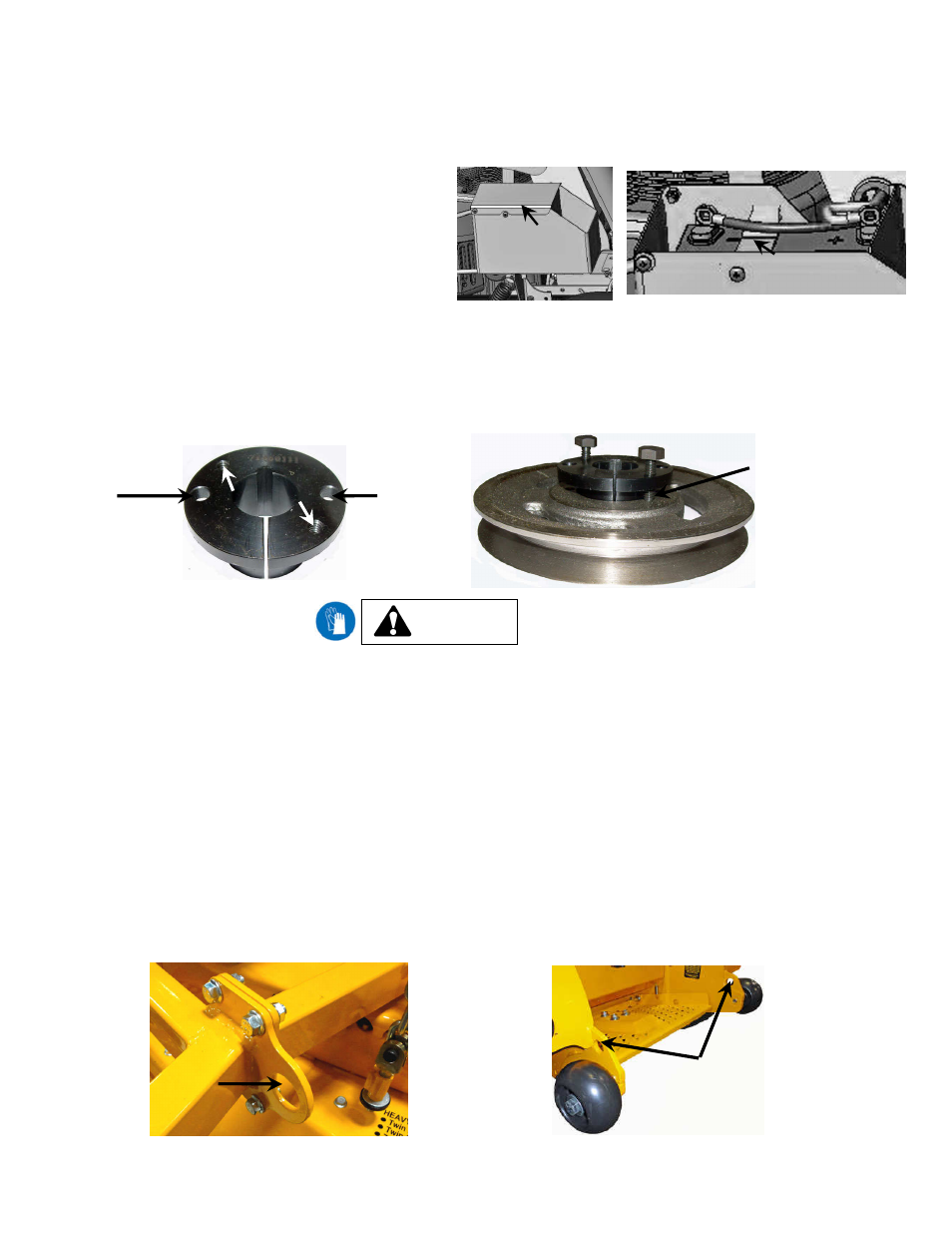

6.10 Battery Service

The battery is 12 volts and is a maintenance free battery. Charge the battery only if it will not start the mower
effectively. Remove the battery from the mower before charging. Follow the instructions of the battery
charger for proper and safe charging of the battery. Always make sure the Positive terminal is connected to
the Positive battery post and the Negative terminal is connected to the Negative battery post. Reversal could
cause damage to the electrical system.
1. Lift battery box cover to access.
2. Keep the battery and terminals Clean.
3. Keep battery bolts tight.



6.11 Spindle and Drive Pulley Split hub R&R

Remove 2, ¼” bolts from split hub and install in threaded holes in hub.

Slowly tighten each bolt, alternating as you tighten bolts against the pulley.

The hub will separate from the pulley.

Replace grade 8 bolts and install in reverse order using the assembly holes to tighten hub onto pulley

and spindle shaft.







6.12 Cutting Blades

In order to maintain the best cut, it is important that the blades are well sharpened and not damaged. Bent
or cracked blades or blades with large nicks need to be replaced. Blades must be balanced after
sharpening. To change the blades:

Stop engine, remove the key and wait for all moving parts to stop.

Engage the parking brake

Lift front of mower and secure in the raised position with jack stands.

Remove the blade nut by turning counterclockwise.

Install new or re-sharpened blade. (Ensure the blade spacers are reinstalled with the same qty and

location)

Torque blade bolt to 70-80 ft/lbs / 95-108 Nm

6.13 Transporting

Use a heavy duty trailer or truck to transport the Stander X. Lock brake and block wheels. Securely fasten
the unit to the trailer or truck with straps, chains, cable or ropes.

Fasten unit to trailer or truck using tie down locations shown in photos.







Battery

Cover

Battery Hold

Down

Front Tie

Down

Rear Tie

Down
