Page 26: 6 hydraulic oil tank check/fill

22
WARNING
Sight-Glass

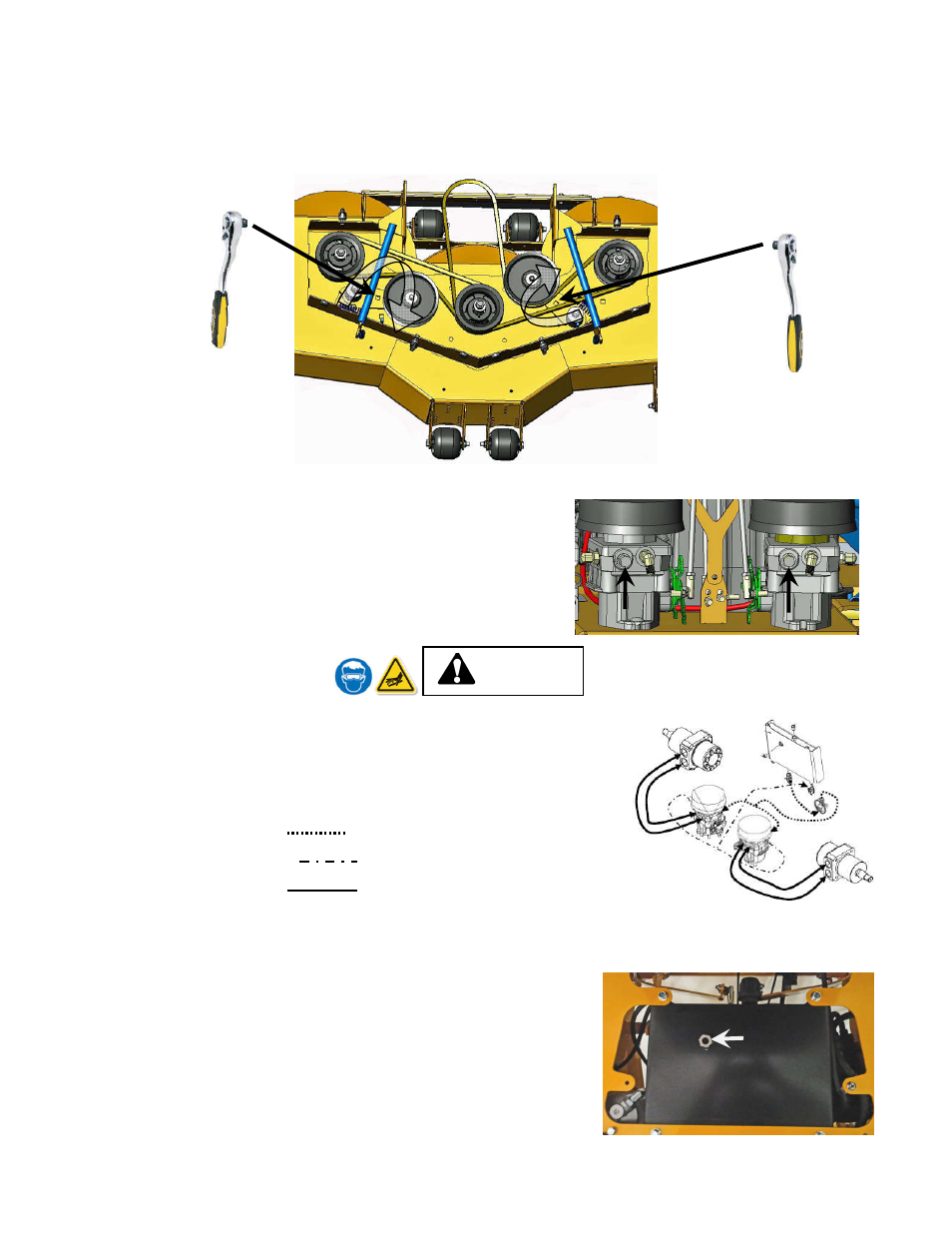

6.3.2 Replacing the Cutter Deck Belts
•
Stop engine and remove the key and wait for all moving parts to stop.
•
Remove deck covers
•
Remove belt by using a ½” ratchet and extension to relieve belt tension.
•
Reinstall in reverse order. Figure shows belt routing and spring compression direction.
6.4 How to Move the Mower if the Engine Won’t Start
Rotate both of the hydro bypass valves on the side of each
hydraulic pump about ½ turn counterclockwise. It is important
not to over tighten these. Damage may occur to the pump if
this valve is over tightened.
6.5 Hydraulic System
Whenever servicing the hydraulic system, it is of the utmost importance to keep any dirt or debris from
getting into the system. Clean off all parts before disassembly and
assembly. When any of the hydraulic parts are disconnected or
removed or when the oil is changed, air must be bled from the system.
If air is entrained in the system, loss of power, excessive heat, and
damage to the hydraulic pumps may occur.
•
Low Pressure Feed
•
Low Pressure Return
•
High Pressure Hose
6.6 Hydraulic Oil Tank Check/Fill
Checking Oil Level
1. Ensure mower is on a level surface.
2. Lift the hinged pad to access the hydro tank sight-glass.
3. Hydro oil should be at the center of glass.
Filling Oil Level
1. Remove the vent cap.
2. Using a funnel, fill tank port until oil reaches the center of
the sight-glass.
