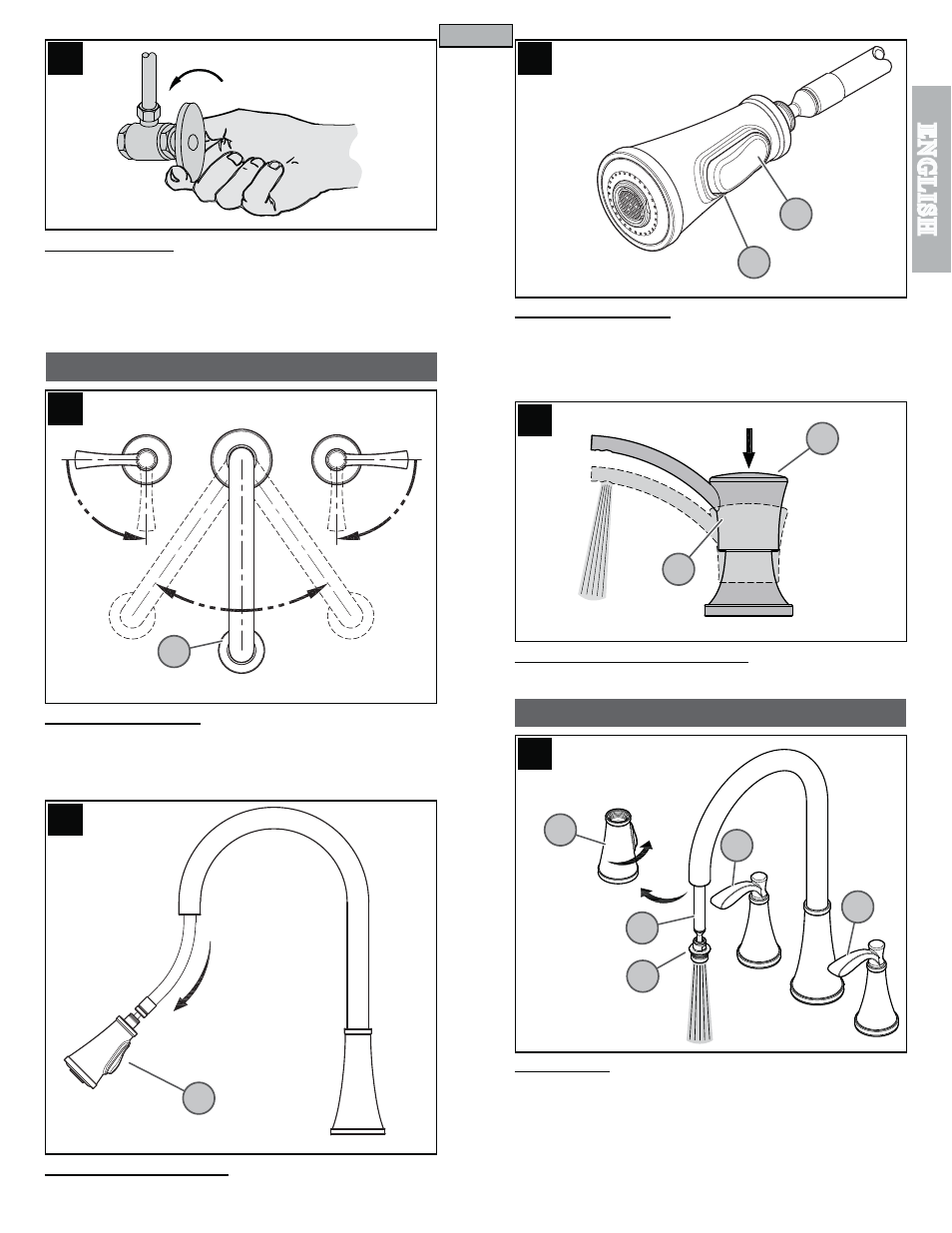

FAUCET FUNCTIONS
16
17
18
MAINTENANCE & CARE
20
19
15 UNIT START UP
Turn on hot and cold water supplies, and check for leaks above and below the sink.
16 FAUCET FUNCTION
COLD valve: close-counterclockwise, open-clockwise; HOT valve: close-clockwise,
open-counterclockwise. The Spout (16A) can be rotated around the Faucet Body in
any direction.
Note: Flush faucet before turning on valve (see step 20).
17 PULL-OUT OPERATION
The Spray Head (17A) can be pulled forward to spray water in any direction.
18 SPRAY OPERATION
To activate the spray mode, simply press Toggle Button (18A) located under the spray
head. You can change between spray and stream by pressing the opposite sides of
the Toggle Button (18A/18B) while the faucet is in operation.
Note: The faucet will always turn on in regular stream mode.
20 FLUSHING
To prevent damage to the internal parts of your faucet from debris that may have
collected in the water lines, it will be necessary to flush the faucet. Flushing requires
the removal of the Spray Head (20A). To remove the Spray Head (20A), hold metal
Hose Fitting (20B) and turn the Spray Head (20A) counterclockwise. Turn the Valve
Lever Handles (20C) to the full on position. Run water for one minute. Repeat in hot
and cold positions. Reassemble the Spray Head (20A) to the Pull-Out Hose (20D) by
turning Spray Head (20A) clockwise.
Caution: do not over tighten spray head and pull-out hose.
19 SOAP DISPENSER OPERATION
To activate Soap Dispenser (19A), press Dispenser Head (19B) to spray liquid soap.
