ENGLISH
ENGLISH
11 13
12
14

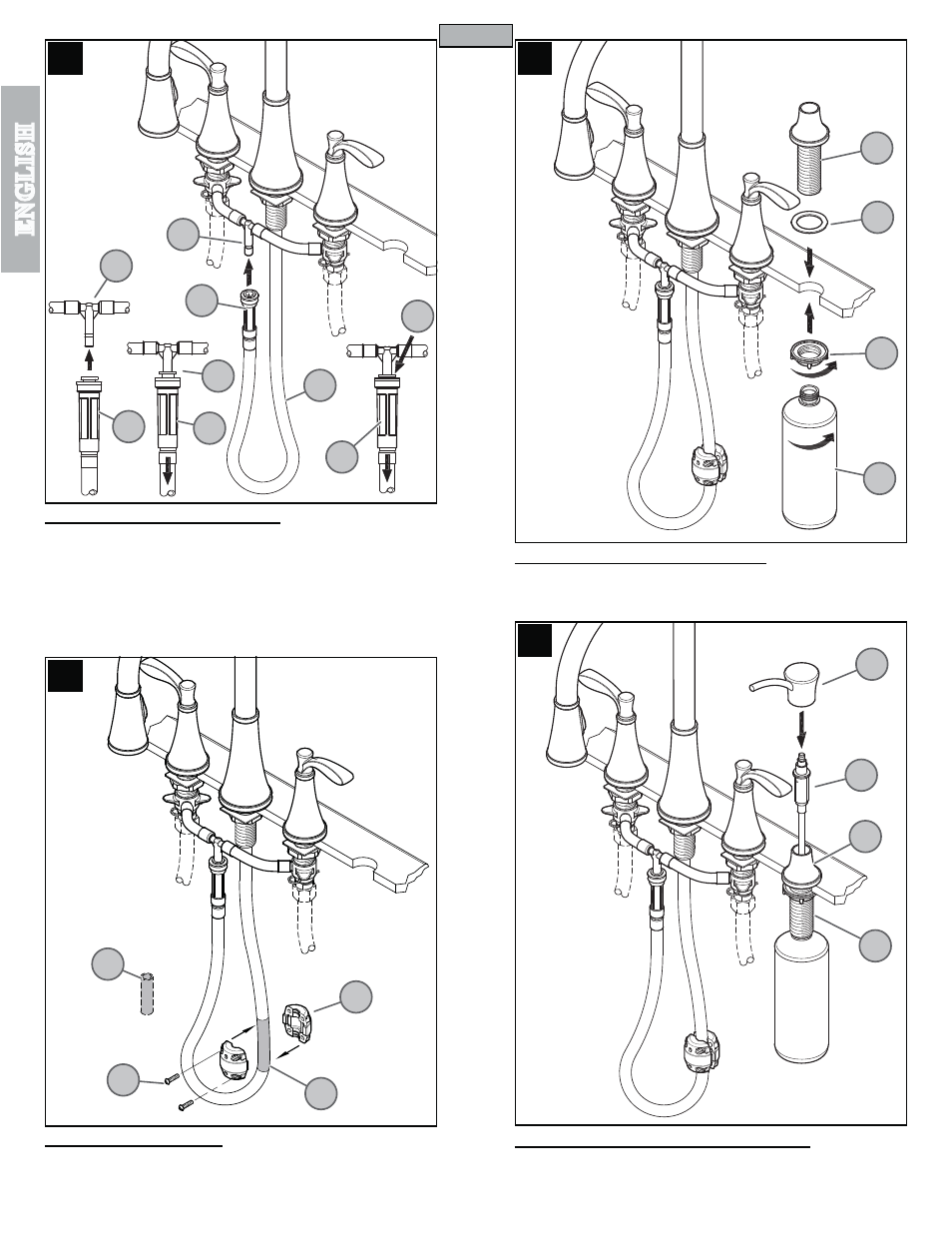

11 PULL-OUT HOSE ATTACHMENT
From underneath sink, push Quick Connector (11A), located on the end of the Pull-Out
Hose (11B) firmly upward onto the Receiving Tube (11C), until unable to push any
further. Pull down on the Quick Connector (11A). If the housing and the Inner Collet
(11D) separate slightly but do not pull off, the Receiving Tube (11C), quick connect is
secure.
To remove Pull-Out Hose (11B), Push up on Quick Connector (11A). Holding Plastic
Collet (11D) in place, pull downward on Quick Connector (11A) until Tube (11C) is
free.
12 WEIGHT ATTACHMENT
Discard Cardboard Fitting (12B) from Weight (12A). Place Weight (12A) above the
beginning of hose bend (12C) at the spout side (as shown in shaded area). Secure
Weight (12A) with Screws (12D).
13 SOAP DISPENSER INSTALLATION
From above sink, insert threaded Shank (13A) of soap dispenser body through Foam
Gasket (13B) and sink hole. From below sink, tighten Nut (13C) and thread on Bottle
(13D) to Shank (13A).
14 SOAP DISPENSER HEAD INSTALLATION
Pour in liquid soap (not included) into the Shank Orifice (14A). Insert Pump Mechanism
(14B) into Soap Dispenser Body (14C). Install Dispenser Head (14D) by pushing firmly
onto Pump Mechanism (14B).
4
11A
11D
11A
11A
11D
11A
11C
11B
11C
12B
12A
12C
12D
13A
13B
13C
13D
14A
14B
14C
14D
