2 ■ Wa t l o w M I N I C H E F 2 0 0 0 A p p l i c a t i o n 2 4

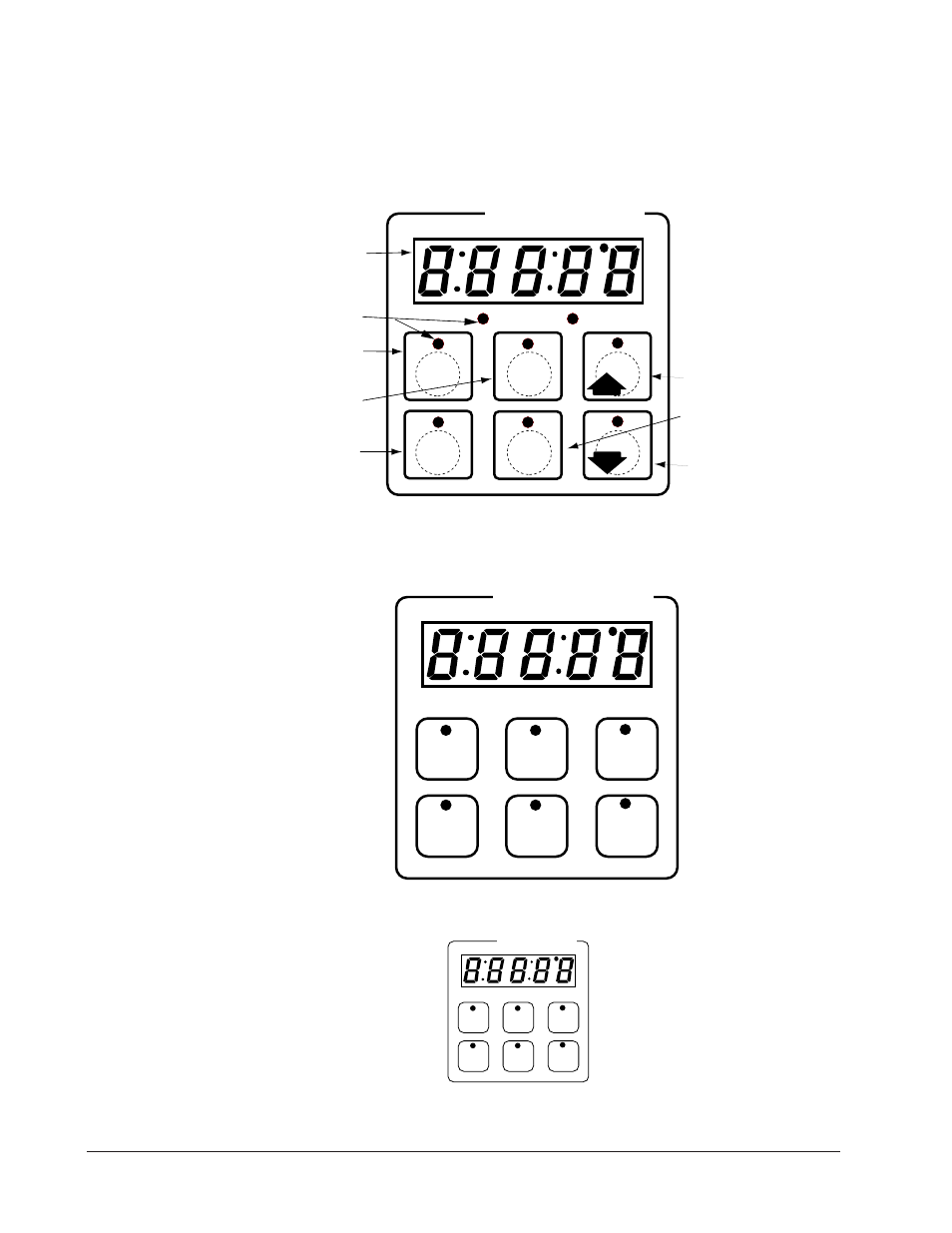

Key Functions in Configuration Mode
Key Functions in Operation Mode
Summary of Input/Output Functions
Note: For details, see wiring instructions in the Hardware & Software Setup Guide.
Input 1 not used
→
Input 2 not used
→
Event Input 1 not used
→
Event Input 2 not used
→
→
Output 1 not used
→
Output 2 not used
→
Event Output 1 not used
→
Event Output 2 not used
→
Output 5 Audible alarm
Time 1
Time 4
Time 3
Time 6
1 2 3
4 5 6
Your Company Logo
Time 2
Time 5
Time
Time
Time
Time
Time
Time
1 2 3
4 5 6
Your Company Logo
Timer Key Indicator
Lights
Lit...Timer running
Rapid flash...Done Timer Keys Activate,
acknowledge,shut off and
cancel corresponding
timers.
A B
D E
G H
Enter
Escape Home
Edit
C
F
M INI C HEF 2000
Display five-digit, seven-
segment numeric LED
display.
Indicator lights
(1 for each key, 2 for heat
channels).
Edit key (A) Access the
next level of parameters or
values.
Enter key (B) Enter the
value and return to
previous level.
Home key (D) Move to
Operation Mode with a
two-second key press.
Up key (C) Move up the
lists.
Escape key (E) Return to
original value when editing
a parameter value.
Down key (F) Move down
the lists.
