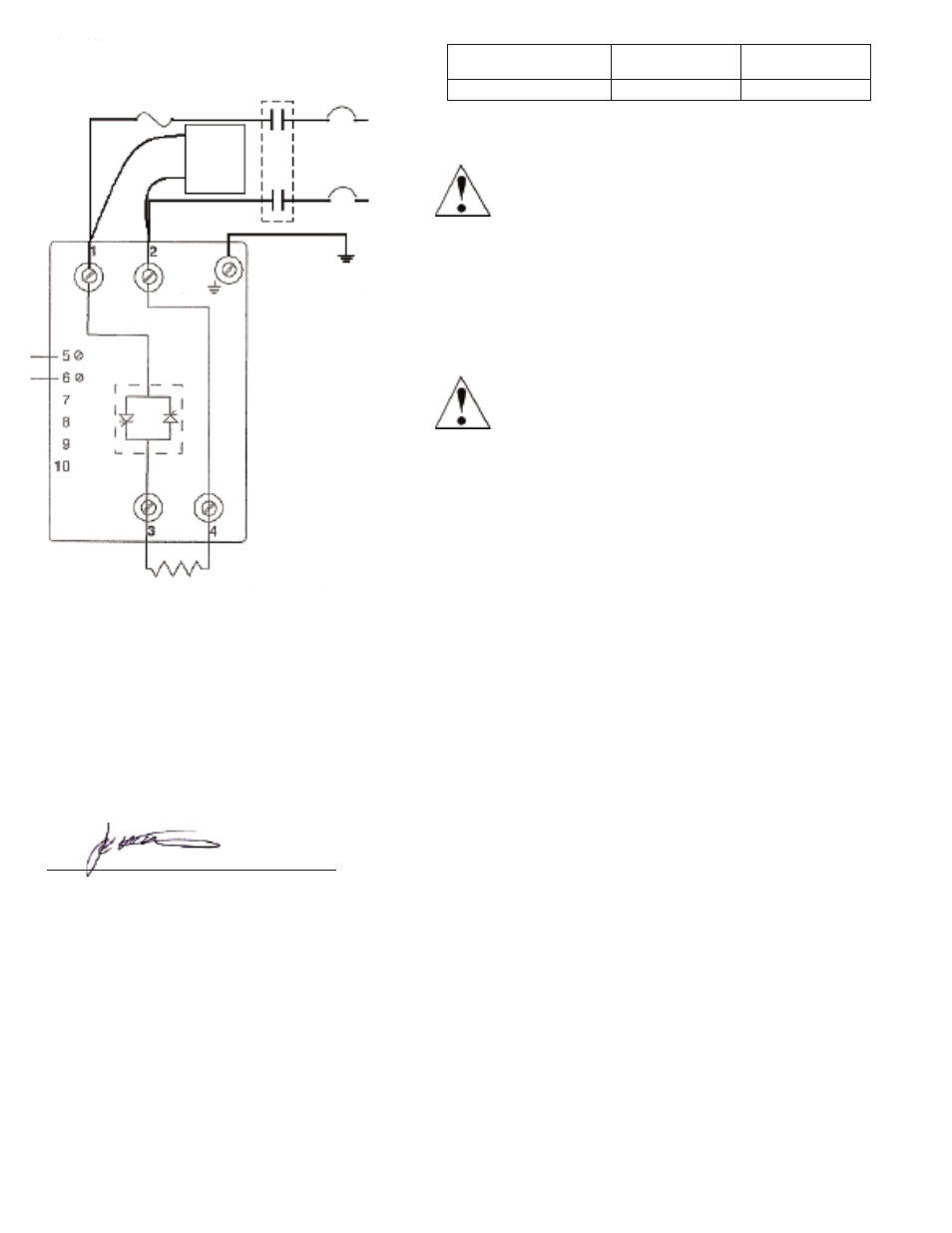

WATLOW DIN-A-MITE Style A User's Guide

8

Phase to phase

200V ~ (ac)

and above

Limit Control

Contacts

(if required)

Tank
Filter

Semiconductor

Fuses

Heater

Description

Crydom

Filter

Watlow

Filter

Single phase 230 v~(ac)

1F25

14-0019

WARNING

Tank filters may suppress desirable communications carried on power
lines in the 150 to 250 KHz region. The filters may suppress carrier
current such as that used for infant monitors and medical alert systems.
Verify that suppressed carrier current or other desirable
communications on power lines creates no hazard to people or
property. Failure to observe this warning could result in damage to
property, and or injury to death for personnel.

WARNING

All filter installation and wiring must be performed by qualified personnel
and conform to local and national electrical codes

In-line power filters have been shown to properly suppress EMI; however, these filters must be rated for the entire load current and are
generally more expensive than the tank filter specified. An In-line filter may be required if carrier current communications are used on

site.

Joe Millanes

Winona, Minnesota, USA

Name of Authorized Representative

Place of Issue

Director of Operations

August 2013

Title of Authorized Representative

Date of Issue

Signature of Authorized Representative
