To mount:

1. Push the unit in and

down to catch the rail
hook on top of the rail.

2. Rotate the bottom of

the unit in toward the
rail.

3. The rail clasp will

audibly “snap” into
place. If the DIN-A-
MITE does not snap
into place, check to
see if the rail is bent.

4. Mount the cooling fins

vertically.

DIN-EN 50022 35 mm by 7.5 mm Rail
(Clipping Distance 34.7 mm (1.37 in) to 35.3 mm (1.39 in)

Allowance for #8 Fastener
Metric = M4

Grounding Hardware (#6)

Front

Top

Rail Release Tab
(Pull Down)

Zero Electrical Clearance Required

Clearance for Air Flow and Bending Radius

Side

98 mm

(3.87 in)

50 mm

(1.97 in)

34 mm

(1.34 in)

11 mm

(0.44 in)

49 mm

(1.92 in)

83 mm

(3.25 in)

26 mm

(1.03 in)

102 mm
(4.00 in)

40 mm

(1.56 in)

41 mm

(1.60 in)

71 mm

(2.80 in)

94 mm

(3.69 in)

102 mm
(4.00 in)

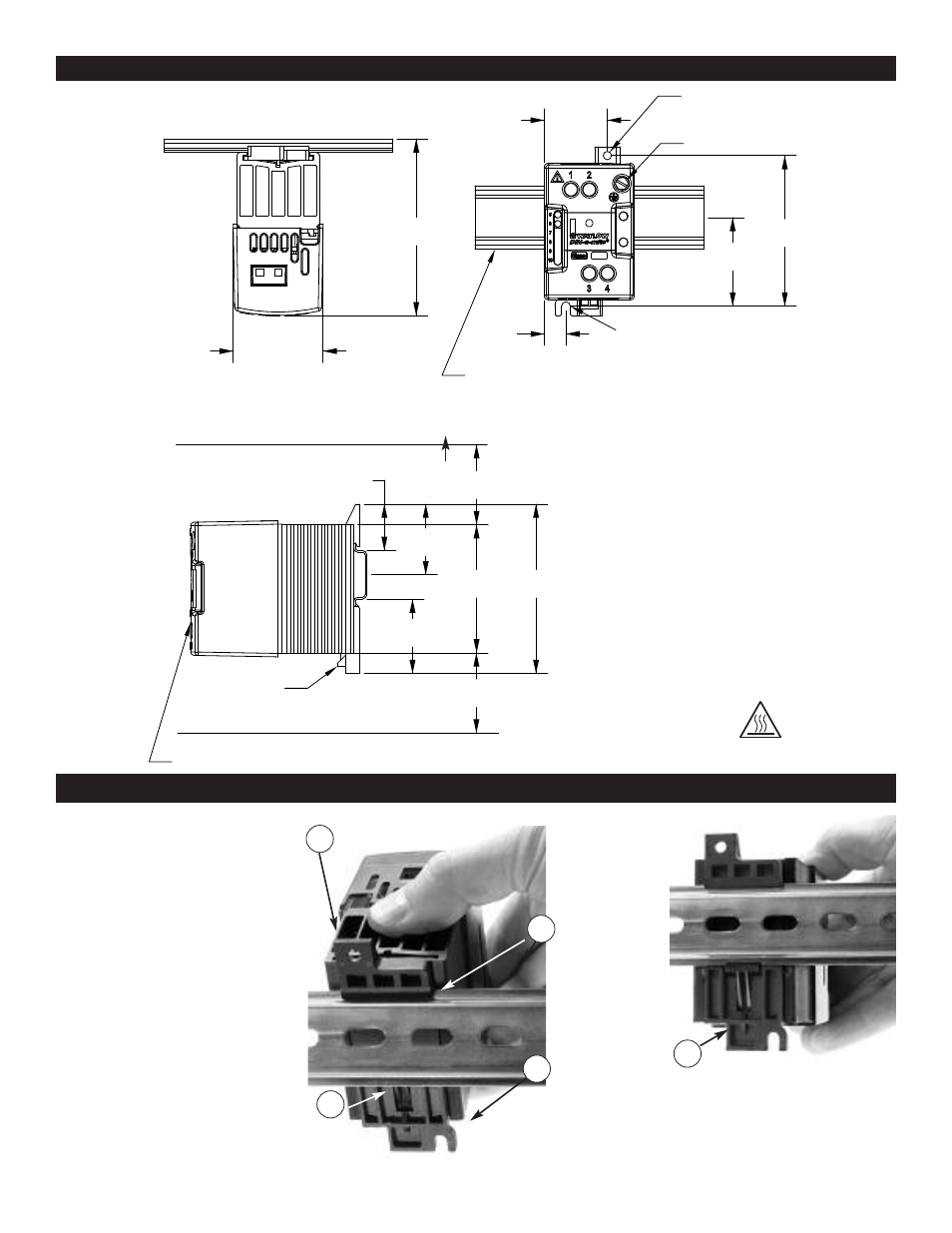

Unit Dimensions

Mounting and Dismounting

To dismount:

1. Press down on the re lease tab

while rotating the unit up and
away from the rail.

Mount the cooling fins
vertically. Failure to do so
may cause premature unit
failure.

WATLOW DIN-A-MITE Style A User's Guide
