BN4 - CHSS SERIES E N C L O S U R E S
N E M A 4 X JIC CONTINUOUS HINGE WALL-MOUNT
E8
F E AT U R E S - S P E C I F I C AT I O N S
Industry Standards
UL 50, Types 4, 4X, 12 & 13
CSA Certified, Types 4 & 12
NEMA/EEMAC Type 4, 4X, 12 & 13
JIC EL-1-71
UL File E6924, E64791
CSA File LL66078
CATALOG BACK PANEL
NUMBER
ENCLOSURE SIZE
CATALOG NUMBER*
BACK PANEL MOUNTING OVERALL
F G I J K N O P Q
304 SS / 316L SS
H X W X D
WHITE / 304 SS “G”
SIZE A X B C X E L x M
BN4060404CHSS 6.00x4.00x4.00 P0604 P0604G 4.88x2.88 6.75x2.00 7.50x5.00 3.53 4.31 3.00 0.56 1.38 2.38 3.53 6.31 2.78
BN4060404CHSSA (152x102x102) P0604SS ---- (124x73) (171x51) (191x127) (90) (109) (76) (14) (35) (60) (90) (160) (71)
BN4060604CHSS 6.00x6.00x4.00 P0606 P0606G 4.88x4.88 6.75x4.00 7.50x7.00 3.53 6.31 5.00 0.56 2.38 2.38 3.53 6.31 2.78
BN4060604CHSSA (152x152x102) P0606SS ---- (124x124) (171x102) (191x178) (90) (160) (127) (14) (60) (60) (90) (160) (71)
BN4080604CHSS 8.00x6.00x4.00 P0806 P0806G 6.88x4.88 8.75x4.00 9.50x7.00 3.53 6.31 5.00 0.56 2.38 3.38 3.53 8.31 2.78
BN4080604CHSSA (203x152x102) P0806SS ---- (175x124) (222x102) (241x178) (90) (160) (127) (14) (60) (86) (90) (211) (71)
BN4100804CHSS 10.00x8.00x4.00 P1008 P1008G 8.88x6.88 10.75x6.00 11.50x9.00 3.53 8.31 7.00 0.56 3.38 1.50 3.53 10.31 2.78
BN4100804CHSSA (254x203x102) P1008SS ---- (226x175) (273x152) (292x229) (90) (211) (178) (14) (86) (38) (90) (262) (71)
BN4121006CHSS 12.00x10.00x6.00 P1210 P1210G 10.88x8.88 12.75x8.00 13.50x11.00 5.53 10.31 9.00 0.56 2.00 3.00 5.53 12.31 4.78
BN4121006CHSSA (305x254x152) P1210SS ---- (276x226) (324x203) (343x279) (141) (262) (229) (14) (51) (76) (141) (313) (121)
BN4121206CHSS 12.00x12.00x6.00 P1212 P1212G 10.88x10.88 12.75x10.00 13.50x13.00 5.53 12.31 11.00 0.56 2.50 2.50 5.53 12.31 4.78
BN4121206CHSSA (305x305x152) P1212SS ---- (276x276) (324x254) (343x330) (141) (313) (279) (14) (64) (64) (141) (313) (121)
BN4141206CHSS 14.00x12.00x6.00 P1412 P1412G 12.88x10.88 14.75x10.00 15.50x13.00 5.53 12.31 11.00 0.56 2.00 3.00 5.53 14.31 4.78
BN4141206CHSSA (356x305x152) P1412SS ---- (327x276) (375x254) (394x330) (141) (313) (279) (14) (51) (76) (141) (364) (121)
BN4161406CHSS 16.00x14.00x6.00 P1614 P1614G 14.88x12.88 16.75x12.00 17.50x15.00 5.53 14.31 13.00 0.56 3.50 1.50 5.53 16.31 4.78
BN4161406CHSSA (406x356x152) P1614SS ---- (378x327) (425x305) (445x381) (141) (363) (330) (14) (89) (38) (141) (414) (121)
B N 4 - C H S S S E R I E S J I C C O N T I N U O U S H I N G E S TA I N L E S S E N C L O S U R E S
*Back panels must be ordered separately.
In order to purchase conductive panels, please add a “G” suffix to the white panel part numbers.
• Sealed with poured in place
polyurethane gasket
• External mounting feet
• Weldnuts are provided on models
6.00" x 4.00" and larger to secure
optional back panel
• Stainless steel screws and clamps,
equal to enclosure construction, on
three sides of cover assure water-
tight seal
• Door removed by pulling stainless
steel continuous hinge pin
• Grounding provisions provided
• Optional panels and terminal kits
must be ordered separately
Finish
• Cover and outside of enclosure
have a smooth grained finish
• Optional back panels are offered in
a white polyester powder, grained
finish stainless steel or with a con-
ductive finish (See page I2)
• Optional “G” panels have a con-
ductive finish (See page I2)
Accessories
• Back panels (reference tables)
• See pages J1-J22

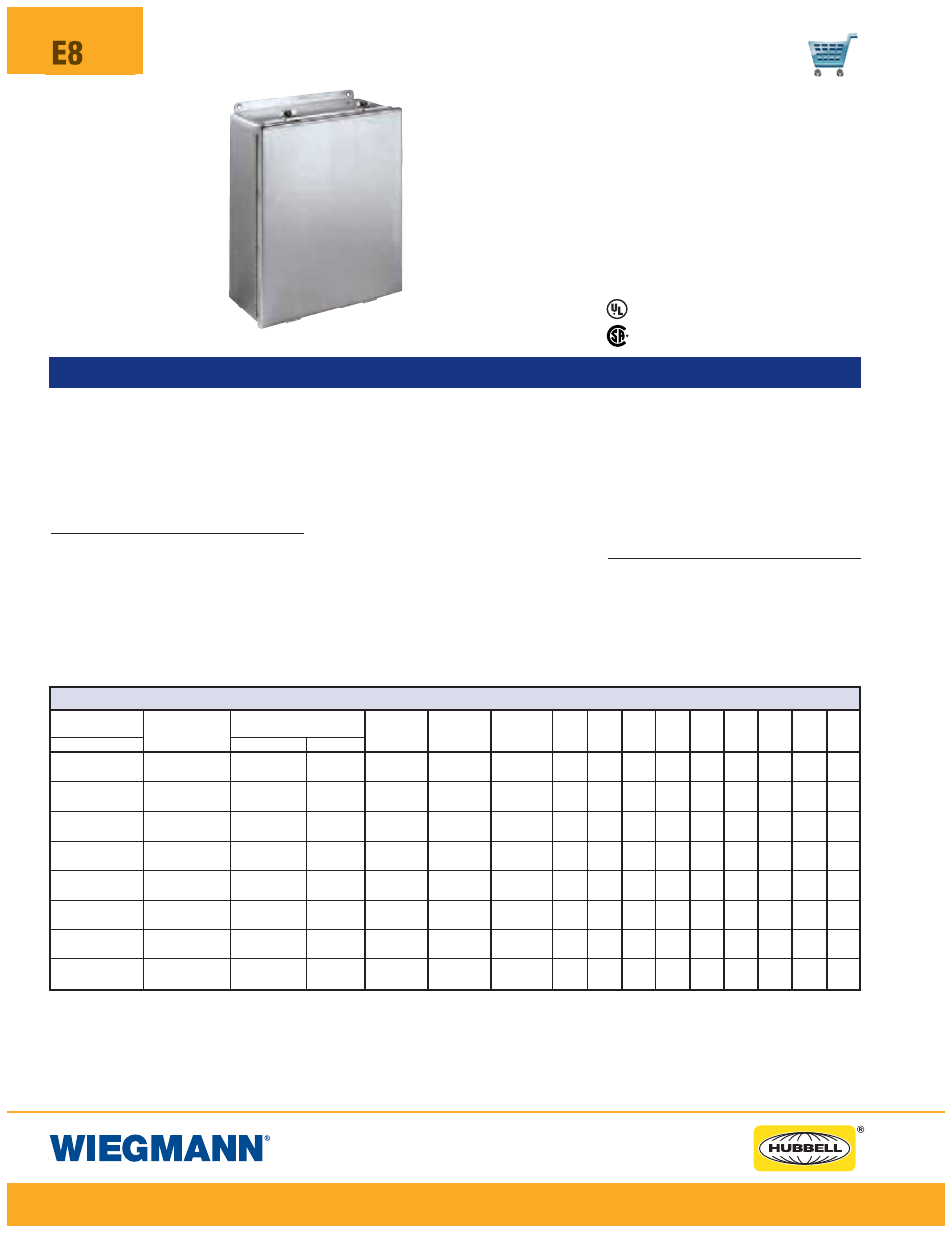

BN4141206CHSS
Applications
Provides unmatched protection for
housing electrical components in
highly corrosive environments. This
enclosure is used in indoor and out-
door settings that are frequently wet
or have constant exposure to water,
other liquids, or contaminants.
Construction
• Bodies and doors fabricated from
16 gauge type 304 stainless steel or
16 gauge type 316L stainless steel
• Suffix “A” = 16 gauge type 316L
stainless steel
• Continuously welded seams ground
smooth, less knockouts or holes
