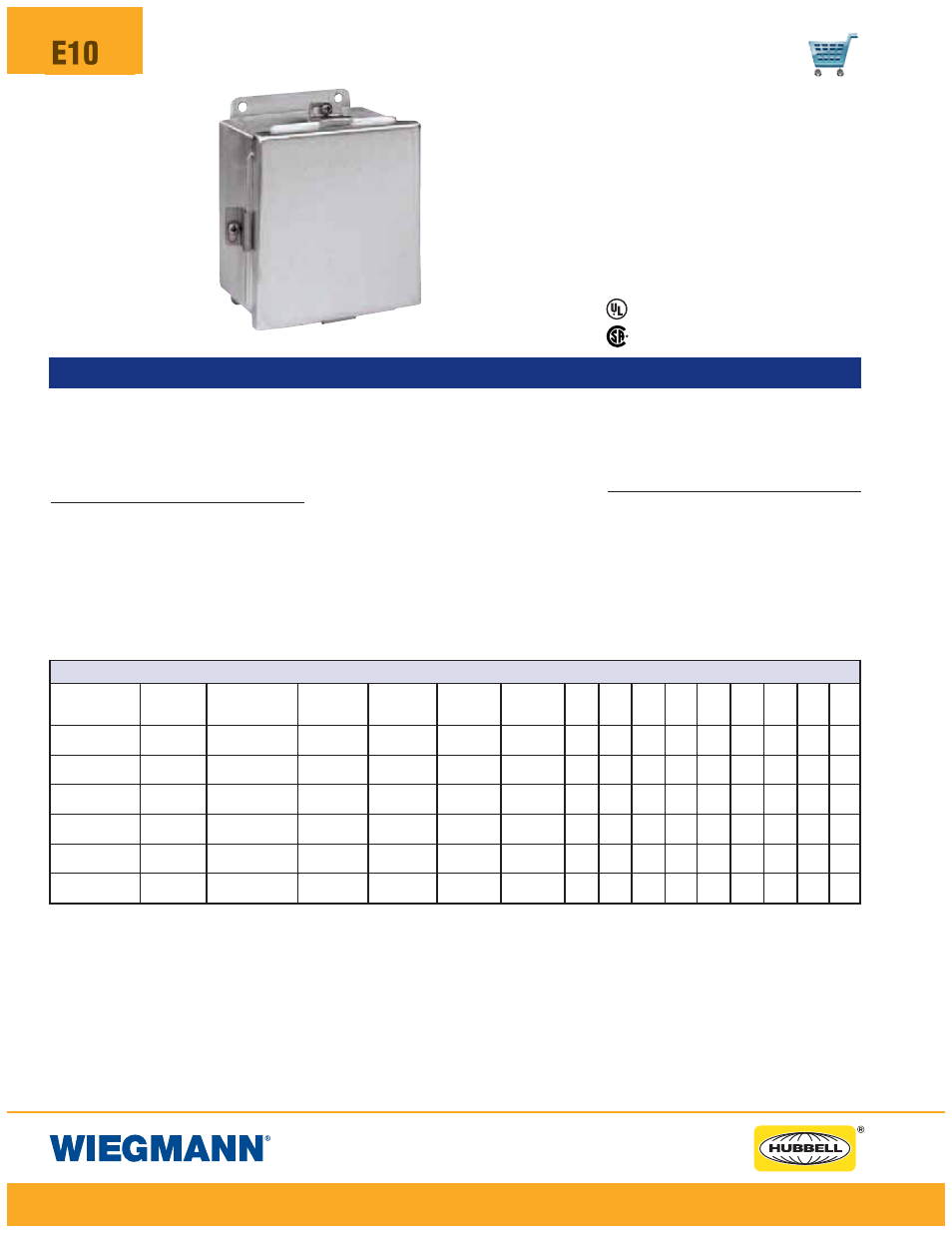

B N 4 - A L S E R I E S E N C L O S U R E S
N E M A 4 L I F T O F F C O V E R W A L L - M O U N T
E10
F E AT U R E S - S P E C I F I C AT I O N S
Industry Standards
UL 50, Types 4, 4X, 12 & 13
CSA Certified, Types 4 & 12
NEMA/EEMAC Type 4, 4X, 12 & 13
JIC EL-1-71
UL File E6924, E23553
CSA File LL66078 BN4060604AL
Applications
Designed as an instrument housing or
junction box for electrical, electronic,
or pneumatic components. It is ideal
for applications where a lightweight,
corrosion resistant enclosure is required.
Construction
• Bodies and doors fabricated from
.080-inch thick (2 millimeters)
5052-H32 aluminum
• Continuously welded seams ground
smooth, less holes or knockouts
BODY/DOOR BACK PANEL
CATALOG
ALUMINUM
ENCLOSURE SIZE
CATALOG
BACK PANEL MOUNTING OVERALL
F G I J K N O P Q
NUMBER
GAUGE
H X W X D
NUMBER*
SIZE A X B C X E L X M
BN4060604AL 14/14
6.00x6.00x4.00
P0606
4.88x4.88 6.75x4.00 7.50x7.63 3.53 6.31 5.00 0.56 2.38 2.38 3.53 0.63 6.31
(152x152x102) (124x124) (171x102) (191x194) (90) (160) (127) (14) (60) (60) (90) (16) (160)
BN4080603AL 14/14
8.00x6.00x3.50
P0806
6.88x4.88 8.75x4.00 9.50x7.63 3.03 6.31 5.00 0.56 2.38 3.38 3.03 0.63 8.31
(203x152x89) (175x124) (222x102) (241x194) (77) (160) (127) (14) (60) (86) (77) (16) (211)
BN4100804AL 14/14
10.00x8.00x4.00
P1008
8.88x6.88 10.75x6.00 11.50x9.63 3.53 8.31 7.00 0.56 3.38 1.50 3.53 0.63 10.31
(254x203x102) (226x175) (273x152) (292x244) (90) (211) (178) (14) (86) (38) (90) (16) (262)
BN4121005AL 14/14
12.00x10.00x5.00
P1210
10.88x8.88 12.75x8.00 13.50x11.63 4.53 10.31 9.00 0.56 2.00 3.00 4.53 0.63 12.31
(305x254x127) (276x226) (324x203) (343x295) (115) (262) (229) (14) (51) (76) (115) (16) (313)
BN4141206AL 14/14
14.00x12.00x6.00
P1412
12.88x10.88 14.75x10.00 15.50x13.63 5.53 12.31 11.00 0.56 2.00 3.00 5.53 0.63 14.31
(356x305x152) (327x276) (375x254) (394x346) (141) (313) (279) (14) (51) (76) (141) (16) (364)
BN4161406AL 14/14
16.00x14.00x6.00
P1614
14.88x12.88 16.75x12.00 17.50x15.63 5.53 14.31 13.00 0.56 3.50 1.50 5.53 0.63 16.31
(406x356x152) (378x327) (425x305) (445x397) (141) (363) (330) (14) (89) (38) (141) (16) (414)
B N 4 - C H S E R I E S C L A M P C O V E R A L U M I N U M E N C L O S U R E S
• Closed cell oil resistant neoprene
gasket
• External mounting plate, top and
bottom of enclosure
• Weldnuts are provided on Models
6.00" x 4.00" and larger to secure
optional panel
• Stainless steel screws and clamps
on four sides of cover to assure
water tight seal
• Optional panels and terminal kits
must be ordered separately
• Grounding provisions provided
Finish
• Exterior and doors of enclosures
have a smooth grained finish
• Optional back panels are white
polyester powder
Accessories
• Back panels (reference tables)
• See pages J1-J22
*Back panels must be ordered separately
