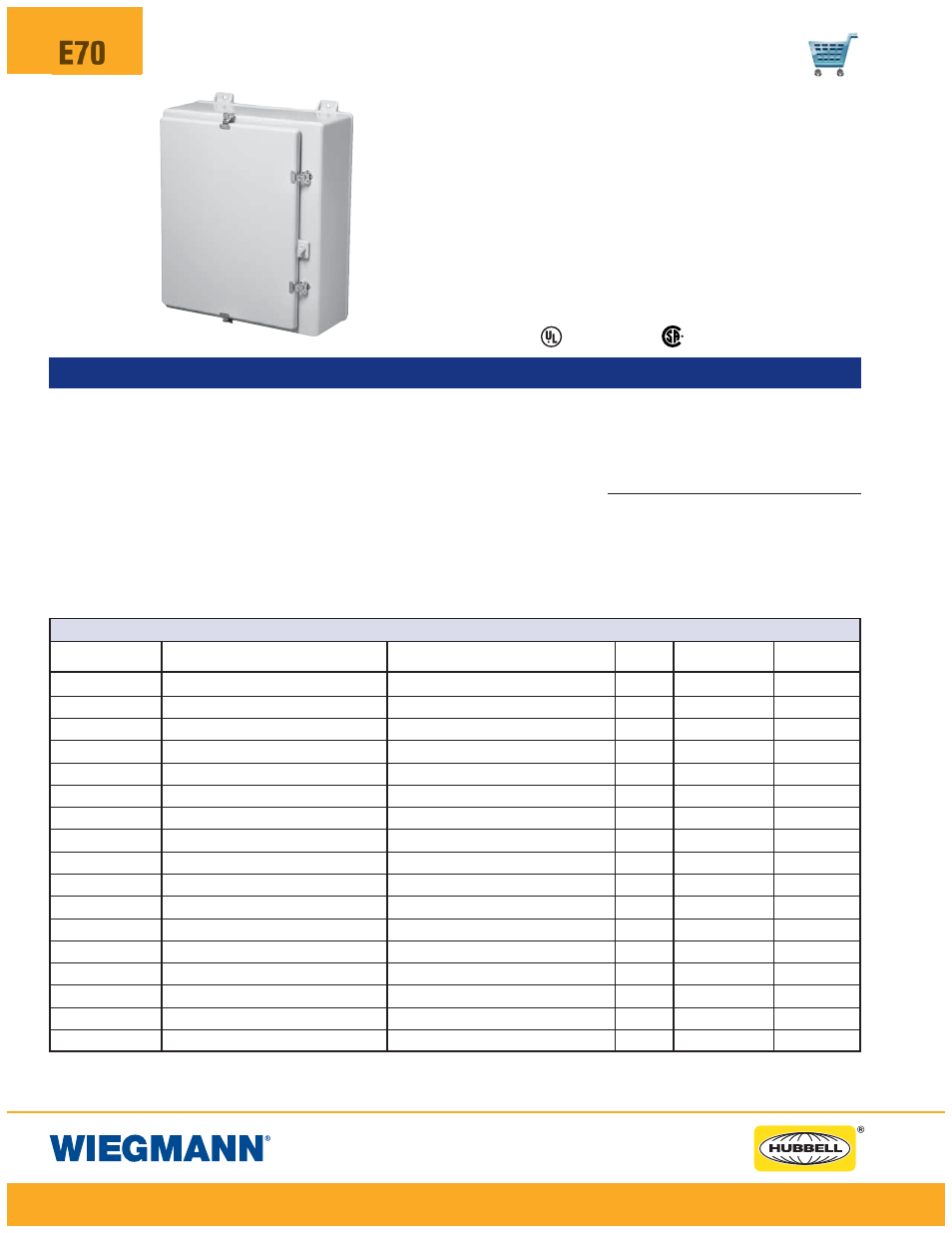

C O N T R O L S E R I E S N O N - M E TA L L I C E N C L O S U R E S
N E M A T Y P E 4 X , H I N G E D C O V E R W I T H T W I S T- L O C K L AT C H E S
E70
F E AT U R E S - S P E C I F I C AT I O N S
Construction
• Hot compression molded fiberglass
reinforced polyester
• Poured polyurethane seamless
gasket provides watertight, dust-
tight environmental seal
• 300 Series stainless steel used on
all external hardware
• Panel mounting capability for fixed
rear panel
Industry Standards
• UL/cUL 50/508, Types 1, 3, 3R, 4X, 12
• CSA Standard C22.2 Types 1, 3, 3R, 4x, 12
• NEMA Standard 250 Types 1, 3, 3R, 4x, 12
• Temperature Range: -40°F to 250°F
(-40°C to 120°C)
• Flammability Rating: UL94-5V
• Non-flame propagating
• Bosses with threaded brass inserts
accept 3/8 - 16 screws
• Integral mounting feet
• Rounded edges, minimal protru-
sions or exposed pocket areas for
accumulation of dust or debris
• Dust-tight, watertight, non-corrosive
environmental design
• Twist lock latches for easy entry
• Built-in padlock hasp
• Non-conductive, impact resistant,
UV resistant
• Smooth surface, no color variations,
swirls or color pockets, no voids
• Color: Gray
Accessories
• See pages E77-E79
HW-N4X242008CH
PART NUMBER ENCLOSURE OVERALL SIZE HxWxD ENCLOSURE INSIDE AxBxC WT.
CARBON STEEL
SUBPANEL
ALUMINUM
SUBPANEL
N E M A 4 X C O N T R O L E N C L O S U R E S W I T H T W I S T- L O C K L AT C H E S
Note: Subpanels must be ordered separately. Dimensions in inches (millimeters).
* No Hasp provided.
18.75 x 10.96 x 9.03 (476 x 278 x 229) 15.92 x 10.27 x 8.53 (404 x 261 x 217) 12 lbs. HW-WM1610CS HW-WM1610A
HW-N4X201612CH 22.75 x 16.87 x 13.77 (578 x 429 x 350) 19.70 x 16.04 x 13.24 (500 x 407 x 336) 24 lbs. HW-WM2016CS HW-WM2016A
HW-N4X241206CH 26.95 x 13.72 x 7.98 (685 x 348 x 203) 24.00 x 12.87 x 7.33 (610 x 327 x 186) 21 lbs HW-WM2412CS HW-WM2412A
HW-N4X241210CH 26.95 x 13.72 x 11.99 (685 x 348 x 304) 24.00 x 12.87 x 11.33 (610 x 327 x 288) 25 lbs. HW-WM2412CS HW-WM2412A
HW-N4X242008CH 27.00 x 21.24 x 9.90 (686 x 539 x 252) 24.05 x 20.39 x 9.25 (611 x 518 x 235) 32 lbs. HW-WM2420CS HW-WM2420A
HW-N4X242410CH 27.00 x 25.24 x 11.90 (686 x 641 x 302) 24.05 x 24.39 x 11.25 (611 x 619 x 286) 42 lbs HW-WM2424CS HW-WM2424A
HW-N4X242412CH 27.00 x 25.24 x 13.90 (686 x 641 x 353) 24.05 x 24.39 x 13.25 (611 x 619 x 336) 43 lbs HW-WM2424CS HW-WM2424A
HW-N4X302006CH 32.86 x 20.99 x 7.89 (835 x 533 x 200) 29.90 x 20.14 x 7.23 (760 x 511 x 184) 34 lbs. HW-WM3020CS HW-WM3020A
HW-N4X302008CH 32.86 x 20.99 x 9.89 (835 x 533 x 251) 29.90 x 20.14 x 9.23 (760 x 511 x 234) 36 lbs. HW-WM3020CS HW-WM3020A
HW-N4X302010CH 32.86 x 20.99 x 11.89 (835 x 533 x 302) 29.90 x 20.14 x 11.23 (760 x 511 x 285) 39 lbs. HW-WM3020CS HW-WM3020A
HW-N4X302012CH 32.86 x 20.99 x 13.89 (835 x 533 x 353) 29.90 x 20.14 x 13.23 (760 x 511 x 336) 48 lbs. HW-WM3020CS HW-WM3020A
HW-N4X302408CH 33.41 x 26.32 x 8.81 (849 x 668 x 224) 30.46 x 25.47 x 8.12 (774 x 647 x 206) 45 lbs. HW-WM3024CS HW-WM3024A
HW-N4X302410CH 33.41 x 26.32 x 11.95 (849 x 668 x 304) 30.46 x 25.47 x 11.27 (774 x 647 x 286) 50 lbs. HW-WM3024CS HW-WM3024A
HW-N4X302412CH 33.41 x 26.32 x 13.79 (849 x 668 x 350) 30.46 x 25.47 x 13.10 (774 x 647 x 333) 54 lbs. HW-WM3024CS HW-WM3024A
HW-N4X363008CH 39.31 x 32.50 x 10.05 (999 x 826 x 255) 36.31 x 31.69 x 9.36 (922 x 805 x 238) 75 lbs. HW-WM3630CS HW-WM3630A
HW-N4X363010CH 39.31 x 32.50 x 12.05 (999 x 826 x 306) 36.31 x 31.69 x 11.36 (922 x 805 x 289) 78 lbs. HW-WM3630CS HW-WM3630A
HW-N4X363012CH 39.31 x 32.50 x 14.05 (999 x 826 x 357) 36.31 x 31.69 x 13.36 (922 x 805 x 339) 81 lbs. HW-WM3630CS HW-WM3630A
HW-N4X161007CH*
U L F i l e E 6 4 7 9 1 C S A F i l e 2 2 2 8 7 3
