P B S S S E R I E S E N C L O S U R E S
N E M A 1 2 , 4 & 4 X ( 3 0 . 5 M M ) P U S H B U T T O N W A L L - M O U N T
E2
F E AT U R E S - S P E C I F I C AT I O N S
Applications
Designed to hold all standard brands
of pushbuttons, switches and pilot lights.
Provide protection from dust, dirt,
oil and water. PBSS Series designed
for areas where serious corrosion
problems exist.
Construction
• Bodies and doors fabricated from 14
gauge 304 or 316L stainless steel
• Continuously welded seams ground
smooth
• Closed cell oil resistant neoprene
gasket
Industry Standards
UL 508, Types 4, 4X, 12 & 13
CSA Certified, Type 4, 4X & 12
NEMA/EEMAC Type 4, 4X, 12 & 13
UL File E64791
CSA File LL66078
CATALOG NUMBER BODY/DOOR ENCLOSURE SIZE MOUNTING OVERALL
F I A B
304 SS 316L SS STEEL GAUGE H X W X D C X E L X M
PBSS1 PBSS1A 14/14
3.50x3.25x2.81 2.38x4.00 4.50x3.56 3.00 2.41 1.78 1.88
(89x83x71) (60x102) (114x90) (76) (61) (45) (48)
PBSS2 PBSS2A 14/14
5.75x3.25x2.81 2.38x6.25 6.75x3.56 3.00 2.41 1.78 1.88
(146x83x71) (60x159) (171x90) (76) (61) (45) (48)
PBSS3 PBSS3A 14/14
8.00x3.25x2.81 2.38x8.50 9.00x3.56 3.00 2.41 1.78 1.88
(203x83x71) (60x216) (229x90) (76) (61) (45) (48)
PBSS4 PBSS4A 14/14
10.25x3.25x2.81 2.38x10.75 11.25x3.56 3.00 2.41 1.78 1.88
(260x83x71) (60x273) (286x90) (76) (61) (45) (48)
PBSS6 PBSS6A 14/14
9.50x6.25x3.09 5.38x10.00 10.50x6.56 6.00 2.69 2.16 2.63
(241x159x79) (137x254) (267x167) (152) (68) (55) (67)
PBSS9 PBSS9A 14/14
9.50x8.50x3.09 7.63x10.00 10.50x8.81 8.25 2.69 2.16 2.63
(241x216x79) (194x254) (267x224) (210) (68) (55) (67)
PBSS12 PBSS12A 14/14
11.75x8.50x3.09 7.63x12.25 12.75x8.81 8.25 2.69 2.16 2.63
(298x216x79) (194x311) (324x224) (210) (68) (55) (67)
P B S S S E R I E S ( 3 0 . 5 M M ) P U S H B U T T O N E N C L O S U R E S
• External mounting plates, top and
bottom of enclosure
• Captivated cover screws thread
into sealed wells
• Standard “4-way” pushbutton holes
accept all brands of oil-tight push
buttons, switches and pilot lights
• Enclosures 9.50" x 6.25" x 3.00"
and larger have internal detachable
hinges to hold cover open during
wiring, yet permit quick removal
• Grounding provisions provided
Finish
• Cover and outside of enclosure
have a smooth grained finish
Accessories
• See pages H16-H27 for Painted
Gray PB Series
• See page J4 for hole seals

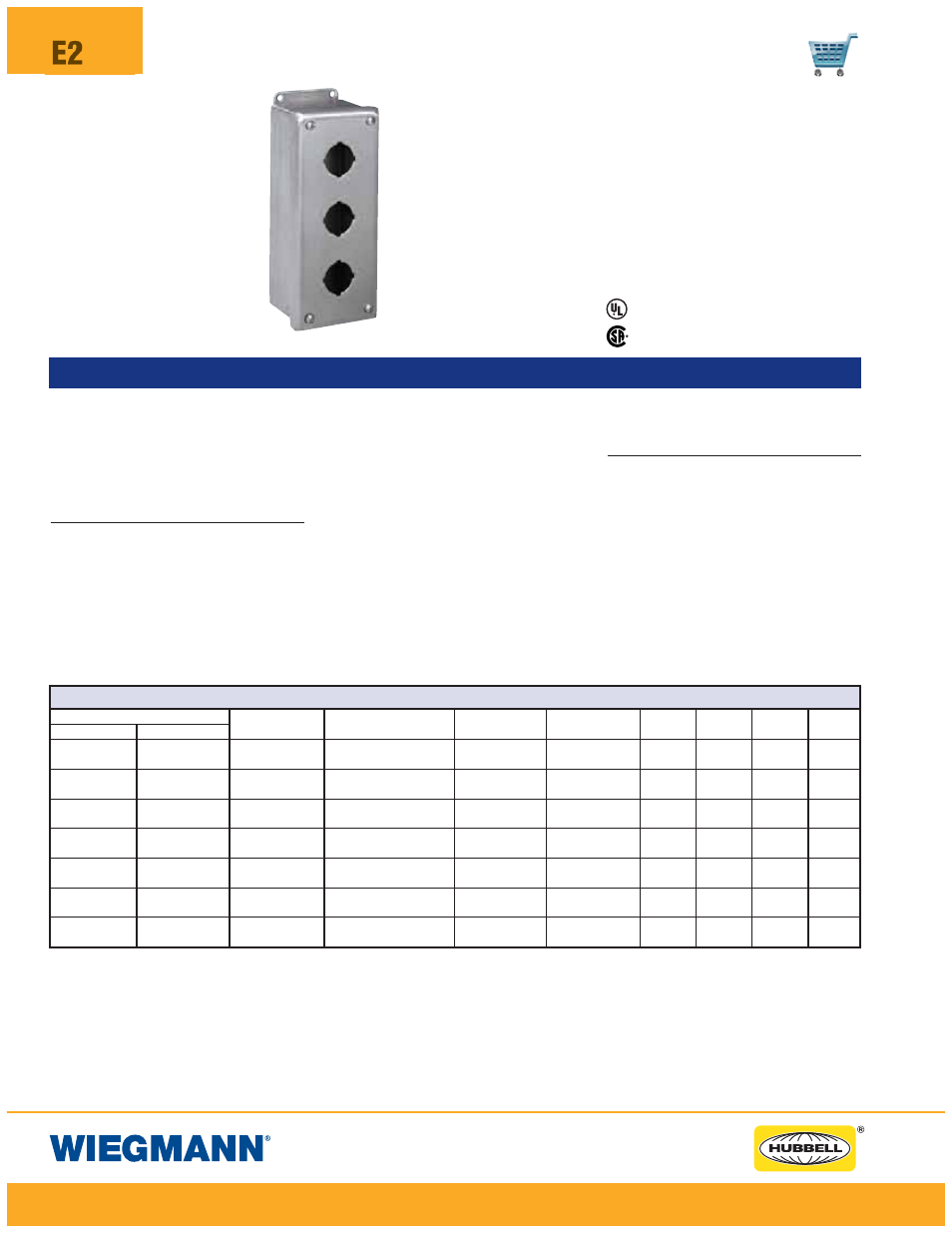

PBSS3
