P B X D - S S S E R I E S E N C L O S U R E S
N E M A 4 , 4 X , 1 2 & 1 3 ( 3 0 . 5 M M ) P U S H B U T T O N W A L L - M O U N T
E4
F E AT U R E S - S P E C I F I C AT I O N S
Applications
Designed to hold 30.5mm oil-tight
pushbuttons, switches, and pilot
lights. Provide protection against dirt,
dust, oil, and water. Extra deep
design accommodates additional
contact blocks for pushbuttons.
Construction
• Bodies and doors fabricated from
14 gauge 304 stainless steel
• Continuously welded seams ground
smooth
• Closed cell oil resistant neoprene
gasket
UL File E64791
CSA File LL66078
CATALOG BODY/DOOR ENCLOSURE SIZE MOUNTING OVERALL
F I A B
NUMBER STEEL GAUGE H X W X D E X C L X M
PBXD1SS 14/14
4.00x4.00x4.81 3.13x4.50 5.00x4.31 3.75 4.41 2.19 2.16
(102x102x122) (79x114) (127x110) (95) (112) (56) (55)
PBXD2SS 14/14
6.00x4.00x4.81 3.13x6.50 7.00x4.31 3.75 4.41 2.19 2.03
(152x102x122) (79x165) (178x110) (95) (112) (56) (52)
PBXD3SS 14/14
8.00x4.00x4.81 3.13x8.50 9.00x4.31 3.75 4.41 2.19 1.97
(203x102x122) (79x216) (229x110) (95) (112) (56) (50)
PBXD4SS 14/14
10.00x4.00x4.81 3.13x10.50 11.00x4.31 3.75 4.41 2.19 1.78
(254x102x122) (79x267) (279x110) (95) (112) (56) (45)
PBXD16SS 14/14
11.75x10.75x4.81 9.88x12.25 12.75x11.06 11.50 4.41 2.19 2.61
(298x273x122) (251x311) (324x281) (292) (112) (56) (66)
P B X D - S S S E R I E S S TA I N L E S S P U S H B U T T O N E N C L O S U R E S
• External mounting plates, top and
bottom of enclosure
• Captivated cover screws thread
into sealed wells
• Standard “4-way” pushbuttons
holes accept all brands of oil-tight
push buttons, switches and pilot
lights
• 6.00" x 4.00" x 4.75" and larger
have internal detachable hinges to
hold cover open during wiring, yet
permit quick removal
• Grounding provisions provided
Finish
• Cover and outside of enclosure
have a smooth grained finish
Accessories
• See pages H16-H27 for
Painted Pushbutton enclosures
• See page J4 for hole seals

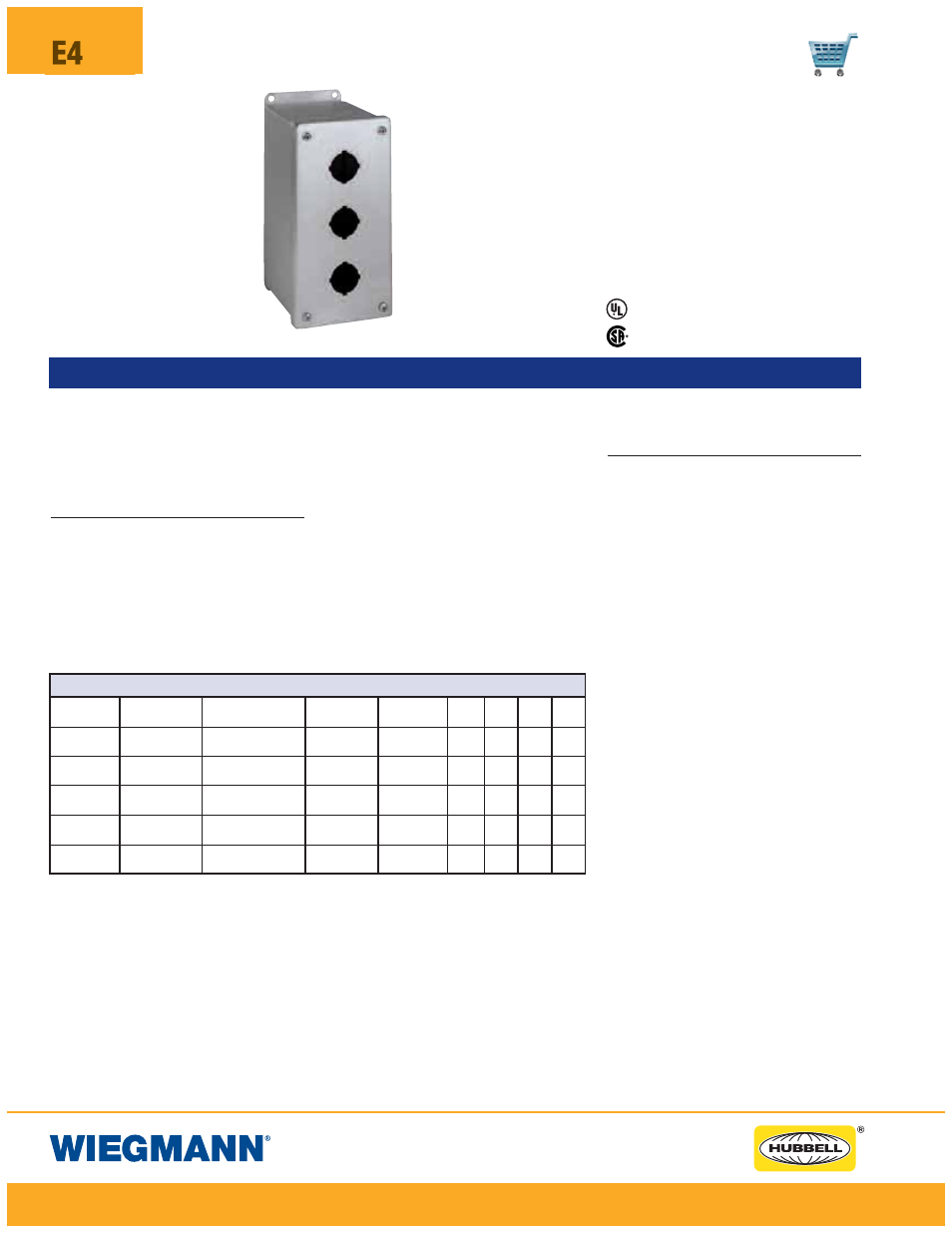

PBXD3SS
Industry Standards
UL 508, Types 4, 4X, 12 & 13
CSA Certified, Type 4, 4X & 12
NEMA/EEMAC Type 4, 4X, 12 & 13
JIC EL-1-71
