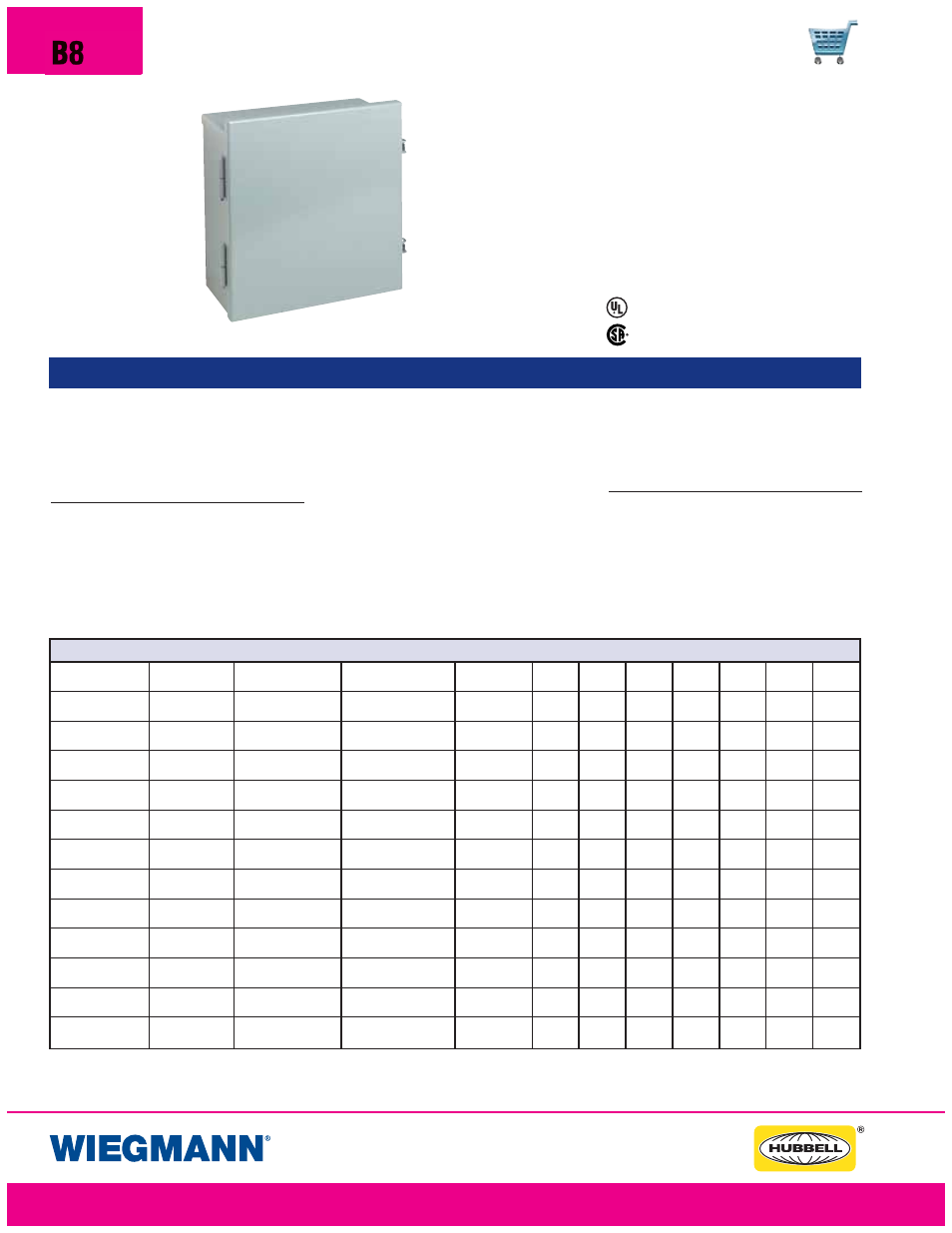

L O H S E R I E S E N C L O S U R E S
N E M A 3 R H I N G E C O V E R W A L L - M O U N T
B8
F E AT U R E S - S P E C I F I C AT I O N S
Applications
Designed for use as wiring box and
junction box. Provide protection in
outdoor installations against rain,
sleet, and snow, or indoors against
dripping water.
Construction
• Bodies and doors fabricated from
16 or 14 gauge carbon steel
(reference table)
• Drip shield top and seam-free
sides, front, and back
Industry Standards
UL 50, Types 1 & 3R
CSA Certified, Type 1 & 3R
NEMA/EEMAC Type 1 & 3R
U L F i l e E 6 9 2 4
C S A F i l e L L 6 6 0 7 8
CATALOG BODY/DOOR ENCLOSURE SIZE BACK PANEL BACK PANEL
C E F G H I J
NUMBER STEEL GAUGE H X W X D CATALOG NUMBER* SIZE A X B
L O H 0 8 0 6 0 4 * * 16/16
8.00x6.00x4.00
P 0 6 0 6
4.88x4.88 10.13 9.13 4.00 2.25 0.31 1.56 0.56
(203x152.00x102) (124x124) (257) (232) (102) (57) (8) (40) (14)
L O H 0 8 0 8 0 6 * * 16/16
8.00x8.00x6.00
P 0 8 0 6
6.88x4.88 10.13 9.13 4.00 2.25 0.31 1.56 1.56
(203x203.00x152) (175x124) (257) (232) (102) (57) (8) (40) (40)
L O H 1 0 0 8 0 6 16/16
10.00x8.00x6.00
P 0 8 0 8
6.88x6.88 12.13 11.13 4.00 2.25 0.31 1.56 0.56
(254x203x152) (174x174) (308) (283) (102) (57) (8) (40) (14)
L O H 1 2 1 0 0 6 16/16
12.00x10.00x6.00
P 1 0 1 0
8.88x8.88 14.13 13.13 4.00 2.25 0.31 1.56 0.56
(305x254x152) (226x226) (359) (334) (102) (57) (8) (40) (14)
L O H 1 2 1 2 0 6 16/16
12.00x12.00x6.00
P 1 2 1 0
10.88x8.88 14.13 13.13 4.00 2.25 0.31 1.56 1.56
(305x305x152) (276x226) (359) (334) (102) (57) (8) (40) (40)
L O H 1 6 1 2 0 6 16/16
16.00x12.00x6.00
P 1 4 1 2
12.88x10.88 18.13 17.13 4.00 2.25 0.31 1.56 0.56
(406x305x152) (327x175) (461) (435) (102) (57) (8) (40) (14)
L O H 1 6 1 6 0 6 14/14
16.00x16.00x6.00
N P 1 6 1 6
13.00x13.00 18.13 17.19 13.00 13.00 0.88 1.50 1.50
(406x406x152) (330x330) (461) (437) (330) (330) (22) (38) (38)
L O H 2 0 1 6 0 6 14/14
20.00x16.00x6.00
N P 2 0 1 6
17.00x13.00 22.19 21.19 13.00 13.00 0.88 1.50 1.50
(508x406x152) (432x330) (564) (538) (330) (330) (22) (38) (38)
L O H 2 0 2 0 0 8 14/14
20.00x20.00x8.00
N P 2 0 2 0
17.00x17.00 22.19 21.19 13.00 13.00 0.88 1.50 1.50
(508x508x203) (432x432) (564) (538) (330) (330) (22) (38) (38)
L O H 2 4 2 0 0 8 14/14
24.00x20.00x8.00
N P 2 4 2 0
21.00x17.00 26.19 25.19 13.00 13.00 0.88 1.50 1.50
(610x508x203) (533x432) (665) (640) (330) (330) (22) (38) (38)
L O H 2 4 2 4 0 8 14/14
24.00x24.00x8.00
N P 2 4 2 4
21.00x21.00 26.19 25.19 13.00 13.00 0.88 1.50 1.50
(610x610x203) (533x533) (665) (640) (330) (330) (22) (38) (38)
L O H 3 0 2 4 0 8 14/14
30.00x24.00x8.00
N P 3 0 2 4
27.00x21.00 32.19 21.19 13.00 13.00 0.88 1.50 1.50
(762x610x203) (686x533) (818) (538) (330) (330) (22) (38) (38)
L O H S E R I E S H I N G E C O V E R E N C L O S U R E S
* Back panels must be ordered separately. If a back panel is required, an optional panel mounting kit is required. See page B9.
** One draw pull catch.
Note: If mounting feet are required, an optional mounting foot kit is required. See page B9.
• Door is hinged on left side with lift
off hinges
• Stainless steel hinge pin
• No knockouts
• Mounting holes are provided on
back of enclosure
• Door fastened securely with draw
pull catch
• Provision for padlocking
• Grounding provisions provided
Finish
• ANSI-61 gray polyester powder
inside and out
• Optional back panels are white
polyester powder
Accessories
• Mounting feet kit (reference table,
see page B9)
• Back panels (reference table)
• For accessories see pages J1-J22
LOH121206
