R H C S E R I E S E N C L O S U R E S
“ M E D I U M ” N E M A 3 R H I N G E C O V E R W A L L - M O U N T
B6
F E AT U R E S - S P E C I F I C AT I O N S
Applications
Designed for use as wiring boxes and
junction boxes. Provide protection in
outdoor installations against rain,
sleet, and snow, or indoors against
dripping water.
Construction
• Bodies and doors fabricated from
14 gauge carbon steel
• Continuous hinge
• Hinge is made of galvanized steel
with a stainless steel pin
• No knockouts
• Collar studs provided for mounting
optional back panels
• External mounting plates, top and
bottom of enclosure
• Hasp and staple provided for
padlocking
• Grounding provisions provided
Finish
• ANSI-61 gray polyester powder
inside and out
• Optional back panels are white
polyester powder
• Optional perforated panels are
painted white polyester powder
(See pages I2-I7)
Accessories
• Back panels (reference tables)
• See pages J1-J22
Industry Standards
UL 508, Types 1 & 3R
CSA Certified, Type 1 & 3R
NEMA/EEMAC Type 1 & 3R
U L F i l e E 6 9 2 4
C S A F i l e L L 6 6 0 7 8

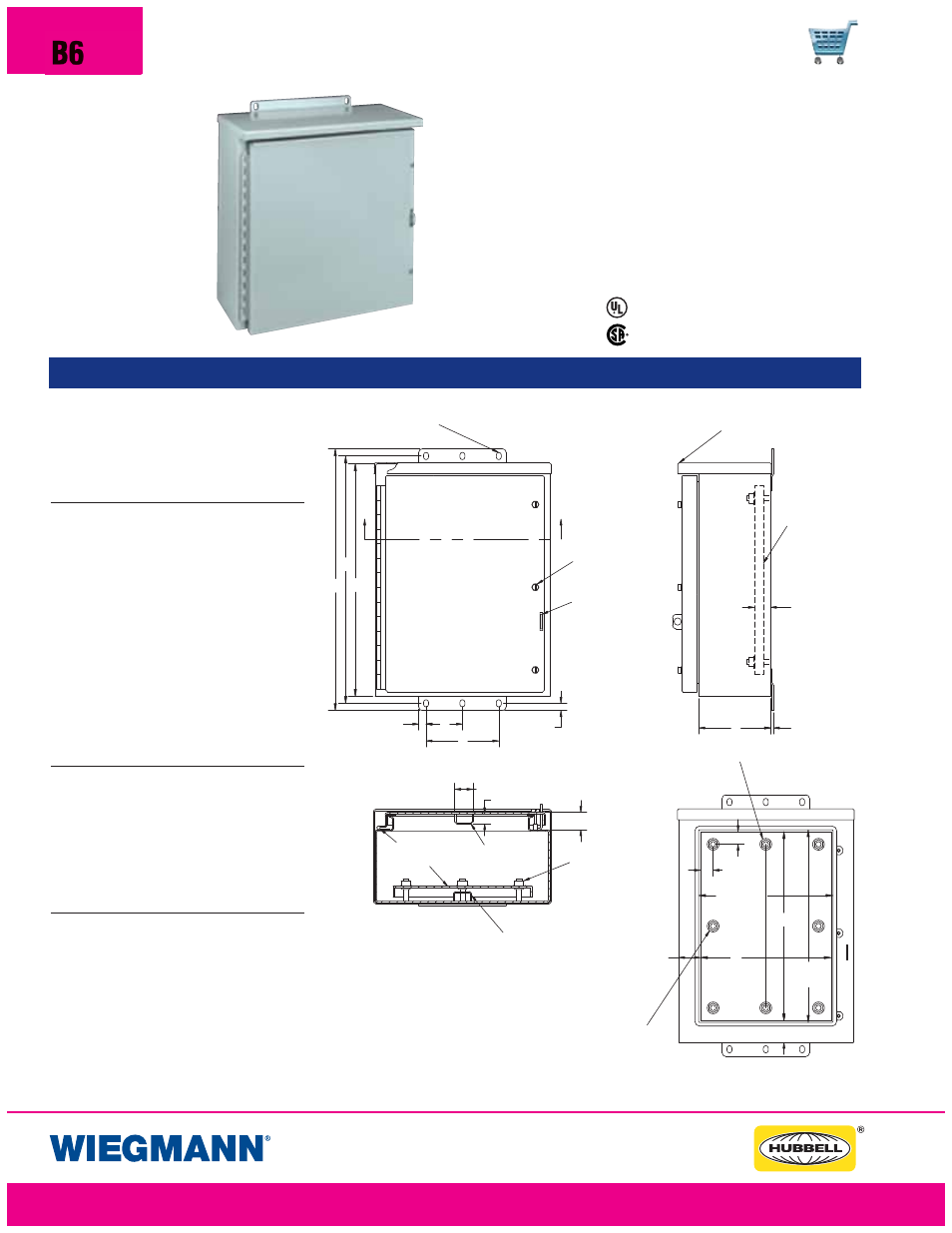

W-2.75
OPENING
H-2.75
OPENING
B
A
H
E
C
X X
F
0.50
TYP 0.50
TYP
0.31 X 0.56 SLOT
SEE NOTE 1
OMIT MIDDLE
DOOR SCREW IF
H < 30.00"
PADLOCKING
HASP
D
1.09
PANEL
ORDER SEPARATELY
DRIP SHIELD
1.50
1.50
0.88
0.88
OMIT MIDDLE
STUD IF W = 30.00"
OR LESS
OMIT MIDDLE
STUD IF H = 30.00"
OR LESS
VIEW WITH
COVER REMOVED
3/8 - 16
COLLAR STUD
OMIT BODY STIFFENER
IF H < 30.00"
CONTINUOUS
HINGE
SECTION X-X
DOOR
STIFFENER
1.16
12 GA.
1.25
0.69
NOTES:
1. RHC303012 & larger have a 0.38 X 0.63
mounting slot.
0.27
G
RHC161606
