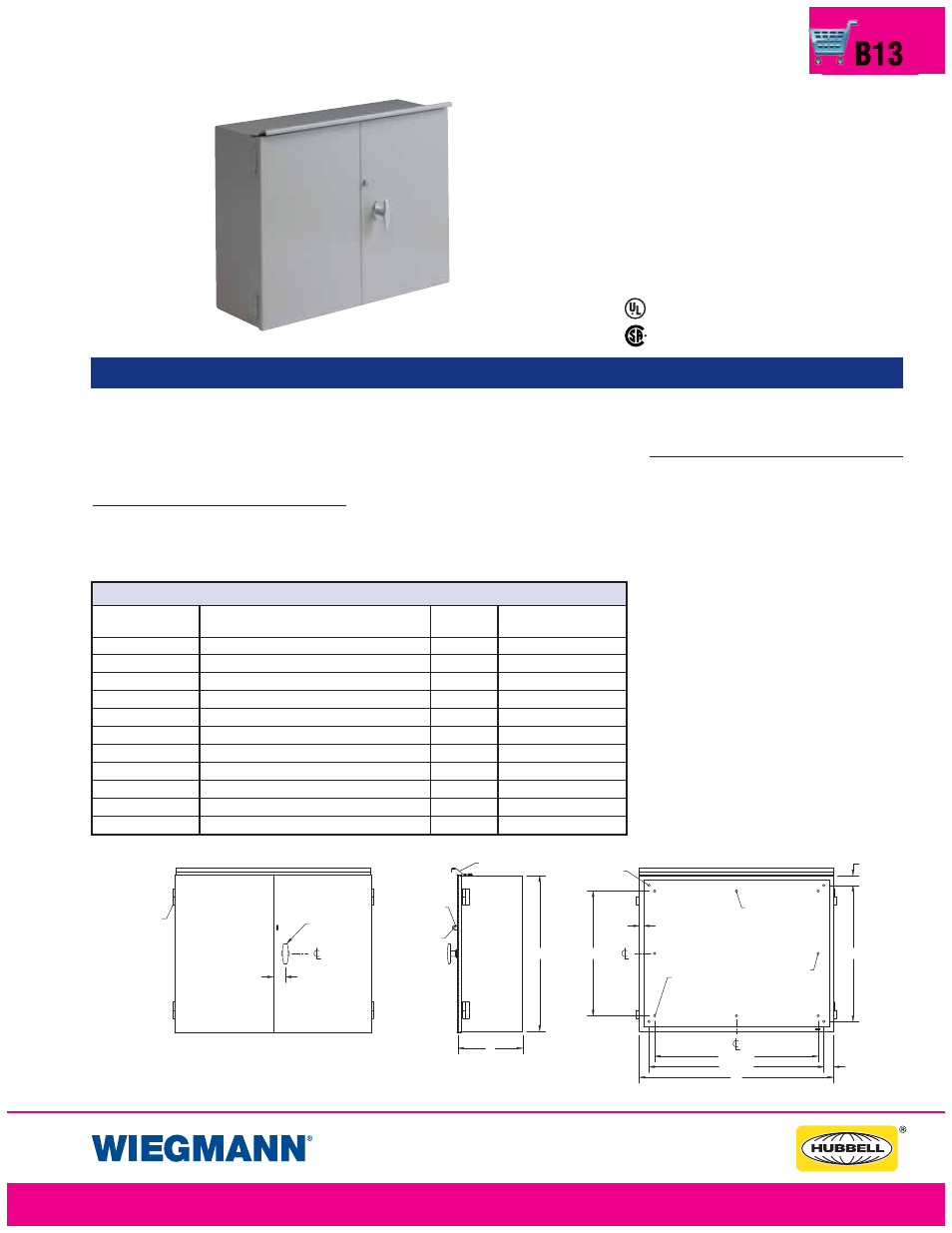

C T S E R I E S E N C L O S U R E S
N E M A 3 R D O U B L E D O O R H I N G E C O V E R
B13
F E AT U R E S - S P E C I F I C AT I O N S
Applications
Enclosures are designed as a housing
for current and voltage transformers,
recorders, meters, junction, service
box, relay and/or for terminal instru-
mentation.
Construction
• Manufactured from 14 and 12
gauge carbon steel
Industry Standards
UL Listed Type 3R
U L F i l e E 2 3 5 5 3
C S A F i l e L L 6 6 0 7 8
CATALOG ENCLOSURE SIZE BODY PANEL
NUMBER H X W X D GAUGE CATALOG NUMBER
C T D D 3 0 2 4 1 0 2 4 . 0 0 x 3 0 . 0 0 x 1 0 . 0 0 ( 6 1 0 x 7 6 2 x 2 5 4 ) 1 4 W B P 3 0 2 4
C T D D 3 0 3 0 1 2 3 0 . 0 0 x 3 0 . 0 0 x 1 2 . 0 0 ( 7 6 2 x 7 6 2 x 2 5 4 ) 1 2 W B P 3 0 3 0 D D
C T D D 3 0 3 6 1 2 3 6 . 0 0 x 3 0 . 0 0 x 1 2 . 0 0 ( 9 1 4 x 7 6 2 x 2 5 4 ) 1 2 W B P 3 6 3 0
C T D D 3 6 2 4 1 2 2 4 . 0 0 x 3 6 . 0 0 x 1 2 . 0 0 ( 6 1 0 x 9 1 4 x 2 5 4 ) 1 4 W B P 3 6 2 4
C T D D 3 6 3 0 1 2 3 0 . 0 0 x 3 6 . 0 0 x 1 2 . 0 0 ( 7 6 2 x 9 1 4 x 2 5 4 ) 1 2 W B P 3 6 3 0
C T D D 3 6 3 2 1 2 3 2 . 0 0 x 3 6 . 0 0 x 1 2 . 0 0 ( 8 1 3 x 9 1 4 x 2 5 4 ) 1 2 W B P 3 2 3 6 D D
C T D D 3 6 3 6 1 2 3 6 . 0 0 x 3 6 . 0 0 x 1 2 . 0 0 ( 9 1 4 x 9 1 4 x 2 5 4 ) 1 2 W B P 3 6 3 6 D D
C T D D 3 6 3 6 1 6 3 6 . 0 0 x 3 6 . 0 0 x 1 6 . 0 0 ( 9 1 4 x 9 1 4 x 4 0 6 ) 1 2 W B P 3 6 3 6 D D
C T D D 4 4 3 0 1 2 3 0 . 0 0 x 4 4 . 0 0 x 1 2 . 0 0 ( 7 6 2 x 1 1 1 8 x 3 0 5 ) 1 2 W B P 3 0 4 4 D D
C T D D 4 2 4 2 1 2 4 2 . 0 0 x 4 2 . 0 0 x 1 2 . 0 0 ( 1 0 6 7 x 1 0 6 7 x 3 0 5 ) 1 2 W B P 4 2 4 2 D D
C T D D 4 8 4 8 1 6 4 8 . 0 0 x 4 8 . 0 0 x 1 6 . 0 0 ( 1 2 1 9 x 1 2 1 9 x 4 0 6 ) 1 2 W B P 4 8 4 8 D D
C T S E R I E S D O U B L E D O O R H I N G E C O V E R E N C L O S U R E S
• Fully seam welded and ground
smooth, with weep hole
• Drip shield
• Lift off hinges, gasketed doors
• Supplied with non-locking “T”
handle
• Meter seal provisions
• Mounting holes in back
• Supplied with studs in back of
enclosure to support optional wood
sub panel
Finish
• ANSI 61 polyester powder inside
and out
CTDD363612
1.50
FRONT VIEW
(WITH COVER REMOVED)
LIFT-OFF
HINGES
1/4 TURN
3-POINT
TEE
HANDLE
1.88
DRIP SHIELD
ø 0.37 HOLE
FOR PAD-
LOCKING
ø 0.13 HOLE
FOR METER
SEAL
D
H
ø 0.38 TYP.
MOUNTING
HOLES
FLANGE
0.66 TYP.
H-4.75
3/8-16 PANEL
STUD TYP.
(PANEL NOT
INCLUDED)
OMIT MIDDLE
STUDS IF
W < 31.00
OMIT MIDDLE
STUDS IF
H < 31.00
1.50
H-3.00
W-4.75
W-3.00
W
NOTE: Second numerical value of catalog # represents height.
